IC698CPE040
May 11, 2026

IC698CPE040

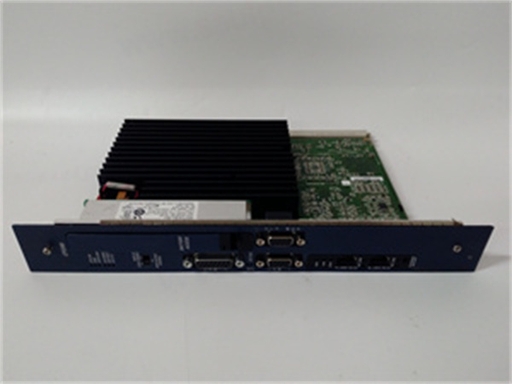

1. Product Overview The IC698CPE040 is a high‑performance CPU module from the Emerson (GE Fanuc) PACSystems RX7i series. Designed as the core of industrial control systems, it executes user programs, controls I/O modules, and performs real‑time automation for machine, process, and material‑handling applications. image

Description

1. Product Overview

The IC698CPE040 is a high‑performance CPU module from the Emerson (GE Fanuc) PACSystems RX7i series. Designed as the core of industrial control systems, it executes user programs, controls I/O modules, and performs real‑time automation for machine, process, and material‑handling applications.

2. Key Features

  • Processor: Intel Pentium‑M @ 1.8 GHz

  • Memory:

    • 64 MB battery‑backed RAM (user program/data)

    • 64 MB non‑volatile flash (program/data storage)

  • Execution Speed: 0.024 ms / 1000 Boolean contacts/coils

  • Communication Ports:

    • 1 × Ethernet (RJ45, 10/100 Mbps, auto‑negotiation)

    • 3 × Serial (RS‑232 / RS‑485, software‑selectable)

  • Protocols: Modbus/TCP, EGD, SRTP, Modbus RTU, SNP, Serial I/O

  • Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, C

  • Max Program Size: 512 blocks, 128 KB per block

  • Data Monitoring: Up to 16 combined web server/FTP connections


3. Specifications

3.1 Electrical

ParameterValue
Power Consumption+5 VDC: 6.8 A (nominal)

+12 VDC: 0.003 A (nominal)

–12 VDC: 0.003 A (nominal)
Real‑Time Clock Accuracy±0.01% max; ±2 seconds/day max drift

3.2 Environmental

ParameterValue
Operating Temperature0 °C to +55 °C
Storage Temperature–20 °C to +85 °C
Humidity5–95% non‑condensing
MTBF200,000 hours (typical)

3.3 Mechanical

ParameterValue
Form FactorVME64 standard
Dimensions170 × 150 × 30 mm
Weight~1.2 kg
MountingSlide‑in to RX7i rack CPU slot

4. Installation

4.1 Rack Installation

  1. Power off the RX7i rack and all connected devices.

  2. Insert the IC698CPE040 into the CPU slot (typically the leftmost slot) of the RX7i rack.

  3. Push firmly until the module fully seats into the VME64 backplane connector.

  4. Secure the module with the front‑panel screws.

4.2 Redundancy Setup (Optional)

  1. Install two IC698CPE040 CPUs in separate RX7i racks (primary and secondary).

  2. Install one IC698RMX016 Redundancy Memory Xchange module in each rack.

  3. Connect the RMX modules via a fiber or copper redundancy link.

  4. Configure redundancy parameters (e.g., IP addresses, sync settings) in Proficy Machine Edition / Logic Developer software.


5. Communication Interfaces

5.1 Ethernet Port (ETH1)

  • Speed: 10/100 Mbps, full‑duplex, auto‑negotiation

  • Protocols: Modbus/TCP, EGD, SRTP, TCP/IP, SNTP (time synchronization)

  • Functions: Programming, HMI/SCADA communication, data exchange, web server/FTP access

5.2 Serial Ports (COM1, COM2, COM3)

  • Modes: RS‑232 (point‑to‑point) or RS‑485 (multi‑drop), software‑selectable

  • Protocols: Modbus RTU (Slave), SNP, Serial I/O

  • Use Cases: Legacy device communication, programming, HMI connection

5.3 Station Manager Port

  • Function: Local configuration, firmware updates, diagnostics, and troubleshooting


6. Operation

6.1 Power‑On

  1. Apply power to the RX7i rack.

  2. Check front‑panel LEDs:

    • RUN (Green): Solid = CPU executing program; Blinking = Startup/firmware update

    • FAULT (Red): Off = Normal; Solid = Critical fault; Blinking = Minor fault/warning

    • ETH1 (Yellow/Green): Blinking = Network activity

6.2 Normal Operation

  • Executes user program and updates I/O every scan cycle.

  • Maintains real‑time clock and battery‑backed memory (preserves data during power loss).

  • Communicates with HMIs, SCADA, and other controllers via Ethernet/serial.


7. Programming

7.1 Software

  • Use Proficy Machine Edition or Logic Developer (Emerson Automation Solutions).

7.2 Supported Languages

  • Ladder Diagram (LD): Standard for relay‑logic applications

  • Structured Text (ST): High‑level, Pascal‑like language

  • Function Block Diagram (FBD): Graphical, block‑based programming

  • C Language: For complex algorithms and custom functions

7.3 Program Structure

  • Program Blocks: Up to 512 blocks (max 128 KB per block)

  • Memory Reference: %W reference table for bulk memory access

  • Symbolic Variables: Auto‑located, use user memory dynamically


8. Protection & Diagnostics

8.1 Error Conditions

  • CPU Fault: Hardware/software error (check firmware, program, or backplane connection)

  • I/O Fault: Missing/faulty I/O module (inspect backplane, wiring, or module)

  • Communication Fault: Network/serial link failure (check cables, settings, or devices)

8.2 LED Indicators

LEDStateMeaning
RUNSolid GreenNormal operation

Blinking GreenStartup / firmware update
FAULTSolid RedCritical fault (CPU/I/O/Communication)

Blinking RedMinor fault / warning
ETH1BlinkingNetwork activity (data transmission/reception)

9. Maintenance

9.1 Regular Checks

  • Monthly: Verify LED status, clean dust from vents (use low‑pressure air), check cable connections.

  • Quarterly: Update firmware (if available), verify communication integrity.

  • Annually: Replace battery (every 3–5 years) to preserve memory during power loss.

9.2 Troubleshooting

SymptomPossible CauseSolution
No RUN LEDNo rack power / CPU not seatedCheck power supply; re‑seat CPU
FAULT LED OnProgram error / I/O faultDownload blank program; check I/O modules
Ethernet Link DownCable fault / Switch port issueReplace cable; check switch port settings
Serial Communication FailIncorrect settings / Wiring errorVerify baud rate, parity; check wiring
Battery Low WarningWeak batteryReplace battery; ensure proper connection

10. Warranty & Support

  • Warranty: 1‑year manufacturer’s warranty against defects in materials and workmanship.

  • Support: Contact Emerson Automation Solutions for technical assistance, firmware updates, or repair services.


11. Safety Precautions

  • Disconnect power before installation, wiring, or maintenance to avoid electric shock.

  • Do not operate outside the 0 °C to +55 °C temperature range to prevent overheating.

  • Ensure proper grounding of the rack and modules to reduce electrical noise and shock hazards.

  • Keep ventilation vents clear of dust and debris to maintain airflow.
