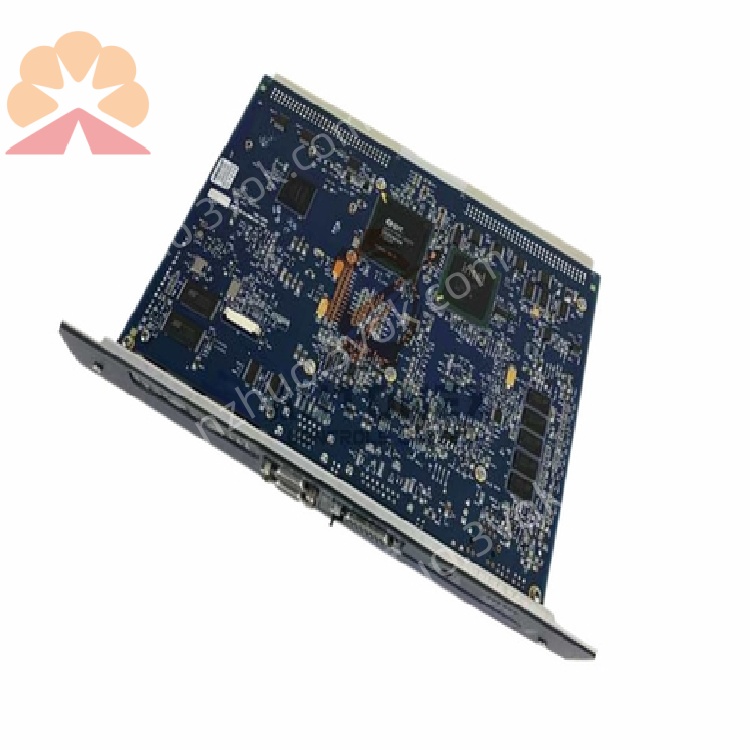

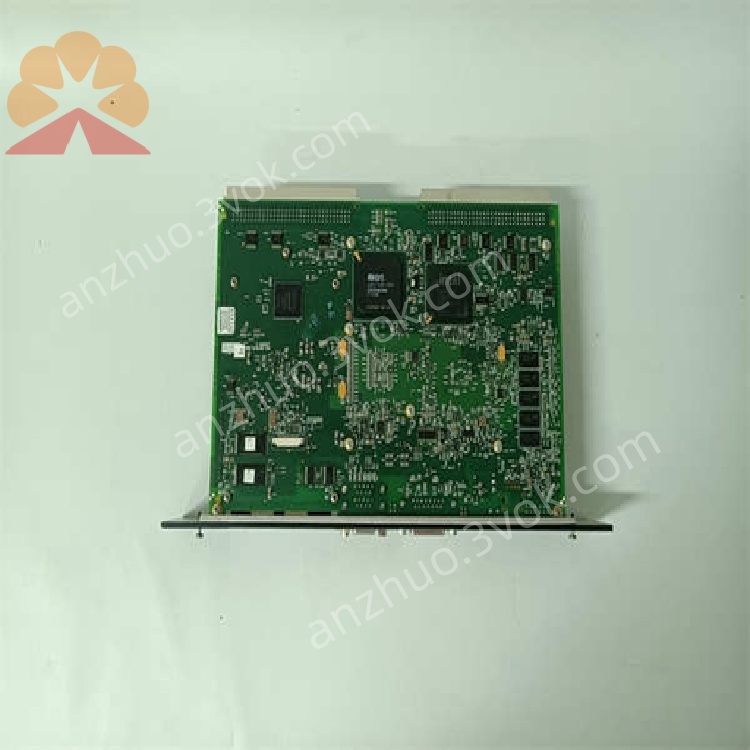

Product Specification: GE Fanuc IC698CPJE030-G

1. Product Identification

• Manufacturer: GE Fanuc (Emerson Automation Solutions)

• Part Number: IC698CPE030-GJ

• Product Series: PACSystems™ RX7i

• Product Type: High-Performance Central Processing Unit (CPU) Module

• Form Factor: 3U, rack-mounted module for RX7i PLC chassis

2. General Description

3. Core Technical Specifications

3.1 Processor & Performance

• Processor Type: Intel Pentium-M

• Clock Speed: 600 MHz

• Floating-Point Unit: Integrated, supports high-precision mathematical computations

• Execution Speed: 0.069 ms per 1000 Boolean contacts/coils

• Data Path: 32-bit internal architecture

3.2 Memory Configuration

• User Memory (SRAM): 64 MBytes (battery-backed, non-volatile retention)

• User Flash Memory: 64 MBytes (non-volatile program/data storage)

• Real-Time Clock (RTC): Onboard, battery-backed, accuracy ±2 seconds per day

• I/O Memory Capacity:

  • Discrete I/O (%I, %Q): Up to 32 Kbits

  • Analog I/O (%AI, %AQ): Up to 32 Kwords each

• Program Organization: Supports up to 512 program blocks (max block size: 128 KB)

3.3 Backplane Interface

• Bus Standard: VME64 (ANSI/VITA 1) high-speed backplane

• Local I/O Support: Full support for RX7i local I/O modules

• Expansion Capability: Supports remote I/O, coprocessors, and communication modules

4. Communication Interfaces

4.1 Ethernet Ports

• Quantity: 2 ports (auto-sensing, embedded switch)

• Speed: 10/100 Mbps (half/full duplex, auto-negotiating)

• Connector: RJ45

• Supported Protocols:

  • SRTP Client/Server

  • Modbus TCP (Client/Server)

  • Ethernet Global Data (EGD)

  • OPC UA

  • Ethernet/IP

  • DNP3

  • PROFINET (via optional IC698COMM301 module)

4.2 Serial Ports

• COM1 (RS-232): 1 port

• COM2 (RS-485): 1 port

• COM3 (RS-232 Station Manager): 1 port (for system configuration)

• Supported Protocols:

  • Modbus RTU (Slave)

  • SNP Slave

  • Serial I/O

  • ASCII

4.3 Additional Interfaces

• USB Port: 1 x USB 2.0 Type-A (for firmware updates, program transfer)

• SD Card Slot: 1 x SD card interface (for optional memory expansion)

5. Physical & Environmental Specifications

• Dimensions (WxDxH): 101.6 mm × 228.6 mm × 38.1 mm (4.0 in × 9.0 in × 1.5 in)

• Weight: Approx. 1.8 kg (4.0 lbs)

• Power Requirements:

  • Input Voltage: 24 VDC ±10% (18–30 VDC)

  • Power Consumption: <18 W (max)

  • Current Draw: Typically 1.8 A @ 24 VDC (max 2.5 A)

• Operating Temperature: 0°C to +60°C (32°F to 140°F)

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95% (non-condensing)

• Indicators: Front-panel status LEDs for power, run, fault, and communication

• Controls: RUN/STOP/REMOTE mode switch

6. Software & Programming

• Programming Languages:

  • Ladder Diagram (LD)

  • Structured Text (ST)

  • Function Block Diagram (FBD)

  • Sequential Function Chart (SFC)

  • C Language

• Configuration Software: Proficy Machine Edition Logic Developer (v4.0 or later)

• Built-in Servers: Web server and FTP server (supports up to 16 concurrent connections)

• Diagnostics: Comprehensive self-diagnostics, fault reporting, and system monitoring

• Memory Protection: Password-protected program and data security

7. Key Features & Advantages

• High-Speed Processing: 600 MHz Pentium-M processor for fast execution of complex control algorithms.

• Dual Ethernet Connectivity: Two 10/100 Mbps ports for high-speed networking, HMI, and remote access.

• Non-Volatile Memory: 64 MB battery-backed RAM + 64 MB flash ensures data/program retention.

• Triple Serial Ports: RS-232/485 + Station Manager for legacy device integration.

• VME64 Backplane: High-speed communication with I/O and expansion modules.

• Industrial Robustness: Wide temperature range and rugged design for harsh environments.

• Flexible Expansion: USB, SD card, and support for optional communication modules.

• Software Compatibility: Full support for Proficy Machine Edition and standard IEC 61131-3 languages.

8. Typical Applications

• Factory automation & process control

• Material handling systems

• Packaging machinery

• Water & wastewater treatment

• Power generation & distribution

• Oil & gas processing

• Chemical and pharmaceutical manufacturing

• Industrial robotics

• Test & measurement systems

• Building automation

9. Reliability & Compliance

• Designed for 24/7 operation in industrial environments

• Conforms to VME64 backplane standards

• Comprehensive fault detection and alarm handling

• Lithium battery backup for RAM and RTC (typically 5-year life)

• Certifications: UL, cUL, CE, CCC, RoHS, ATEX Zone 2, HazLoc C1D2



•

•

•

•
