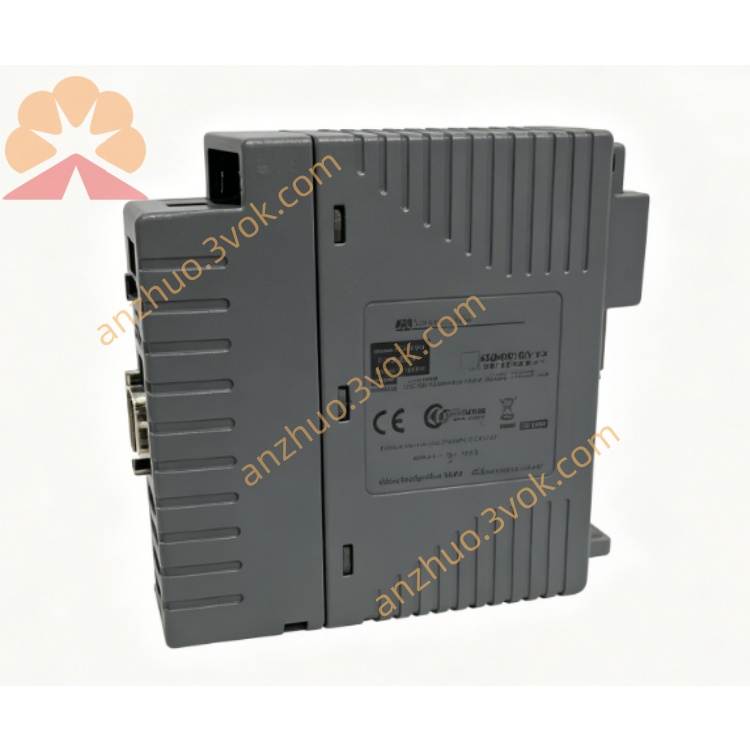

ALP121-S00
Corporation for the CENTUM VP DCS platform. It functions as a PROFIBUS‑DP master, enabling high‑speed data exchange between the DCS and PROFIBUS‑DP slave devices such as PLCs, motor drives, remote I/O, and PROFIBUS‑PA devices (via DP/PA couplers). The module supports isolated RS‑485 communication and can be installed on AFV30/AFV40 field control stations, ANB10 ESB bus node units, or ANB11 optical ESB bus node units, making it suitable for process industries including chemical, power, oil and gas, and metallurgy.
Description
Basic Specifications
Model: ALP121-S00Module Type: PROFIBUS‑DP Communication Module (Master, for FIO)Communication Protocol: PROFIBUS DP‑V0 certifiedTransmission Standard: EIA‑RS‑485, isolated between field and systemTransmission Speed: 9600 bps to 12 Mbps (supports all standard PROFIBUS baud rates)Max Transmission Distance: 1.2 km per segment (at 9600 bps)Communication Port: 1 × D‑sub 9‑pin female (PROFIBUS‑DP)Cable: Shielded twisted pairPower Supply: Backplane power (5 V DC)Max Current Consumption: 0.7 ADimensions: 130 mm × 125.5 mm × 32.8 mmWeight: Approx. 0.3 kgMounting: AFV30/AFV40, ANB10, ANB11 racksOperating Temperature: 0°C to +55°CStorage Temperature: -20°C to +60°CRelative Humidity: 10%–90% RH, non‑condensingCertifications: CE, PROFIBUS Nutzerorganisation e.V.
Main Features
Functions as a PROFIBUS‑DP master for seamless integration with third‑party slave devices, including PROFIBUS‑PA devices via DP/PA couplers.Supports high‑speed communication up to 12 Mbps for efficient process data exchange.Isolated RS‑485 interface provides strong noise immunity and electrical isolation in industrial environments.Supports linear/cyclic communication, point‑to‑point and multi‑drop topologies.Hot‑swappable for maintenance without system shutdown.Compact rack‑mount design with diagnostic LEDs for real‑time communication status monitoring and quick troubleshooting.Compatible with Yokogawa Plant Resource Manager for remote monitoring and asset management.
Model Suffix Explanation
S = Standard type0 = Non‑explosion proof0 = Basic configuration
Typical Applications
Connects CENTUM VP DCS to PROFIBUS‑DP slaves (PLCs, motor drives, remote I/O, HART devices, and 4‑20 mA analog equipment via PROFIBUS remote I/O).Used in chemical plants, power stations, oil refineries, and metallurgical facilities.Suitable for high‑speed, reliable fieldbus communication in process automation.
