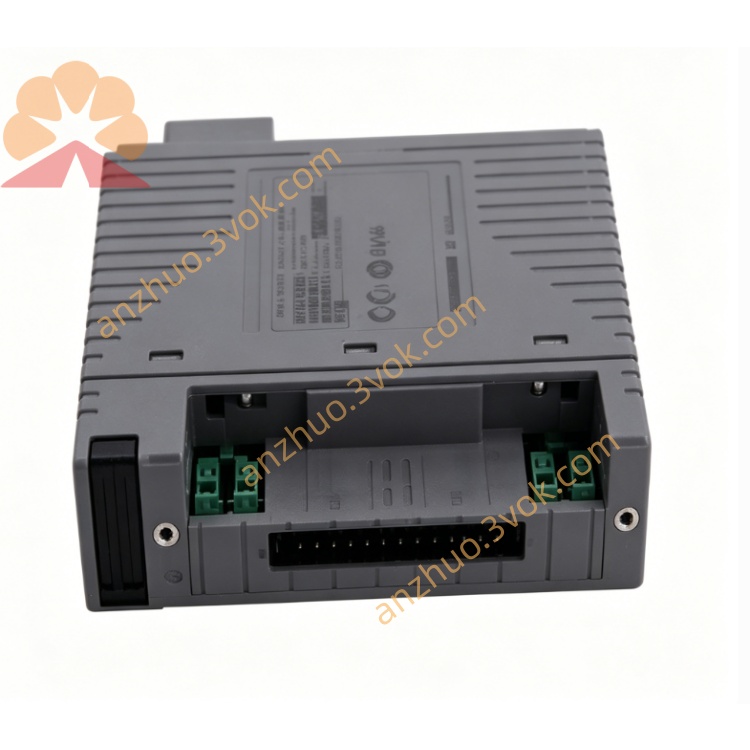

The AAI143-H53 is a 16-channel isolated analog input module for Yokogawa's CENTUM CS 3000 DCS system, supporting the HART protocol. It is used for high-precision acquisition and device management of 4–20mA signals in industrial processes.

Basic Specifications

Model: AAI143-H53

Type: Analog Input Module

Number of Channels: 16 channels, fully isolated

Input Signal: 4–20mA DC (maximum 24mA)

Supported Protocol: HART (Digital Communication / Device Diagnostics)

Accuracy: ±16μA (typical)

Update Cycle: 10ms

Isolation Voltage: Input - System 1500V AC/1 minute

Transmitter Power Supply: 19–25.5V DC, supports 2-wire/4-wire

Operating Temperature: -20°C ~ +70°C (ISA G3 standard)

Power Consumption: 5V→230mA 24V→540mA

Dimensions / Weight: 107.5×32.8×130mm / 0.3kg

Certifications: CE, UL, CSA

Core Functions

High-precision signal acquisition: 16 isolated channels, accurately measure 4–20mA industrial standard signals, compatible with temperature, pressure, flow and other sensors.

HART communication: Read device diagnostics and configuration parameters online, support remote maintenance, and reduce downtime.

Strong isolation and anti-interference: High isolation between channels and between input and system, suppress EMI/RFI, suitable for harsh industrial environments.

Fast real-time response: 10ms high-speed sampling, meet the requirements of closed-loop control and rapid process monitoring.

Wide temperature and high reliability: Stable operation from -20°C to +70°C, comply with ISA G3, suitable for extreme working conditions.

Model suffix interpretation

H: With HART digital communication

5: No explosion-proof protection

3: ISA G3 standard, -20°C to +70°C

Application scope

DCS systems: CENTUM CS 3000 series, seamless integration with Yokogawa control platform.

Process industries: Chemical, oil and gas, power, water treatment, metallurgy and other high-precision parameter monitoring.

Sensor interface: Connect 4–20mA transmitters (temperature, pressure, level, flow).

Equipment management: Remote diagnosis, calibration and status monitoring of HART instruments.

Installation and maintenance

Installation points

Install with power off, anti-static (grounding ≥ 1MΩ).

Rail mounting or panel fixing, torque 0.8–1.2N・m.

Wiring: 2-wire / 4-wire transmitters, shield single-ended grounding.

Power-on self-check: Module LED green indicates normal, no alarm.

Maintenance suggestions

Daily: Check LED status, wiring looseness / corrosion.

Quarterly: Dust removal, recheck terminal torque, test HART communication.

Annual: Precision calibration, aging assessment, replace if necessary.

Safety precautions

Only certified electrical personnel are allowed to operate, follow safety regulations.

Never plug or unplug with power on to prevent module damage and electric shock.

Immediately power off and troubleshoot in case of failure, do not force power on.

Use original Yokogawa accessories, non-original parts may affect performance and safety.
