1. General Information

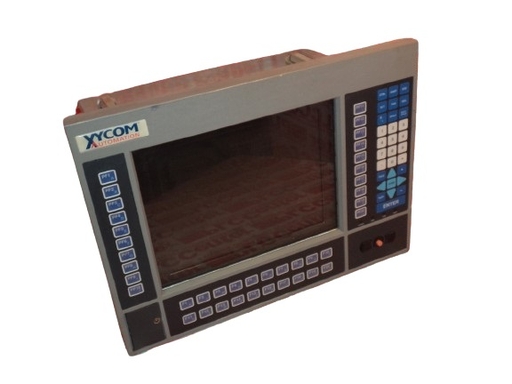

• Part Number: 3515KPM

• Manufacturer: XYCOM Automation (Schneider Electric / Pro‑face)

• Product Type: 15” Industrial Panel PC with 74‑key keypad + industrial mouse (touch optional)XYCOM

• Series: 3500 Series

• Status: Discontinued (EOL); refurbished/used available

• Mounting: Panel mount

• Weight: ~15.0 kg (33.0 lbs)

2. Display

• Size: 15” TFT active matrix color LCDXYCOM

• Resolution: 1024 × 768 (XGA)XYCOM

• Brightness: Standard industrial grade

• Backlight: CCFL, long life

• Touchscreen: Optional analog resistive touch (KPM = keypad/mouse; KPMT = keypad/mouse/touch)XYCOM

3. System Hardware

• CPU: Intel Celeron (600 MHz) / Pentium III (up to 1.26 GHz)XYCOM

• Memory: Up to 512 MB SDRAM (2×168‑pin DIMM slots)

• Storage: IDE HDD (up to 320 GB), floppy/CD‑ROM options

• Graphics: PCI video controller, 2 MB VRAM

• Expansion: 3×ISA, 2×PCI, 1×shared ISA/PCI slotXYCOM

4. Power Supply

• Input Voltage: 115/230 VAC, 50/60 Hz, autosensing

• Current: 6.3 A max

• Power Consumption: ~70 W max

• Protection: Overvoltage, overcurrent, surge

5. I/O Ports

• Serial: 1×RS‑232, 1×RS‑232/485

• Parallel: 1×SPP/EPP

• Ethernet: 1×10/100 Mbps (RJ45, optional)XYCOM

• PS/2: Keyboard/mouse

• USB: 2×USB 1.1

• Audio: Line in/out, mic

• VGA: External monitor port

6. Mechanical Specifications

• Front Panel (W×H): 483 × 381 mm (19.0” × 15.0”)

• Depth: 152 mm (6.0”); ~127 mm (5.0”) behind panel

• Front Panel Rating: NEMA 4/4X/12, IP65

• Housing: Rugged metal, industrial grade

7. Environmental Ratings

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: −20 °C to +60 °C

• Humidity: 10%–90% RH, non‑condensing

• Vibration/Shock: IEC 60068 compliant

8. Software & OS

• Preloaded OS: MS‑DOS, Windows 95/98/NT/2000XYCOM

• Compatible OS: QNX, VxWorks

9. Certifications

• Safety: UL 508, CE; UL Class I Div 2, Class II Div 2

• EMC: FCC Class A, CE EN 61000‑6‑2/4

10. Availability & Replacement

• Original New: Discontinued

• Supply: Tested refurbished, used spares

• Recommended Replacement: Pro‑face GP6000 series 15” industrial panel PC with keypad option
