1. General Information

• Part Number: 3410KP

• Manufacturer: XYCOM Automation (Schneider Electric / Pro‑face)

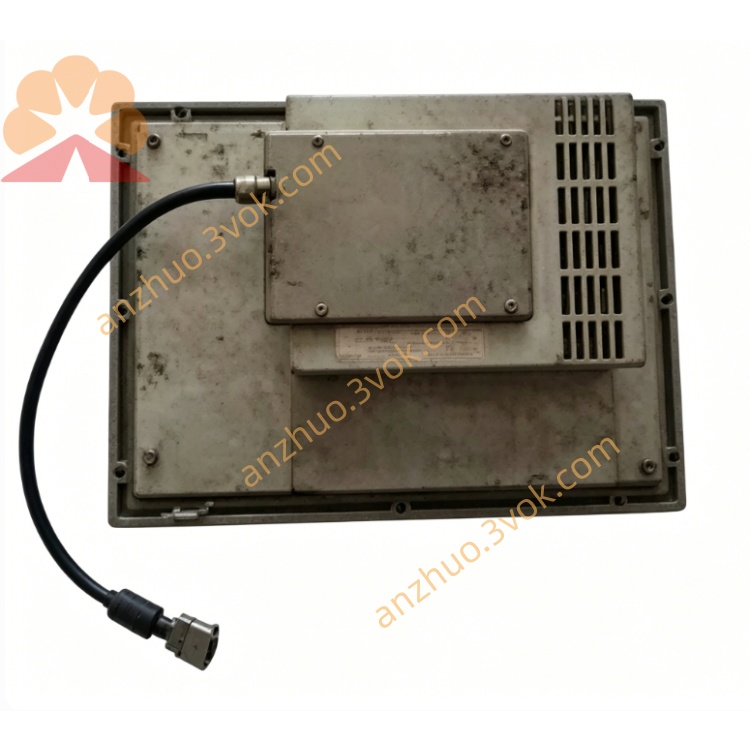

• Product Type: 10.4” Industrial Flat Panel PC with Keypad (HMI/IPC)

• Series: 3400 Series

• Status: Discontinued (EOL); refurbished/used available

• Mounting: Panel mount

• Weight: ~5.0 kg (11.0 lbs)

2. Display

• Size: 10.4” TFT active matrix color LCD

• Resolution: 640 × 480 (VGA)XYCOM

• Brightness: Standard industrial grade

• Backlight: CCFL, long life

• Touchscreen: None (keypad‑only; 3410KPT has touch)

3. Keypad

• Type: Full alphanumeric/function keypad

• Keys: F1–F20, PF1–PF12, A–Z, numeric/cursor keys

• Legends: Relegendable keys; custom inserts supported

4. System Hardware

• CPU: AMD 5x86 133 MHz

• Memory: Up to 64 MB EDO DRAM (72‑pin SIMM)

• Storage: 6.0 GB+ IDE HDD, floppy option, CompactFlash supportXYCOM

• Graphics: PCI video controller, 1 MB VRAM

• Expansion: PC/104 (up to 2 stacked cards)XYCOM

5. Power Supply

• Input Voltage: 90–250 VAC, 50/60 Hz, autosensing

• Power Consumption: 40 W maxXYCOM

• Protection: Overvoltage, overcurrent, surge

6. I/O Ports

• Serial: 1×RS‑232, 1×RS‑232/485XYCOM

• Parallel: 1×SPP/EPPXYCOM

• Ethernet: 1×10/100 Mbps (RJ45)XYCOM

• PS/2: Keyboard/mouseXYCOM

• Infrared: IrDA‑compatibleXYCOM

• Audio: Line in/out, mic

7. Mechanical Specifications

• Front Panel (W×H): 356 × 279 mm (14.0” × 11.0”)

• Depth: 107 mm (4.20”); 84 mm (3.3”) behind panel

• Front Panel Rating: NEMA 4/4X/12, IP65XYCOM

• Housing: Rugged metal, industrial grade

8. Environmental Ratings

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: −20 °C to +60 °C

• Humidity: 10%–90% RH, non‑condensing

• Vibration/Shock: IEC 60068 compliant

9. Software & OS

• Preloaded OS: MS‑DOS, Windows 95/98/NTXYCOM

• Compatible OS: Windows 2000, QNX, VxWorks

10. Certifications

• Safety: UL 508, CE; UL Class I Div 2, Class II Div 2XYCOM

• EMC: FCC Class A, CE EN 61000‑6‑2/4

11. Availability & Replacement

• Original New: Discontinued

• Supply: Tested refurbished, used spares

• Recommended Replacement: Pro‑face GP4000/GP5000 series 10.4” industrial keypad/touch panel
