General Information

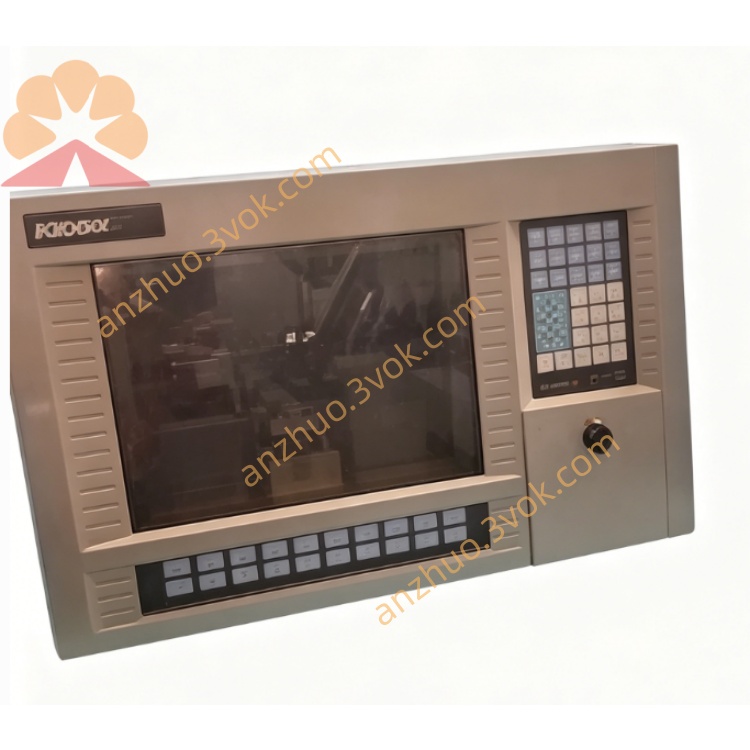

• Model: XYCOM 9485

• Manufacturer: XYCOM Automation

• Product Type: Industrial workstation / flat‑panel industrial computer

• Installation: Panel mount; optional 19‑inch rack adapter

• Front Panel Protection: NEMA 4/4X/12, IP65 (dustproof and waterproof)

• Weight: Approx. 22 lb (10 kg)

• Status: EOL (End‑of‑Life); available as refurbished or spare parts

Electrical Specifications

AC Power

• Input: 115–230 VAC, 50/60 Hz, autosensing

• Max power consumption: 150 W (system total)

DC Power Option (Factory Installed)

• Input: 20–25 VDC (24 V nominal)

• Max power: 25 W; max current: 8 A

• Outputs: +5 V, +12 V, -12 V

Certifications

• UL 1950/1604, cUL C22.2 No.950/213, CE EN60950, FCC Class A

Display & Operation

• Display: 15‑inch TFT XGA color LCD, 1024×768 resolution

• Touchscreen: 5‑wire resistive (optional), safety glass

• Keypad: Optional sealed industrial keypad and pointing device

• Front Panel: Membrane keys; LED indicators for power, disk, and communication

• Adjustments: Physical keys for brightness/contrast

System Hardware

• Processor: Intel Pentium (up to 450 MHz, Socket 7)

• Memory: 2×72‑pin EDO DRAM SIMM, max 128 MB

• Storage: IDE HDD (up to 7.6 GB); 1.44 MB 3.5‑inch floppy (optional); CD‑ROM optional

• Video: PCI VGA controller, 2 MB VRAM, external VGA port

• Expansion: 6× AT‑bus slots (PCI/ISA); 5 slots available with Ethernet card

• OS Support: DOS, Windows 95, Windows NT 4.0

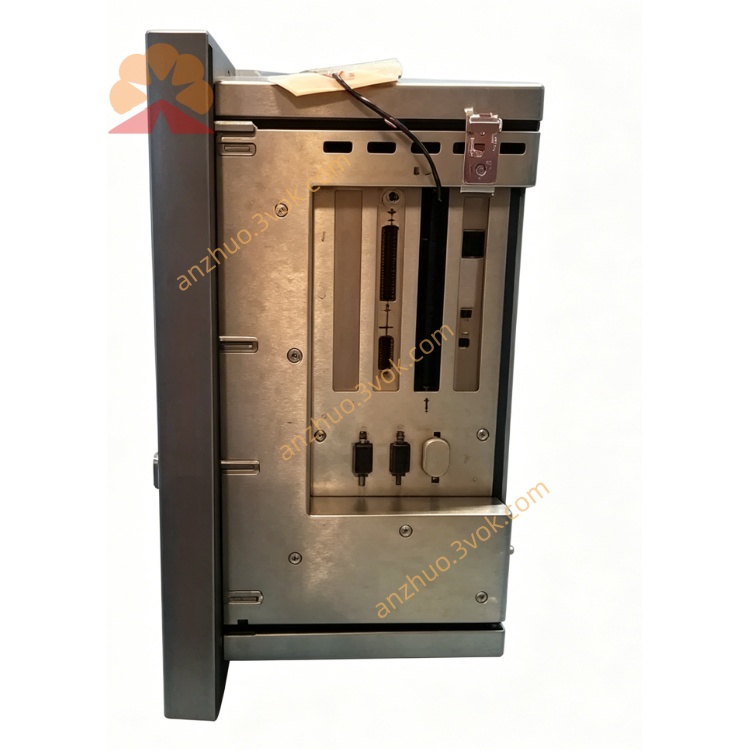

External Interfaces

• Serial: 2× RS‑232/485 switchable

• Parallel: 1× (for printer)

• Ethernet: 10/100 Mbps (optional)

• Peripherals: PS/2, USB, external VGA

Environmental Specifications

• Operating Temperature: 0 °C to 50 °C

• Storage Temperature: -40 °C to 60 °C

• Humidity: 20%–80% non‑condensing

• Shock/Vibration: Industrial grade, suitable for harsh factory environments

Applications

• Industrial automation on‑site control and monitoring

• Production line data acquisition and parameter setting

• Compatible with legacy PLC and DCS systems

• Widely used in machinery, chemical, power, and metallurgy industries
