General Information

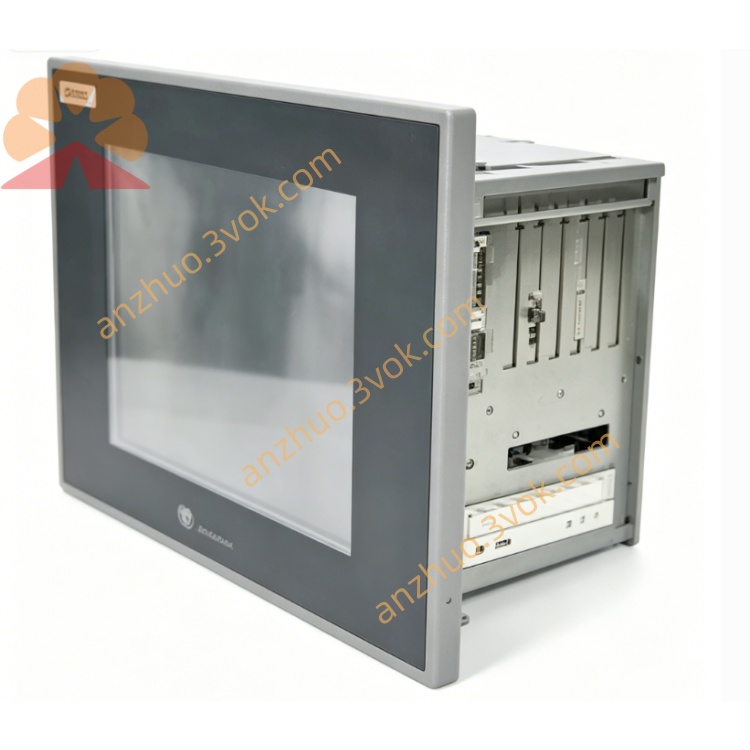

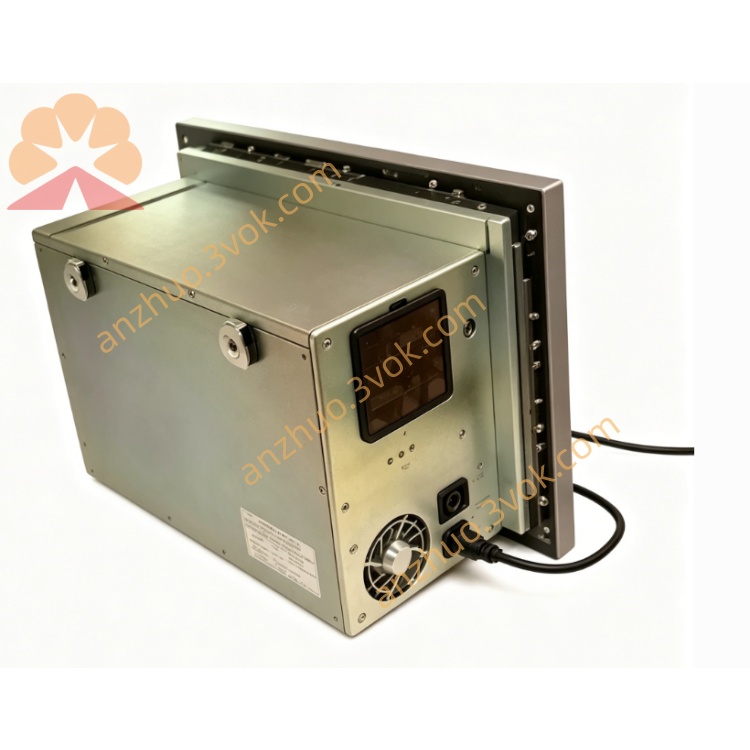

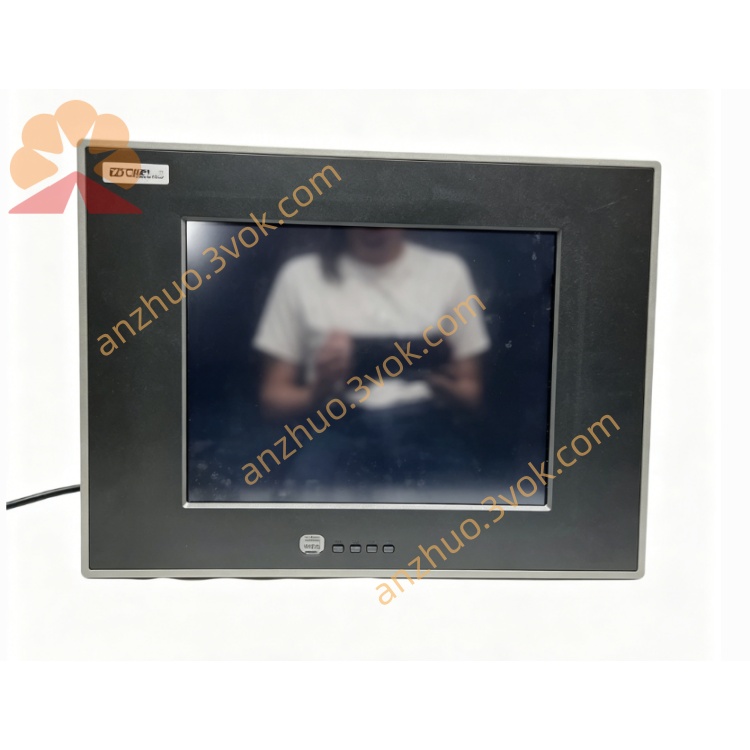

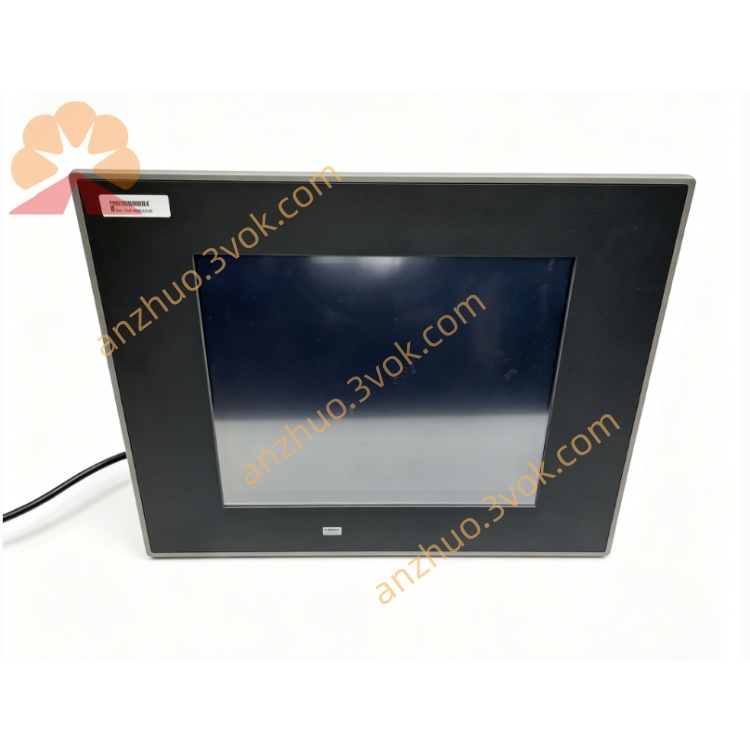

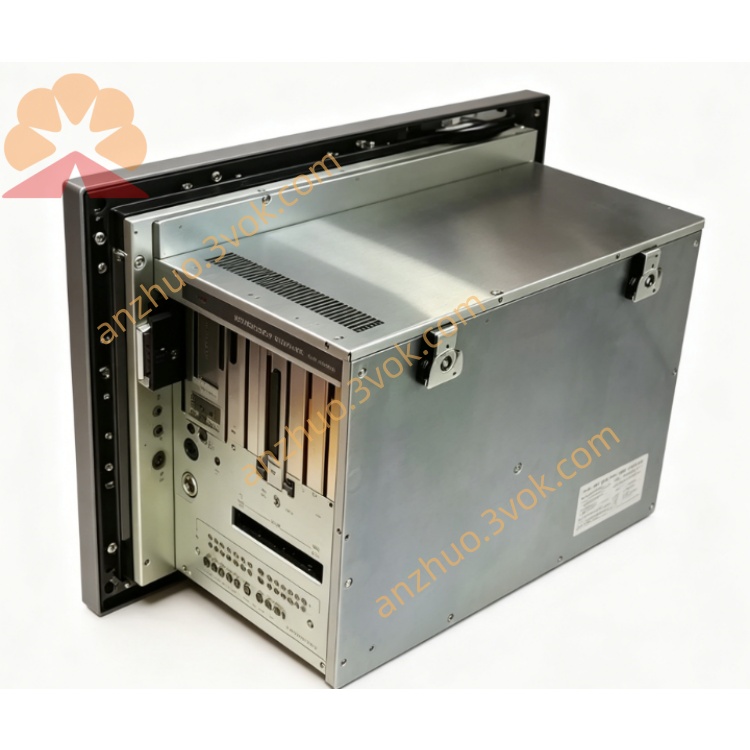

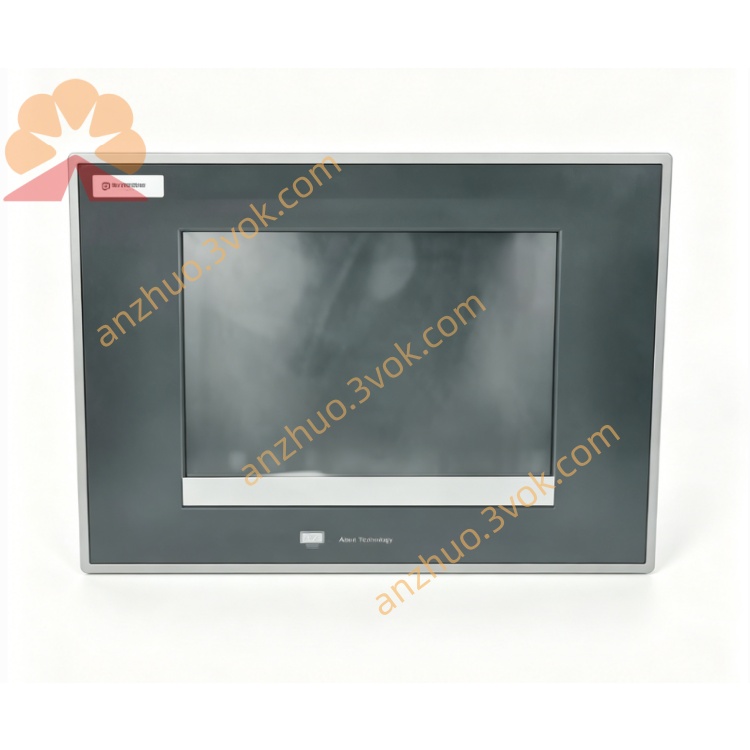

• Model: 3515T (touch) / 3515KPM (keypad+mouse)XYCOM

• Manufacturer: Pro‑face (XYCOM Automation)

• Type: 15” Industrial Flat Panel PC / HMIXYCOM

• Mounting: Panel mount; front NEMA 4/4X/12, IP65

• Protection: Front IP65; Rear IP20

• Weight: ~16–18 lbs (7.3–8.2 kg)

Electrical Specifications

• Input Voltage: 115/230 VAC, 50/60 Hz, 6.3 A autosensing

• Power Consumption: ~150 W max

• Power Supply: Industrial grade, surge/ESD protected

Display & Input

• Display: 15” TFT LCD, XGA 1024×768XYCOM

• Brightness: 200–300 cd/m² (typical)

• Touchscreen (3515T): Analog resistive, glove‑friendlyXYCOM

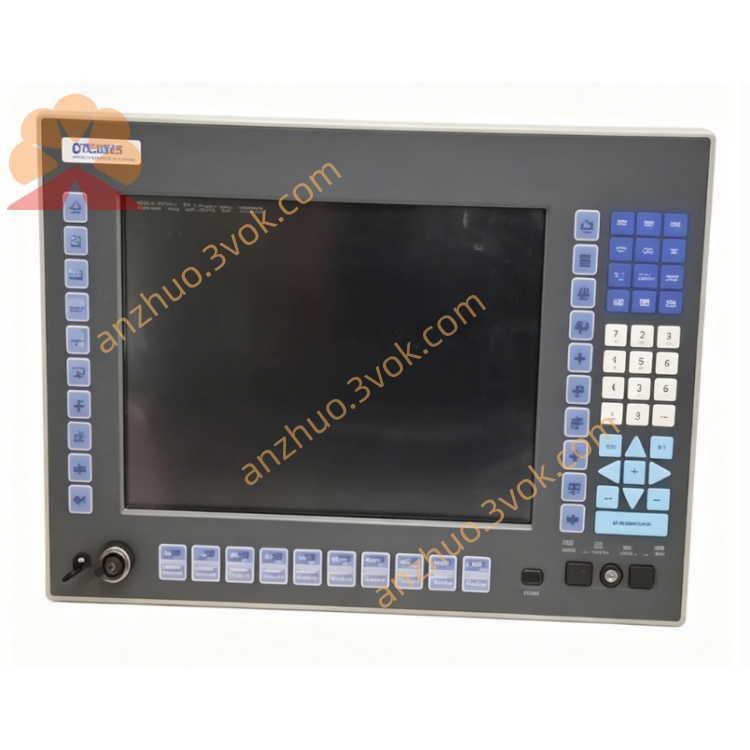

• Keypad (3515KPM): 74‑position industrial keypad + mouseXYCOM

System Configuration

• CPU: Intel Celeron / Pentium III (up to 1.26 GHz)XYCOM

• Chipset: AHIP6+ or AHIP370+

• Memory: 256 MB DDR SDRAM (max 1 GB)

• Video: AGP, 4 MB VRAM (shared up to 32 MB)

• Storage: IDE HDD, slim CD‑ROM, external floppy option

• OS: MS‑DOS, Windows 95/98/NT/2000/XPXYCOM

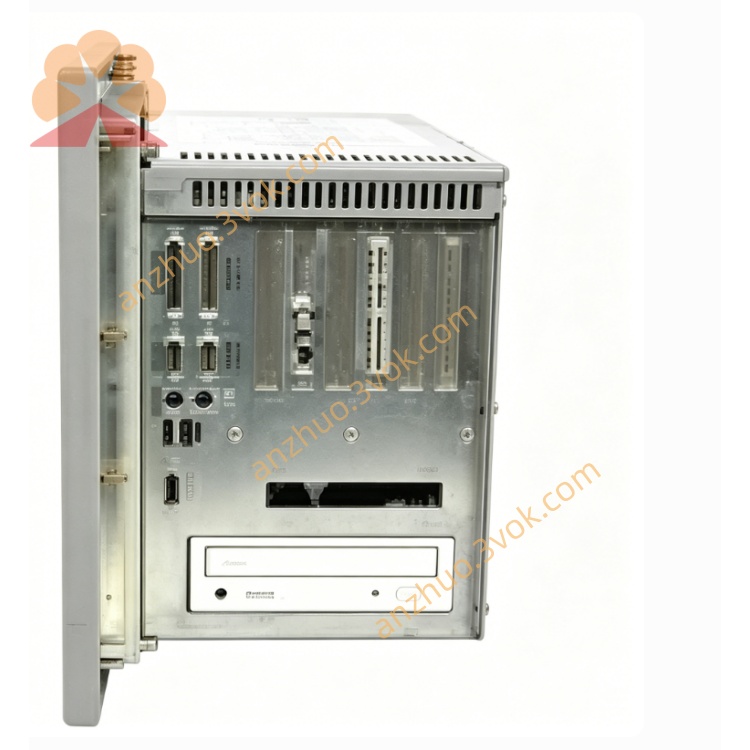

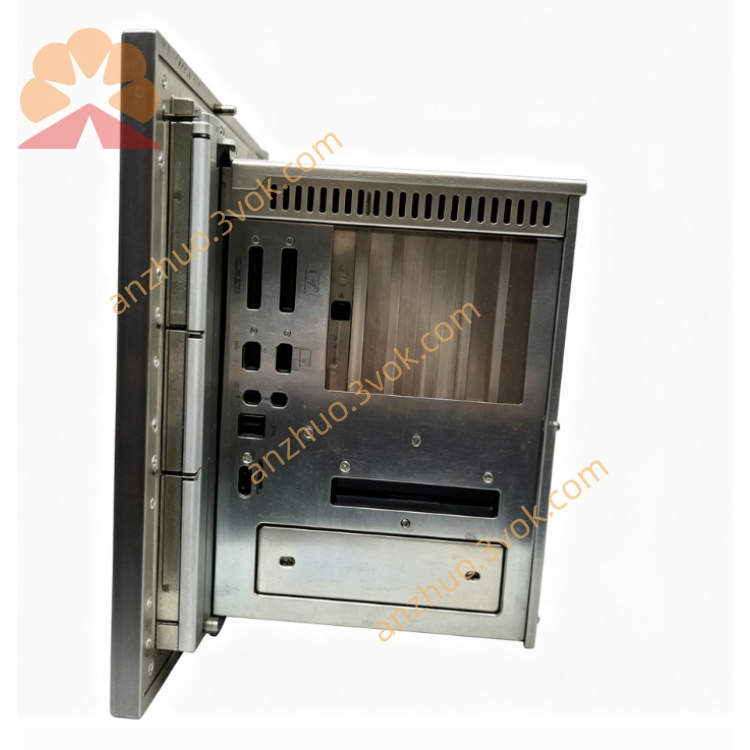

I/O Interfaces

• Serial: 2×RS‑232, 1×RS‑232/422/485

• Parallel: 1×SPP/EPP/ECP (DB25)

• USB: 2×USB 1.1

• PS/2: Keyboard + mouse

• Video: VGA (DB15, external monitor)

• Audio: Line in/out, mic

• Ethernet: Optional 10/100 MbpsXYCOM

• Expansion: 6‑slot ISA/PCI (3 ISA, 2 PCI, 1 shared)XYCOM

Environmental

• Operating Temp: 0 °C to +50 °C (32–122 °F)

• Storage Temp: −20 °C to +60 °C (−4–140 °F)

• Humidity: 20%–80% RH, non‑condensing

• Vibration/Shock: Industrial grade (EN 61131‑2)

Mechanical (W×H×D)

• Front Panel: 16.5” × 13.2” (419 × 335 mm)

• Depth: 5.5” overall; 4.7” behind panel

• Panel Cutout: ~406 × 322 mm

Compliance & Status

• Certifications: CE, UL 1950/1604, cUL, FCC Class A

• Hazardous Locations: Class I Div 2, Groups A‑D; Class II Div 2, Groups F‑G

• Status: Discontinued (legacy support only)
