General Information

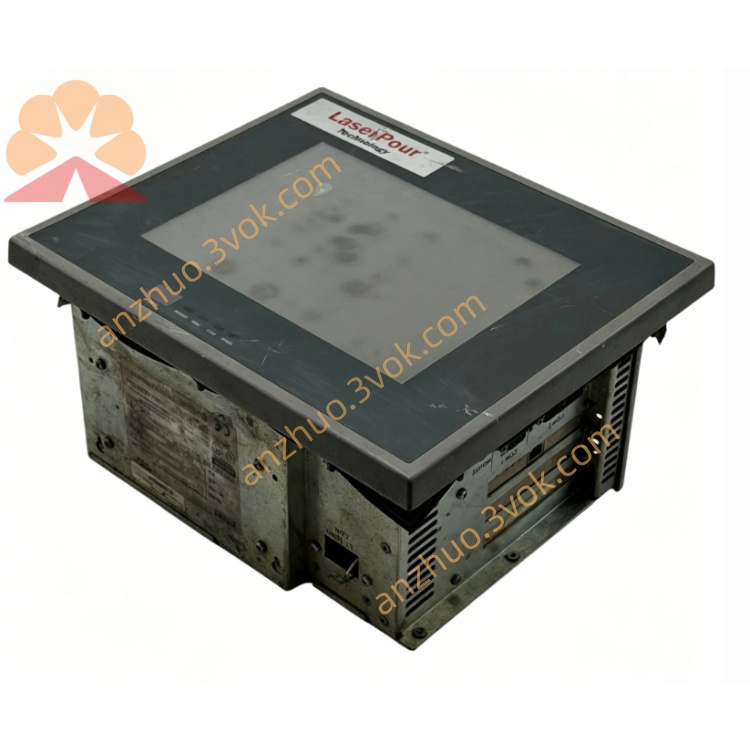

• Model: 3510T (touch) / 3510KP (keypad)XYCOM

• Manufacturer: XYCOM Automation (Pro‑face)

• Type: 10.4” Industrial Flat Panel HMI/IPCXYCOM

• Mounting: Panel mount (NEMA 4/4X/12 front)XYCOM

• Protection: Front IP65 / NEMA 4/4X/12, Rear IP20XYCOM

• Weight: 12 lbs (5.4 kg); 14 lbs with external floppy

Electrical Specifications

• Input Voltage:

  AC: 115/230 VAC, 50/60 Hz, 3.0/1.5 A

  DC: 20–36 VDC (nominal 24 VDC), 10 A max

• Power Consumption: 80 W (AHIP4+ CPU)

• Power Supply: Industrial, surge/ESD protected

Display & Input

• Display: 10.4” TFT LCD, VGA 640×480XYCOM

• Brightness: 200 cd/m² (typical)

• Touchscreen (3510T): Analog resistive, glove‑friendlyXYCOM

• Keypad (3510KP): 63‑position industrial keypadXYCOM

System Configuration

• CPU (Standard): AHIP4+ board, AMD Am5x86 133 MHz

• CPU (Optional): Intel Celeron / Pentium II / IIIXYCOM

• Memory: 72‑pin EDO DRAM SIMM, 16/32/64 MB

• Video: PCI 64‑bit, 1 MB VRAM

• Storage: IDE HDD, external floppy option

• OS: MS‑DOS, Windows 95/98/NT/2000XYCOM

I/O Interfaces

• Serial: 2×COM (1×RS‑232; 1×RS‑232/485 configurable)

• Parallel: 1×SPP/EPP/ECP (DB25)

• Video: VGA (DB15, external monitor)

• Ethernet: Optional 10/100 MbpsXYCOM

• Expansion: 1×ISA, 1×PCI, 1×shared (ISA/PCI)XYCOM

Environmental

• Operating Temp: 0 °C to +50 °C (32–122 °F)

• Storage Temp: −20 °C to +60 °C (−4–140 °F)

• Humidity: 20%–80% RH, non‑condensing

• Vibration/Shock: Industrial grade (per EN 61131‑2)

Mechanical (W×H×D)

• Front Panel: 13.0” × 11.0” (330 × 279 mm)

• Depth: 4.5” overall; 5.75” behind panel

• Panel Cutout: ~318 × 260 mm

Compliance & Status

• Certifications: CE, UL 1950/1604, cUL, FCC Class A

• Hazardous Locations: Class I Div 2, Groups A‑D; Class II Div 2, Groups F‑GXYCOM

• Status: Discontinued (legacy support only)
