General Information

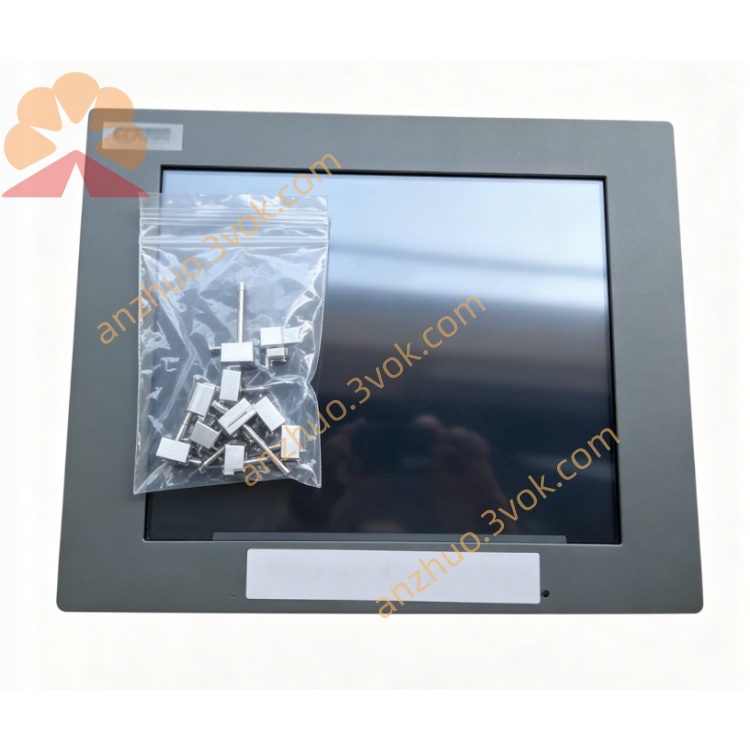

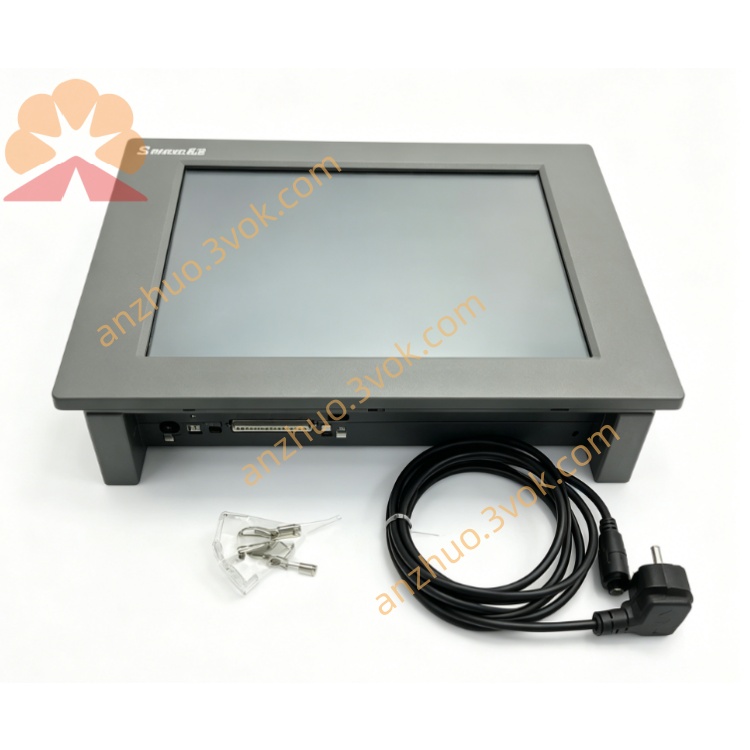

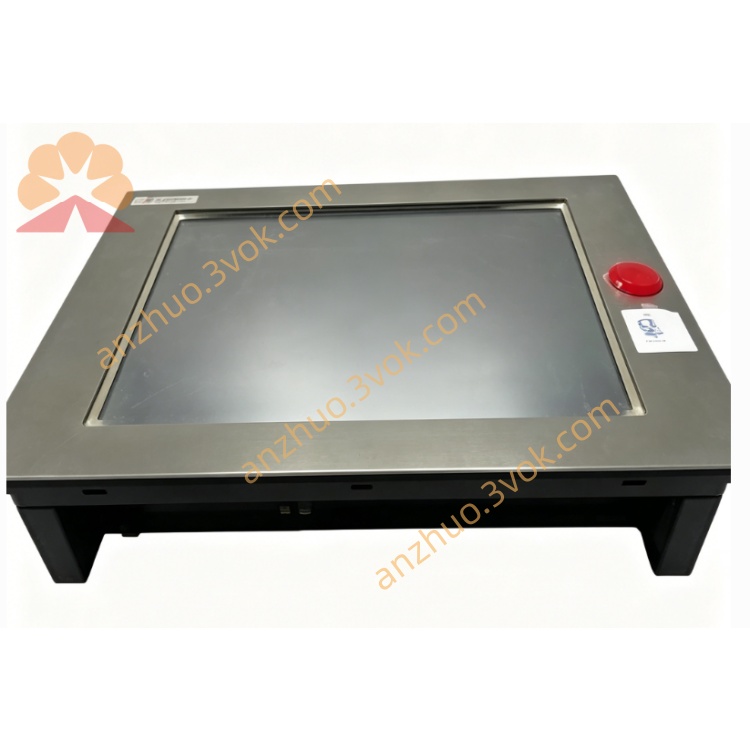

• Model: 3115T (R3 version)

• Manufacturer: Pro‑face (Xycom Automation)

• Type: 15” Thinline Industrial Touch Panel PC

• Application: Factory automation, process control, HMI, machine vision

• Mounting: Panel / Wall / VESA arm mount

• Protection: Front NEMA 4/4X/12, IP65; Rear IP20

• Weight: ~19.0 lbs (8.6 kg)

Electrical Specifications

• Input Voltage: 100–240 VAC, 50/60 Hz (universal)

• Current: 1.5–3.0 A max

• Power Consumption: ~150 W max

• Power Supply: Internal, industrial grade, surge/ESD protection

Display & Touch

• Display: 15” TFT LCD, XGA 1024×768 (NL10276BC30‑04F)

• Colors: 24‑bit (16.7M)

• Brightness: 200 cd/m²

• Backlight Life: 25,000 hrs (MTBF)

• Touchscreen: Dynapro 8‑wire analog resistive, glove‑friendly

• Touch Hardness: 4H (ASTM D3363‑92A)

System & Memory

• CPU: Intel Celeron 1.2 GHz / Pentium III 1.26 GHz (Socket 370)

• Chipset: SIS 300 VGA (up to 1024×768 @ 16M colors)

• RAM: 256 MB DDR SDRAM (max 1 GB, 2×168‑pin DIMM)

• Storage: 20 GB HDD + 1.44 MB FDD + slim CD‑ROM; CompactFlash supported

• OS: Windows 2000 (option: Windows XP / no OS)XYCOM

• RTC: Battery‑backed (10‑year retention)

I/O Interfaces

• Ethernet: 10/100 Mbps (RJ45)XYCOM

• Serial: 2×RS‑232, 1×RS‑232/422/485XYCOM

• Parallel: 1×SPP/EPP/ECP (DB25)XYCOM

• USB: 2×USB 1.1XYCOM

• PS/2: Keyboard + mouseXYCOM

• Video: VGA (DB15, external monitor)XYCOM

• Audio: Line in/out, micXYCOM

Environmental

• Operating Temp: 0 °C to +50 °C (32 °F to 122 °F)

• Storage Temp: −20 °C to +60 °C (−4 °F to 140 °F)

• Humidity: 20%–80% RH, non‑condensing

• Vibration: 5–200 Hz, 0.15 mm (EN 61131‑2)

• Shock: 15 g, 11 ms (EN 61131‑2)

Mechanical (W×H×D)

• Front Panel: 16.14 × 12.16 × 0.35 in (410 × 309 × 9 mm)

• Cabinet: 15.1 × 11.13 × 3.68 in (384 × 283 × 93 mm)

• Panel Cutout: ~394 × 293 mm (15.5 × 11.5 in)

Compliance

• Certifications: CE, UL, cUL, FCC Class A

• RoHS: Compliant (lead‑free)

• Status: Discontinued (legacy support only)
