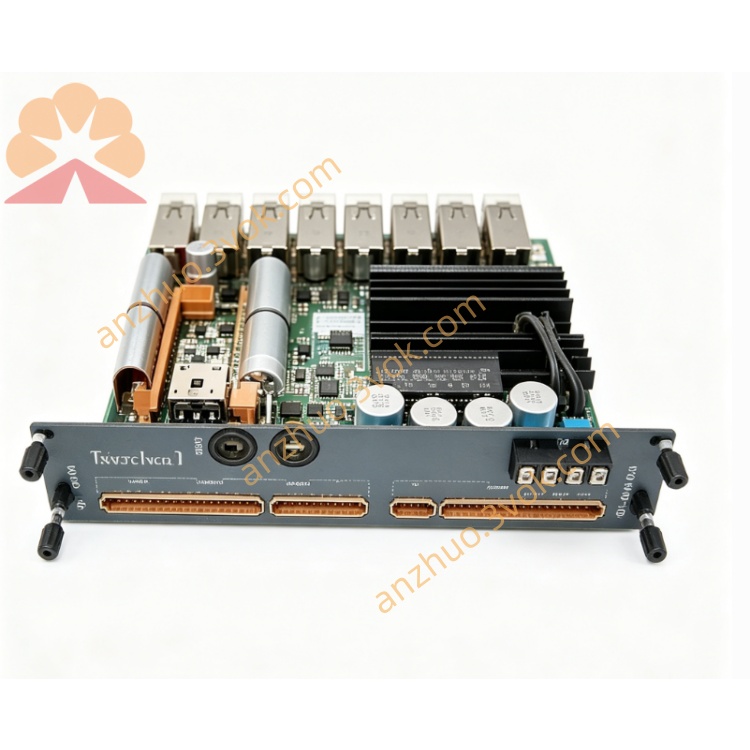

RS-091

Model: RS-091 Brand: KEBA Type: Industrial rack type switching power supply module Application: KEMRO K2 series control system, injection molding machine automation equipment Installation: Standard cabinet rack slot installation Protection class: IP20

Description





1. General Information

Model: RS-091
Brand: KEBA
Type: Industrial rack type switching power supply module
Application: KEMRO K2 series control system, injection molding machine automation equipment
Installation: Standard cabinet rack slot installation
Protection class: IP20

2. Electrical Parameters

Input voltage: 110V/230V AC automatic switching
Input frequency: 50/60Hz
Stable output: 24V DC
Rated output current: 5A to 10A
Built-in complete protection circuit
Protection function: over voltage, under voltage, overload, short circuit and reverse connection protection
Low output ripple, stable power supply performance

3. Main Functions

  1. Provide stable 24V DC power supply for the whole control system

  2. Supply power to main controller, bus modules and all I/O modules

  3. Built-in EMC filter circuit to reduce external electromagnetic interference

  4. Equipped with power indicator and fault alarm indicator

  5. Realize centralized power supply management inside the cabinet

4. Environmental Requirements

Operating temperature: 0℃ to +50℃
Storage temperature: -40℃ to +85℃
Working humidity: 5% to 95% RH, non-condensing
Keep good ventilation and heat dissipation during use

5. Compatible Modules

Match KEMRO-K2-200, KEMRO-K2-400 main controller
Compatible with KEMRO-BUS-8, PD-242/A backplane modules
Suitable for DC162, FB201 and other series of expansion modules

6. Installation Steps

  1. Cut off all mains power before installation and wiring

  2. Insert the power module into the fixed rack slot firmly

  3. Correctly connect AC input line and DC output line

  4. Strictly separate high voltage power line and low voltage signal line

  5. Check wiring condition, then switch on power to test working state

7. Safety Notes

Only professional electrical staff can install and maintain this module.
It is forbidden to disassemble the shell and change internal circuit arbitrarily.
Do not use beyond rated load range to avoid equipment damage.
Regularly check heat dissipation condition and terminal wiring tightness.
