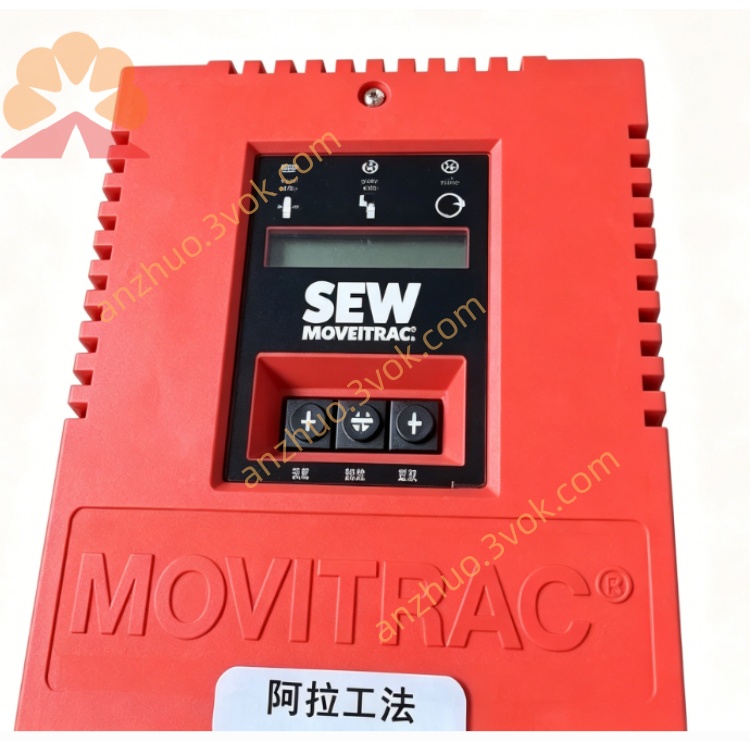

1. Model Code Definition

2. Electrical Specifications

• Rated Power: 3.0 kW

• Input Voltage: 3-phase AC 200~240V (230V nominal)

• Input Frequency: 50Hz / 60Hz

• Rated Output Current: 11.0 A

• Output Voltage: 0~230V three-phase AC

• Output Frequency Range: 0~400 Hz

• Control Mode: V/F open-loop control

• Overload Capacity: 150% rated current for 60 seconds

3. Environmental & Physical Parameters

• Protection Class: IP20

• Cooling Method: Natural air cooling

• Operating Temperature: 0°C ~ +45°C

• Storage Temperature: -25°C ~ +70°C

• Working Humidity: 5%~95% non-condensing

• Installation: Vertical wall mounting

4. Built-in Interfaces

• Standard RS485 communication interface

• Multi-channel digital input & relay output terminals

• 0-10V analog speed regulation input

• Multi-speed fixed frequency operation terminal

5. Main Functions

1. Adjustable acceleration and deceleration time

2. Built-in dynamic braking for rapid stop

3. Energy saving running mode

4. Local panel / external terminal / communication multi-control mode

5. Simple parameter setting and easy debugging

6. Full Protection Functions

• Over current protection

• Over voltage & under voltage protection

• Inverter over temperature protection

• Motor overload protection

• Output short circuit protection

• Earth fault protection

• Stall prevention protection

7. Installation & Wiring Rules

1. Cut off power supply before all wiring work

2. Separate power cables and control cables to avoid interference

3. Must connect reliable PE protective ground wire

4. Keep sufficient space around for heat dissipation

5. Avoid dusty, damp and corrosive working environment

8. Application Range

9. Compliance
