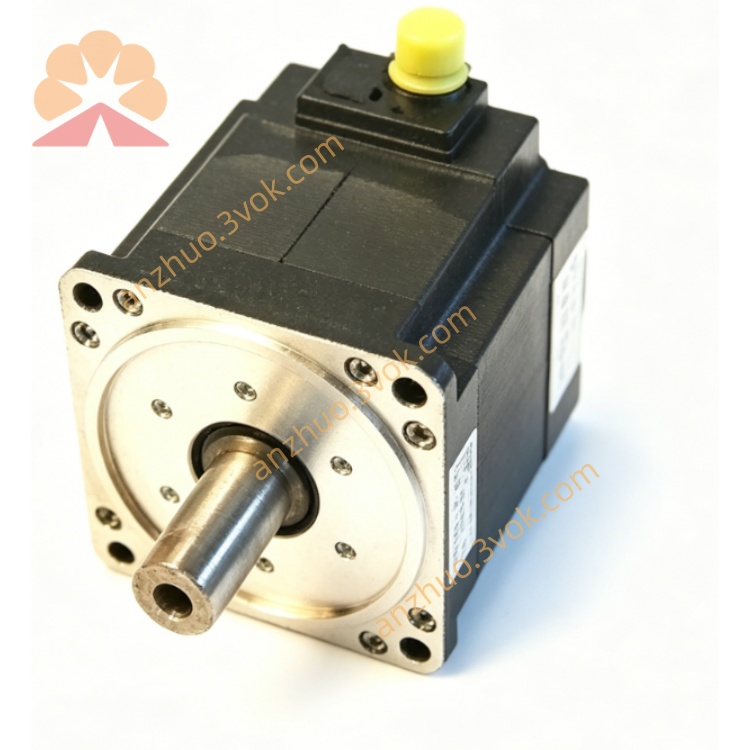

070-3SP-0000-C
Model: 070-3SP-0000-C
Brand: SEW-EURODRIVE
Product Type: Permanent magnet synchronous servo motor
Series: HTBL series
Description
070-3SP-0000-C
SEW Low Speed High Torque Servo Motor
English Version
1. Basic Information
Model: 070-3SP-0000-CBrand: SEW-EURODRIVEProduct Type: Permanent magnet synchronous servo motorSeries: HTBL series
2. Main Technical Parameters
Rated torque: 12.8 NmStandstill torque: 10.6 NmMaximum peak torque: 46 NmRated operating current: 2.4 AStandstill current: 2.0 AMaximum working current: 10.7 AMaximum allowable speed: 850 rpmMax operating voltage: 700 V DCProtection class: IP65Overall weight: 11.5 kg
3. Model Code Definition
070: Motor frame size specification3SP: Three-phase synchronous servo standard type0000: Standard coil, encoder and non-brake configurationC: 400V voltage grade standard version
4. Core Features
Excellent low speed high torque output performance
High overload capacity, stable dynamic response
Built-in high precision position feedback encoder
Solid mechanical structure, suitable for harsh industrial environment
Perfect matching with SEW MOVIAXIS and MOVIDRIVE servo drives
5. Application Fields
Packaging automation equipmentPrinting and textile industry machineryRotary positioning and heavy load conveying mechanismDirect drive low-speed precision motion control system
6. Remarks
This product belongs to SEW servo motor series, different from ordinary frequency converters, specially used for high-precision motion control occasions.
