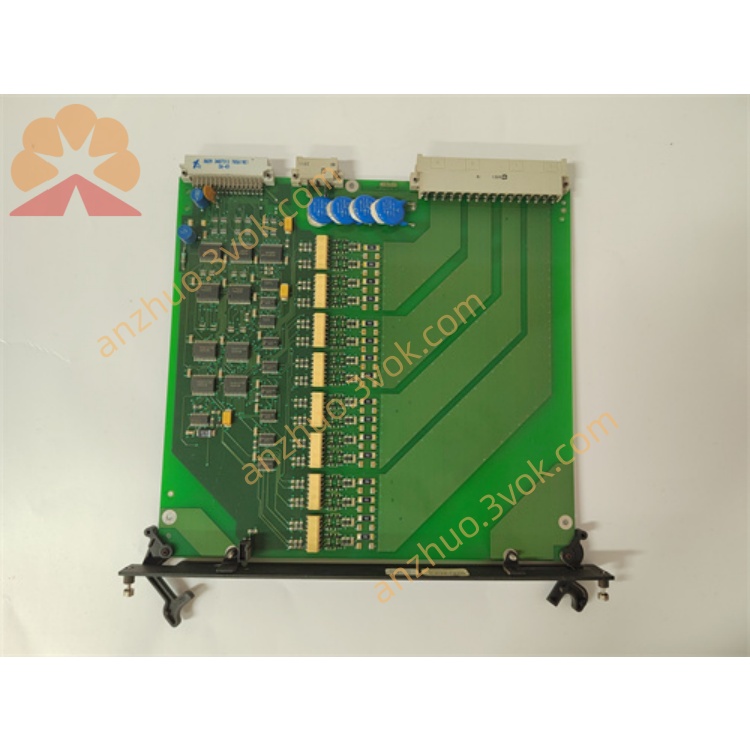

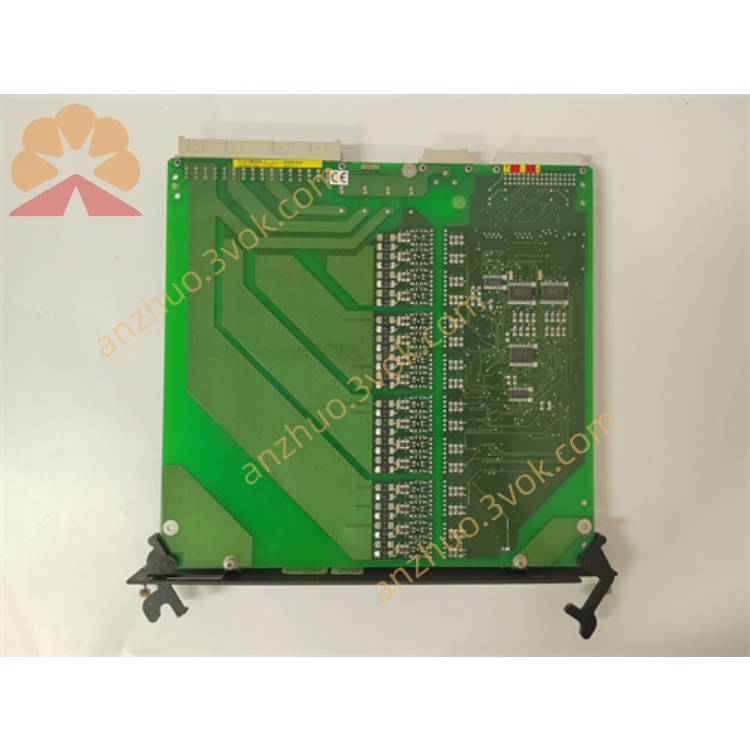

LE109A-1 Product Specification (English Version) 1. Product Overview Model: LE109A-1Brand: ALSTOMProduct Type: Digital Output Module (Relay Type)Compatible System: ALSTOM T1000/T2000, ALSPA C300 Distributed Control System (DCS)The LE109A-1 is an industrial-grade 16-channel relay output module designed by ALSTOM. It is specifically engineered for critical tripping circuits, signal control, and safety interlock applications in power, energy, rail transit, and automation control systems. Featuring high reliability, robust electrical isolation, and fast response, it serves as a core I/O component ensuring the safe and stable operation of automated systems. The LE109A-1 is an industrial-grade 16-channel relay output module designed by ALSTOM. It is specifically engineered for critical tripping circuits, signal control, and safety interlock applications in power, energy, rail transit, and automation control systems. Featuring high reliability, robust electrical isolation, and fast response, it serves as a core I/O component ensuring the safe and stable operation of automated systems. 2. Core Functions Multi-Channel Relay Output: Provides 16 independent SPST (Single-Pole Single-Throw) normally-open relay outputs for controlling external loads or driving actuators. High Electrical Isolation: Offers high-level galvanic isolation between channels and between channels and the backplane, effectively suppressing interference and protecting the core control system. Real-Time Status Indication: Each channel is equipped with an independent LED indicator to clearly show the output ON/OFF status, facilitating on-site diagnosis. Safe & Reliable Protection: Utilizes high-specification contact materials with excellent arc and corrosion resistance, supporting long-life and high-load cycle operation. Fast Response: Extremely short signal response time ensures real-time execution of control commands, meeting high-speed and high-precision control requirements. 3. Technical Specifications 3.1 Electrical Parameters Output Channels: 16 channels, SPST Normally Open (Form A) Contact Rating: 250V AC / 2A (Resistive Load); 30V DC / 2A Contact Material: AgCdO (Silver Cadmium Oxide), excellent anti-arc capability Isolation Voltage: 500V RMS (Channel-to-Channel, Channel-to-Backplane) Response Time: ≤ 10ms (Operate), ≤ 5ms (Release) Mechanical Life: ≥ 10⁷ Operations Electrical Life: ≥ 10⁵ Operations (@ Rated Load) Operating Voltage: 24V DC (Backplane Powered) Power Consumption: ≤ 5W 3.2 Physical & Environmental Parameters Dimensions: Standard Eurocard format (Approx. 300mm × 240mm × 20mm) Mounting: Plug-in type, fits ALSTOM LE100 series I/O backplanes Operating Temperature: 0°C ~ +60°C Storage Temperature: -40°C ~ +85°C Relative Humidity: 5% ~ 95% (Non-condensing) Protection Rating: IP20 (Must be installed in a sealed control cabinet) Weight: Approx. 0.8kg 3.3 Compatibility & Certification System Compatibility: ALSTOM T1000, T2000, ALSPA C300 DCS Certifications: CE, UL, compliant with IEC 61508 SIL2

4. Product Features Industrial-Grade Stability: Built with military-grade components and precision engineering, resistant to high vibration and electromagnetic interference in industrial environments. Long-Life Design: High-quality relay contacts ensure an exceptionally long service life even under frequent on/off cycling. Plug-and-Play: Supports hot-swapping for online maintenance and replacement without system interruption. High Compatibility: Fully compatible with ALSTOM's mainstream control systems for seamless integration without adapters. Safety Priority: Specifically designed for critical tripping circuits, serving as a safety component for key processes in power and energy sectors.

5. Applications Power Industry: Gas/Steam Turbine Control, Generator Protection, Substation Circuit Breaker Control, Critical Tripping Circuits. Energy & Petrochemical: Safety Interlocks and Emergency Shutdown Systems (ESD) for boilers and reactors. Rail Transit: Safety control for train traction and signaling systems. Industrial Automation: Sequential control, drive circuits, and alarm outputs for heavy machinery. 6. Ordering Information Model Number: LE109A-1 Packaging: Anti-static bag + Protective carton Warranty: 12 Months (New, Original) Lead Time: 3-5 Days (In Stock)
