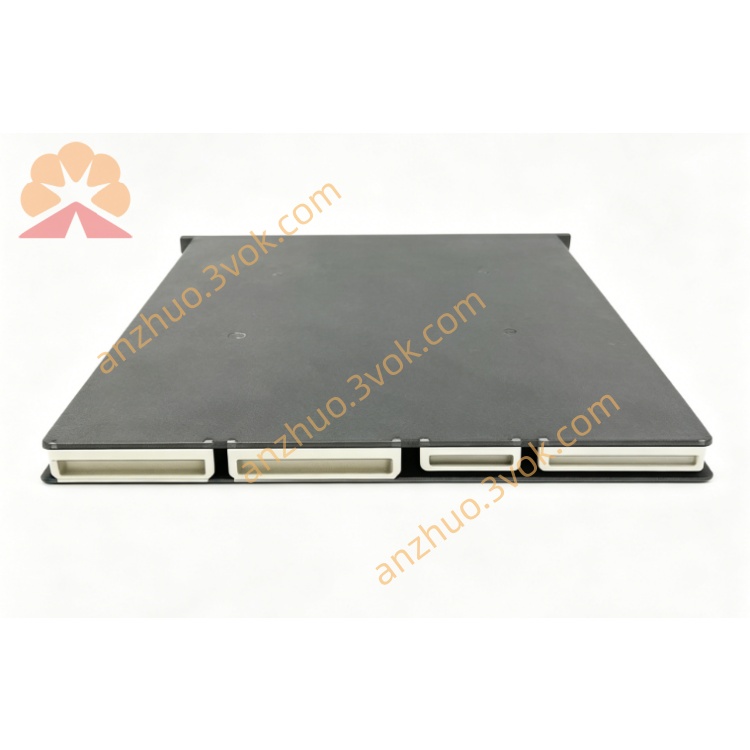

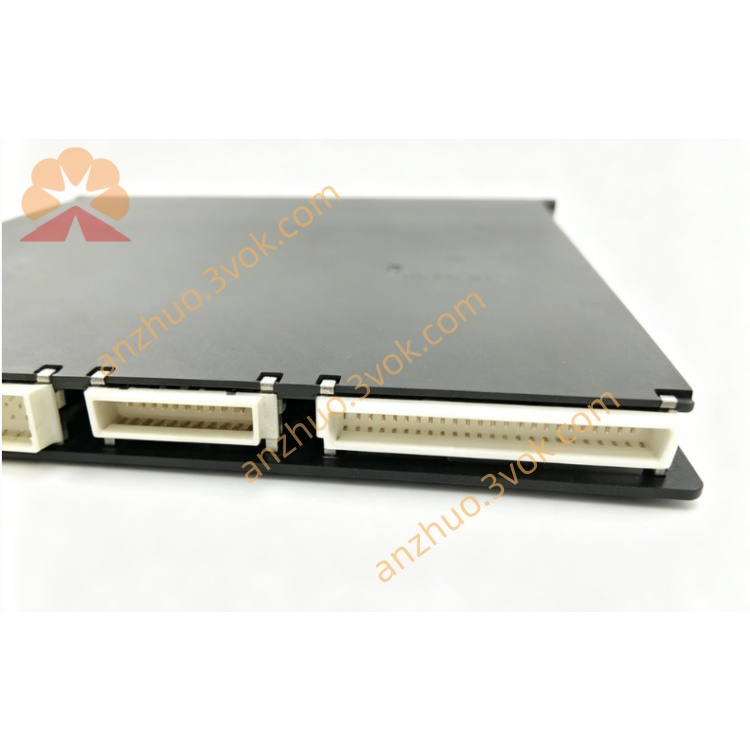

TRICONEX 3701

32Ch 0–10VDC TMR Analog Input Module

English Specification (No Images)

1. General Description

2. Basic Information

• Model: 3701

• Type: 32Ch Differential Analog Input (TMR)

• Signal Range: 0–10VDC / 4–20mA (500Ω shunt)

• System Compatibility: Tricon V9 / V10 / V11

• Safety Level: SIL3 (IEC 61508 / IEC 61511)

• Certifications: TUV, FM, CSA, ATEX/IECEx

• Architecture: TMR, 2oo3 voting

• Status: In production & supported

3. Key Features

• 32 differential channels, 4‑wire, DC‑coupled

• 12‑bit resolution, high linearity

• TMR fault tolerance, 2oo3 voting logic

• Channel‑to‑ground isolation: 1,500VDC

• Diagnostics: open/short circuit, out‑of‑range, TMR mismatch, module health

• Update time: <55ms

• Hot‑swappable; online replacement

• High noise immunity: –80dB common‑mode rejection (DC–100Hz)

• Overvoltage protection: 150VDC / 115VAC continuous

4. Technical Parameters

4.1 Analog Input

• Voltage: 0–10VDC

• Current: 4–20mA (external 500Ω shunt)

• Channels: 32, differential, isolated

• Resolution: 12 bits

• Accuracy: ±0.15% FSR (0°C to 60°C)

• Input impedance: >1MΩ (voltage)

• Update rate: <55ms

4.2 Safety & Isolation

• Voting: 2‑out‑of‑3 (2oo3)

• Fault coverage: ≥99%

• Isolation: 1,500VDC (channel–ground)

• Diagnostics: open/short, over/under‑range, TMR mismatch

4.3 Environmental

• Operating temp: –40°C to +70°C

• Storage temp: –40°C to +85°C

• Humidity: 5%–95%, non‑condensing

• Vibration: 5–200Hz, 2G

4.4 Power & Mechanical

• Backplane: 5VDC

• Power consumption: ≤15W

• Dimensions: 178 × 127 × 63mm

• Weight: ~0.8kg

5. Function

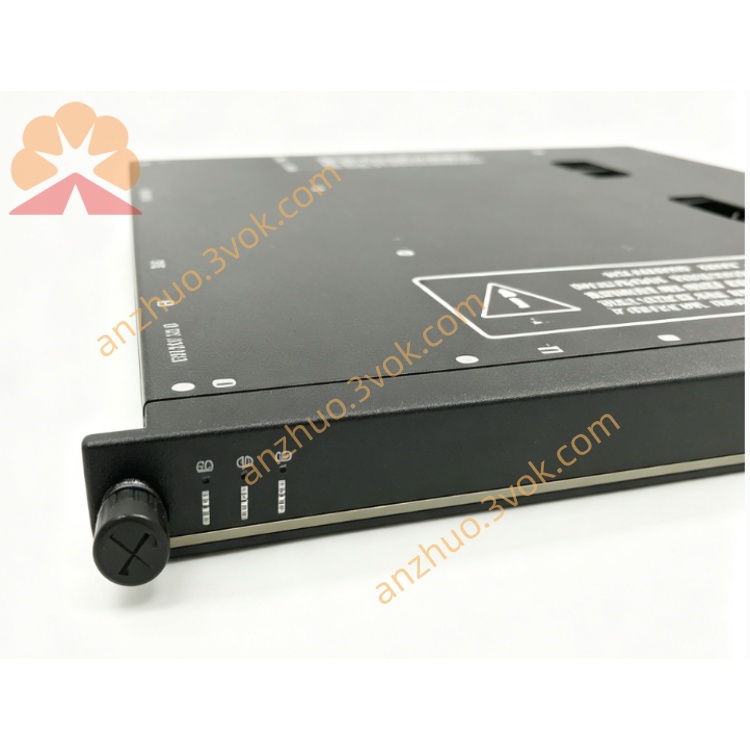

6. LED Indicators

• PWR (Green): Power OK

• RUN (Green): Normal operation

• FAULT (Red): Module/channel fault

• CH (Yellow): Channel active

7. Installation & Configuration

1. Insert into Tricon I/O slots

2. Wire 0–10VDC or 4–20mA (500Ω shunt) to terminal base

3. Configure ranges/diagnostics via TriStation 1131

4. Verify LEDs and data quality

8. Typical Applications

• Pressure, temperature, level, flow monitoring (SIL3, 0–10V transmitters)

• ESD/SIS analog sensing loops (higher voltage)

• BMS combustion parameters

• Oil/gas, chemical, power plant safety instrumentation

9. Maintenance

• Hot swap faulty modules online

• Calibrate annually or per site procedure

• Check wiring/shunts periodically

• Review fault/SOE logs

10. Compatibility

• Terminal base: 3701TB series

• Software: TriStation 1131

• Compatible processors: 3008, 3005 series
