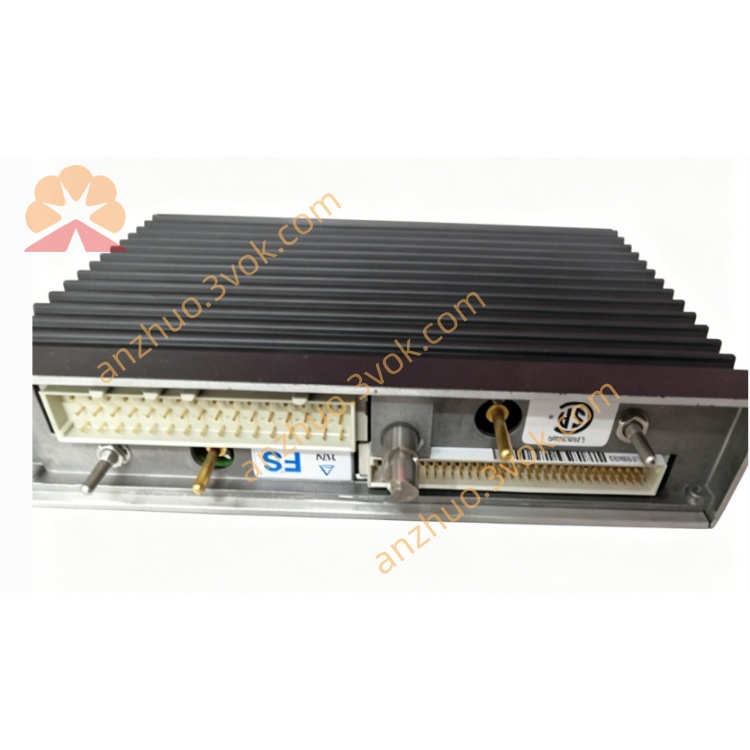

TRICONEX 3451

TRICONEX 3451 is a triple modular redundant digital output module designed for Tricon V9/V10/V11 SIS safety instrumented system. It provides 32-channel isolated 24VDC solid state output with 2-out-of-3 voting logic, fully compliant with SIL3 safety standard. It is widely applied in ESD emergency shutdown system, BMS burner management system and industrial safety interlock control.

Model: 3451Type: 32CH 24VDC TMR Digital Output ModuleApplicable System: Tricon V9, V10, V11Safety Level: SIL3 IEC61508Certification: TUV, FM, CSASupply Status: Available for supply and maintenance

Adopt standard TMR triple redundant structure with 2oo3 fault tolerance32 channels independent isolated output, high integrationSolid state relay output, fast response and long service lifeSupport complete channel diagnosis including open load, short circuit and over current detectionAllow online hot swap without system shutdownEach channel equipped with over current and surge protectionFail-safe state can be configured by softwareExcellent anti-interference performance for harsh industrial environment

Rated output voltage: 24VDCWorking voltage range: 18VDC ~ 33VDCSingle channel continuous current: 0.5ASingle channel maximum current: 0.7AOutput type: solid state relayOff-state leakage current: ≤100μAResponse time: ≤1msChannel isolation voltage: 1500VAC

Control structure: Triple Modular RedundancyVoting mode: 2 out of 3 votingFault diagnosis coverage: ≥99%System availability: 99.999%

Operating temperature: -40℃ ~ +70℃Storage temperature: -40℃ ~ +85℃Relative humidity: 5%~95%, non-condensingVibration resistance: 5~200Hz, 2G

Backplane power supply: 5VDCModule total power consumption: ≤18W

Receive control commands from main processor module, drive field 24VDC loads including solenoid valves, safety relays and audible visual alarms. Realize automatic self-diagnosis and fault information upload. Support SOE sequence of events recording to accurately record output action time.

PWR Green light: Module power supply normalRUN Green light: Module operates normally and communication is normalFAULT Red light: Module fault or channel abnormality alarmCH Yellow light: Corresponding channel output activated

Insert 3451 into Tricon system I/O slotConnect 24VDC field loads to matched terminal baseComplete logic programming and fault parameter setting via TriStation 1131Check all indicators keep normal state after power on

ESD emergency shutdown valve controlBMS burner safety executing mechanism outputFire and gas detection system linkage controlPower plant and chemical plant safety interlock loopAll kinds of SIL3 grade process safety control loops

Replace faulty module by hot swap without system stopCheck field wiring and terminal connection regularlyCheck system fault log and SOE record periodicallyMatch with Tricon main controller such as 3008 and 3005

Matching terminal base: Special 32-channel DO terminal boardConfiguration software: TriStation 1131Compatible main module: 3008, 3005 series processor module
