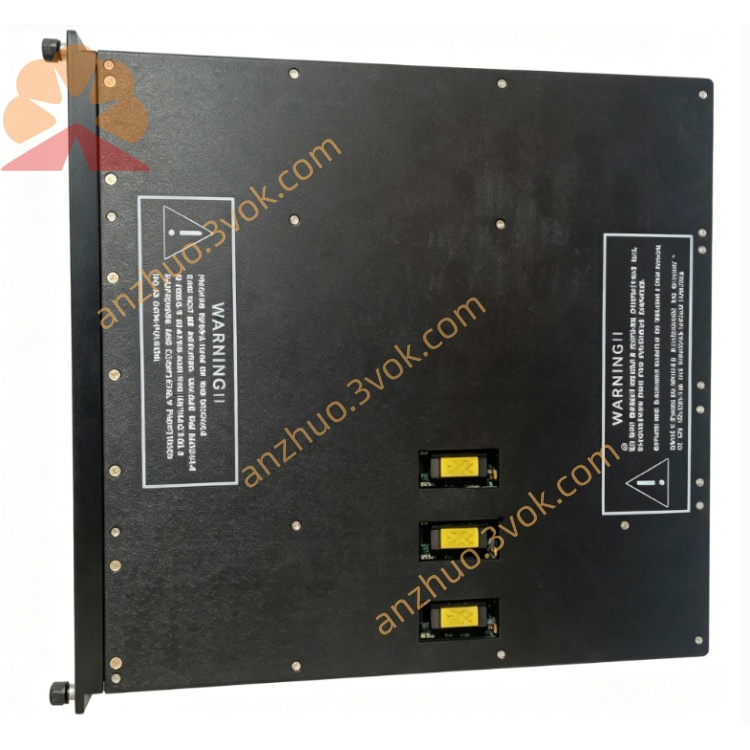

TRICONEX 3003

Communication / Processor Module (TMR, SIL3)

Official English Specification (consistent format: 2651/2652/2658/2700/2750/2755/3002)

1. General Description

2. Model Information

• Model: 3003

• Type: Communication / Processor Module (TMR)

• System Series: Triconex Tricon / Trident SIS

• Safety Level: SIL3 (IEC 61508)

• Certification: TÜV, FM, CSA, ATEX, IECEx

• Part Number: 3003‑010

• Status: Active / In production

3. Main Features

• Triple Modular Redundancy (TMR): 3 independent processing cores, 2oo3 fault‑tolerant voting

• Dual Role: System Processor + Communication Gateway

• High‑Speed Processing: 32‑bit CPU, real‑time deterministic execution

• Redundant Ethernet: 2×10/100Mbps ports (Modbus TCP/IP, Tricon Peer‑to‑Peer)

• Serial Ports: 2×RS‑232/485 (Modbus RTU, ASCII)

• Hot‑Swappable: Online replacement without system shutdown

• Full System Diagnostics: CPU, memory, I/O, and communication health monitoring

• SOE Timestamps: 1ms resolution for sequence‑of‑events logging

4. Technical Parameters

4.1 Processing

• Architecture: TMR (3× independent 32‑bit CPUs)

• Clock Speed: 100MHz

• Memory: 16MB RAM / 8MB Flash

• Scan Time: ≤10ms (typical logic)

• Voting: 2oo3 fault‑tolerant, mid‑value selection

4.2 Communication Interfaces

• Ethernet: 2×10/100Mbps (RJ45), Modbus TCP/IP, Tricon P2P

• Serial: 2×RS‑232/485 (DB9), Modbus RTU, ASCII

• Protocol Support: Modbus TCP/RTU, Tricon Peer‑to‑Peer, OPC UA

• Isolation: Ethernet/serial isolated from backplane (1500Vrms)

4.3 Redundancy & Safety

• Diagnostic Coverage: >99%

• System Availability: 99.999%

• Safety Certification: SIL3 (IEC 61508), TÜV, FM, CSA

4.4 Environmental

• Operating Temperature: −20°C to +60°C

• Storage Temperature: −40°C to +85°C

• Relative Humidity: 5%–95% non‑condensing

• Vibration: 5–200Hz, 1g

• Protection: IP20

4.5 Power & Physical

• Backplane Power: 5VDC

• Power Consumption: ≤15W

• Dimensions: Standard Trident full‑size module (150×130×35mm)

• Weight: ~1.2kg

5. Function Overview

• System Control: Executes safety logic, manages I/O modules (2700/2755/3002), and coordinates TMR voting

• Communication Gateway: Connects SIS to DCS, SCADA, and third‑party systems via Ethernet/serial

• Data Logging: Supports SOE and historical data for compliance and troubleshooting

• Redundancy Management: Ensures seamless failover between TMR channels; no single point of failure

6. LED Indicators

• PWR (Green): 5VDC backplane power OK

• RUN (Green): Module active, TMR sync normal

• FAULT (Red): CPU/memory/communication fault or voting mismatch

• COM (Yellow): Ethernet/serial communication activity

• I/O (Yellow): I/O module communication status

7. Installation & Configuration

1. Insert 3003 into Trident baseplate full‑size slot (CPU position)

2. Connect Ethernet/serial cables to front‑panel ports

3. Use TriStation 1131 to program safety logic, configure communication protocols, and set SOE

4. Verify: PWR+RUN green; no FAULT red; COM/I/O LEDs reflect activity

8. Typical Applications

• ESD: Emergency shutdown logic, pressure/temperature/level safety loops

• BMS: Burner management, flame safety, fuel gas valve control

• FGS: Fire and gas detection, deluge system control

• Turbine Control: Speed/temperature/pressure monitoring, trip logic

• DCS/SCADA Gateway: SIS‑to‑DCS data exchange, Modbus TCP/RTU communication

9. Maintenance

• Hot‑swap faulty 3003 without downtime

• Check Ethernet/serial cable connections

• Review fault logs and SOE via TriStation

• Compatible with Trident I/O modules (2700/2755/3002)

10. Compatibility

• Compatible Systems: Triconex Tricon, Trident SIS

• Configuration Software: TriStation 1131 (v4.0+)

• Matching I/O: 2700 (DI), 2755 (AI), 3002 (DO/PI)

• Model: 3003

• Description: TMR Processor & Communication Gateway Module, SIL3
