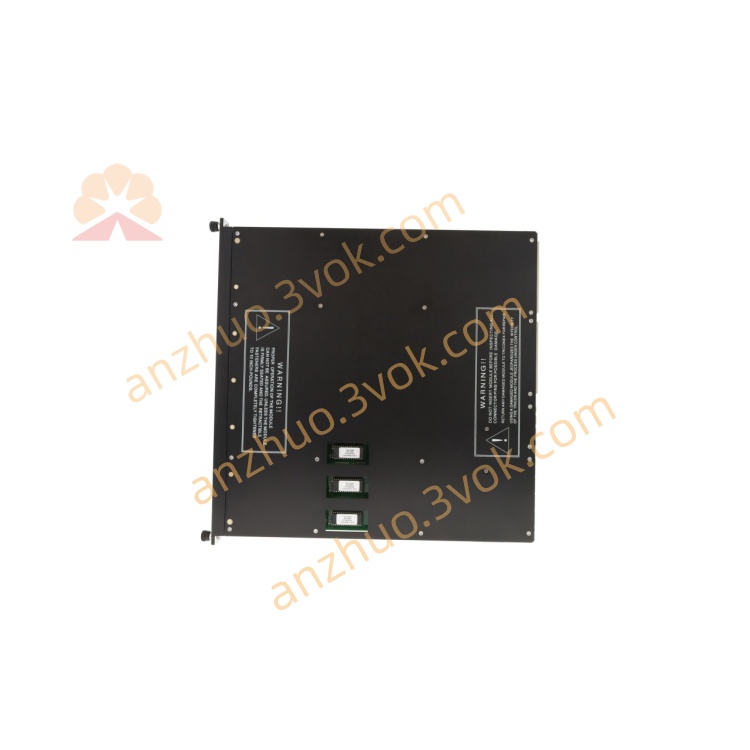

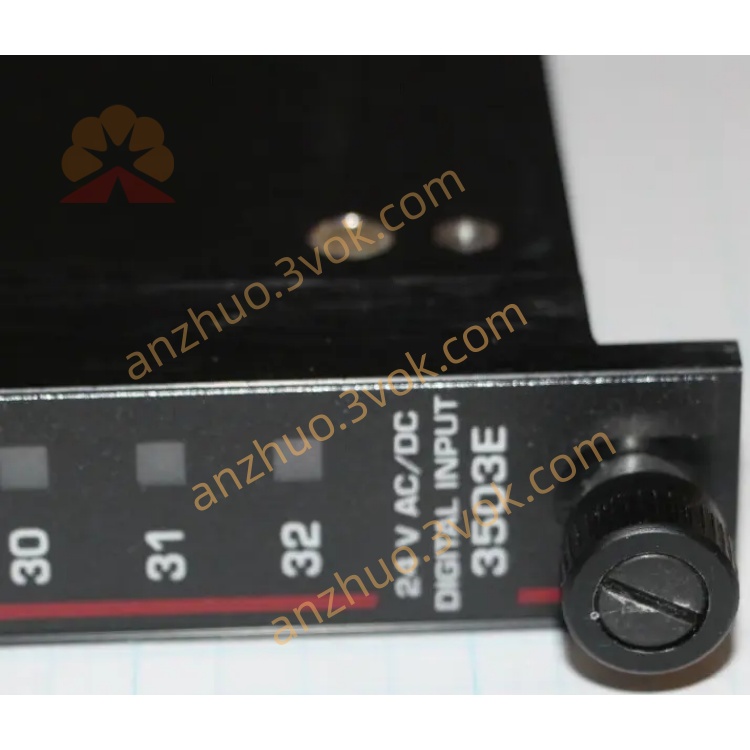

TRICONEX 3503E (SIS Digital Input Module · TMR Triple Modular Redundancy) Brand / Series: TRICONEX (Schneider Electric), Tricon Safety Control System Model: 3503E Type: 32-channel Digital Input Module (DI), TMR triple modular redundancy, SIL 3 safety level. ## I. Basic Parameters Input Channels: 32 DI channels, divided into 4 groups × 8 channels Rated Voltage: 24V DC (Operating Range: 20～42.5V DC) Input Type: Dry Contact (Passive) / Wet Contact (Active 24V) Safety Level: SIL 3 (IEC 61508/61511, TÜV Certified) Operating Temperature: ‑40℃ ~ +70℃; Storage Temperature: ‑40℃ ~ +85℃ Isolation Withstand Voltage: 1500V AC between channels, 2500V AC on system side Response Time: ≤2ms; Software-configurable filtering (0～500ms) Power Consumption / Dimensions / Weight: ≤20W; Approx. 146×89×30mm; Approx. 0.5kg Certifications: CE, UL, FM, CSA, ATEX, IECEx ## II. Core TMR Redundancy Triple Modular Architecture: Each signal is collected by 3 independent channels with 2-out-of-3 (2oo3) voting logic Single-point Fault Tolerance: Failure of any single channel will not affect system operation with no single point of failure risk On-board Diagnostics: Real-time self-inspection for channel short circuit/open circuit, power supply and internal circuits Hot Swap: Support live replacement without system shutdown ## III. Interface and Wiring Connector: 56-pin, matched with dedicated terminal boards (e.g. 9753‑210) Status Indication: Dual-color LED for each channel; LED indicators for module power / operation / fault TriBus: High-speed redundant communication with Tricon main controllers (e.g. 3008, 3501E) ## IV. Typical Applications ESD Emergency Shutdown: Emergency stop buttons, fire/gas detection, safety valve status monitoring F&G Fire and Gas System: Signal acquisition for flame detectors, smoke and flammable gas sensors Power / Oil & Gas / Chemical Industry: Generator unit interlock, boiler protection, compressor safety control Same-series Matching Devices: Main Controller 3501E/3008, Communication Module 4351B, Analog Module 3721/3700A
