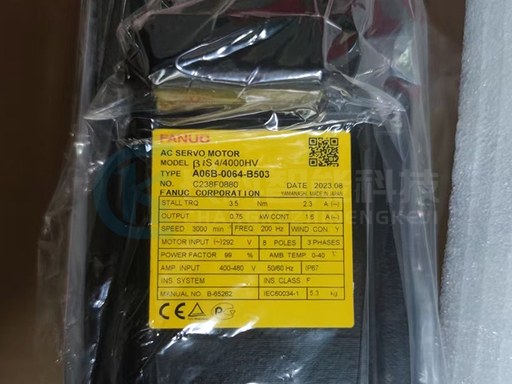

2. Electrical Specifications

• Rated Voltage: 400–480 VAC 3-phase

• Rated Power: 0.75 kW

• Rated Torque: 3.5 N·m

• Rated Speed: 3000 RPM

• Max Speed: 4000 RPM

• Rated Current: 1.6 A

• Frequency: 200 Hz

• Insulation Class: F

3. Mechanical & Environmental

• Cooling: Natural air cooling

• Mounting: Flange mount

• Operating Temp: 0°C ~ +40°C

• Storage Temp: -20°C ~ +60°C

• Humidity: 40%–80% RH (non-condensing)

• Altitude: ≤1000 m

• Vibration: 0.5g (10–100 Hz)

4. Key Features

1. High voltage (400V) design, suitable for high-power and long-distance transmission.

2. Integrated 24V brake, ideal for vertical axes and suspended loads.

3. IP67 protection, resistant to dust and water, suitable for harsh environments.

4. 128iA high-res encoder, ensures precise positioning and smooth motion.

5. Compact & lightweight, high power density, easy installation.

6. Brushless & maintenance-free, long service life, low noise.

5. Applications

• CNC machine tools (lathes, mills, machining centers)

• Vertical axis automation equipment

• Industrial robot joints

• High-speed precision positioning systems

• 400V-class industrial motion control systems

6. Installation & Maintenance

• Installation: Rigid flange mounting; precise shaft alignment; use shielded servo cables.

• Maintenance: Regularly check noise, temperature, and vibration; keep surface clean; bearings are lifetime-sealed.

• Safety: Cut off power and wait ≥15 minutes before maintenance; do not touch rotating shafts.

7. Troubleshooting

• No start: Check 400V power, wiring, brake release signal, and amplifier alarms.

• Overheating: Check overload, ambient temperature, and ventilation.

• Position error: Check encoder cable and connector.

• Brake failure: Verify 24VDC brake power supply.
