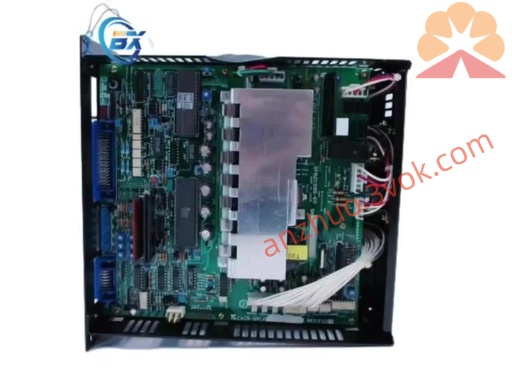

CACR-SR15SB1AF Yaskawa VS-800 Series Servo Drive Specification Model Description CACR-SR15SB1AF • CACR-SR: Yaskawa VS-800 classic SERVOPACK series • 15: Rated power 1.5kW • S: S-type exclusive housing • B: 200V class hardware • 1A: Standard firmware version • F: Factory customized version with special I/O and fixed parameters  Technical Parameters Item Specification

Manufacturer Yaskawa ElectricSeries VS-800 (CACR-SR)Model CACR-SR15SB1AFRated Output Power 1.5 kWInput Voltage 3-phase AC200～230VFrequency 50/60 HzRated Current 18 APeak Current 54 A (300% overload, 3s max)Control Mode Position control / Analog speed controlEncoder 2500p/r incremental, 5V line driverCooling Built-in fan forced air coolingProtection Grade IP20Operating Temp 0～40°CHumidity ≤80% RH (non-condensing) Replacement Note 1. This is S-type housing, not compatible with BY/BZ/BE/AD/AA models. 2. Suffix F is customized version, standard model cannot be used for direct replacement. 3. The only correct replacement is the exact same model: CACR-SR15SB1AF.
