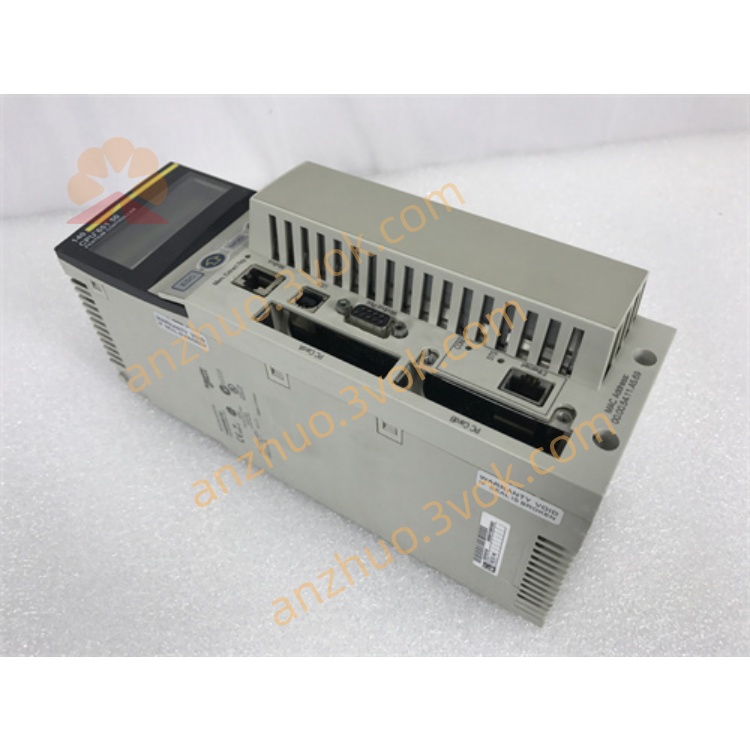

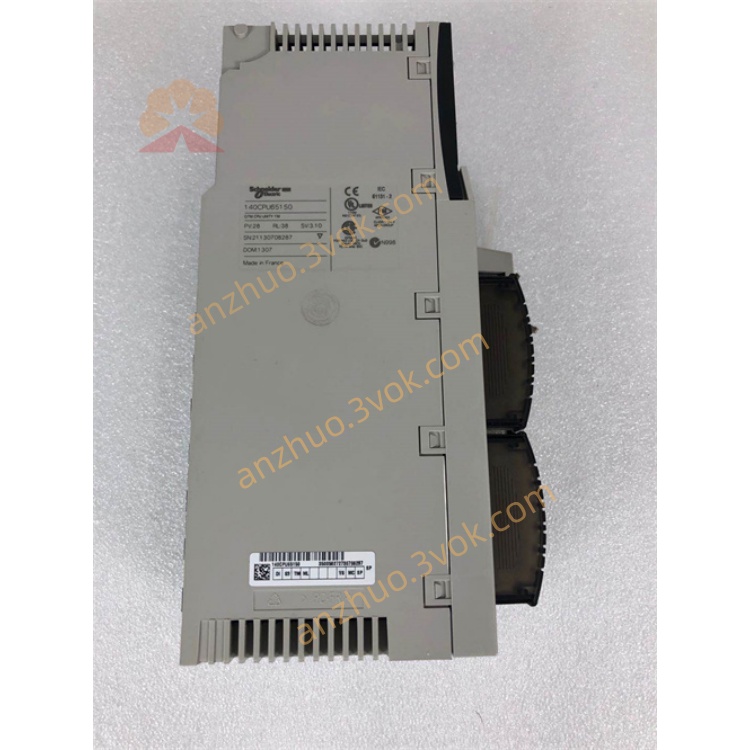

140CPU65260 Detailed Product Description

1、 Basic product information

Brand manufacturer: Schneider Electric

Product Series: Modicon Quantum (Quantum Series PLC)

Model: 140CPU65260

Product Category: High Performance PLC Central Processing Unit (CPU)

Description: Pentium Unity processor (266MHz), 3MB memory, integrated multiple communication interfaces, supports large-scale I/O and redundant architecture, suitable for medium to large complex industrial control projects

Adaptation system: Quantum's full range of local/remote RIO racks, supporting hot standby redundancy and distributed control networks

2、 Appearance and structural parameters

Shell color: Industrial gray

Installation method: Standard Quantum backplane slot installation, tool free plug-in locking

Protection level: IP20

Dimensions (width x height x depth): Standard Quantum module dimensions

Weight: Approximately 0.8kg

Status indicator light:

Green LED: Ethernet Activity (COM)

Red LED: Ethernet conflict prompt

Operation switch: Key switch (switch between run/stop/lock mode)

Backup battery: Built in 3V lithium battery (shelf life of 10 years, service life of 12mAh)

Bus current consumption: 2760mA

3、 Core Performance Specifications

1. Processor and Memory

Processor: Pentium Unity processor

Clock frequency: 266MHz

Internal RAM: 3072kB (3MB) for program and data storage

System firmware: compatible with Unity Pro V2.0 and above versions

2. I/O processing capability

Discrete I/O capacity: 62kB (bit reference), maximum support 4096 points

Register I/O capacity: 64kB (word reference)

Local rack support: 2 local racks, expandable to multiple remote RIO racks

Task processing:

Main task system overhead: 1ms

Fast task system overhead: 0.2ms

Support high-speed interrupts and precise timestamp I/O

3. Communication interface (4-channel integration)

table

Interface type, specification, and purpose

Ethernet port 10/100Mbps programming, upper computer communication, distributed control

Modbus RS-232/RS-485 serial device communication and slave control

Modbus Plus RS-485 Industrial Fieldbus, Peer to Peer Network Communication

USB interface USB 1.1 program download, local debugging

Optional expansion module: Supports 6 types of communication expansion cards including Ethernet, Profibus DP, Sy/Max, etc

4、 Electrical and Environmental Parameters

Power supply: 5.1V DC power supply for the backplane, no additional power supply required

Working temperature: 0 ° C~+60 ° C

Storage temperature: -40 ° C~+85 ° C

Relative humidity: 5% to 93% (without condensation)

Anti vibration: 10~57Hz, amplitude 1.5mm

Impact resistance: 15g/11ms pulse impact

Certification standards: CE, UL 508, CSA, Class 1 Div2 explosion-proof certification

5、 Core product functions

High performance complex control

266MHz processor+3MB memory, supporting large-scale programs, complex algorithms (PID, motion control), high-speed data processing, suitable for medium to large automation projects.

Multi protocol communication integration

4 native communication ports+expansion slots, compatible with mainstream protocols such as Ethernet, Modbus, Modbus Plus, Profibus DP, etc., making it easy to interface with upper computers, touch screens, frequency converters, and remote I/O.

Redundancy and high reliability

Support hot standby architecture and achieve seamless switching between master and slave PLCs through fiber optic interconnection; Built in multi-level diagnosis (RAM, program verification, processor status), fault self detection and alarm, ensuring continuous operation.

Flexible I/O Expansion

Dual local racks+multi range RIO, with a maximum of 4096 I/O points, suitable for large-scale pipeline, process control, and distributed device monitoring scenarios.

Convenient programming and debugging

Compatible with Unity Pro software, supporting IEC 61131-3 standard language (ladder diagrams, structured text, function blocks); USB/Ethernet fast download program, LED indicator light for real-time diagnosis of communication status.

6、 Typical application scenarios

Chemical, oil and gas, power plant process control (temperature/pressure/flow closed-loop control)

Automobile manufacturing, large-scale assembly lines in electronic factories, motion control, high-speed sorting

Centralized monitoring and interlocking of water treatment, HVAC building electromechanical systems

Rail transit, logistics and warehousing distributed equipment control, remote data collection

Industrial scenarios that require high computing power, multi device networking, and high reliability redundancy

7、 Installation and usage precautions

Installation/disassembly should be carried out under system power-off or hot plug specifications to avoid damaging the backplane interface;

Built in lithium battery for power-off maintenance, regular check of battery level, timely replacement upon expiration, to prevent data loss;

Communication wiring distinguishes between RS-232/RS-485, and it is recommended to use shielded Ethernet cables for Ethernet ports to reduce interference;

Programming software requires Unity Pro V2.0 or above, with firmware version matching to avoid compatibility issues;

When configuring redundancy, the master and slave CPUs need to be of the same model and firmware version to ensure stable switching synchronization.

8、 Summary of Product Features

140CPU65260 is a mid-range high-performance CPU in the Quantum series, with a main frequency of 266MHz, 3MB of memory, multiple communication interfaces, support for redundancy and large-scale I/O, balancing computing power, communication flexibility, and reliability. It is the core control unit for medium and large-scale industrial automation projects.
