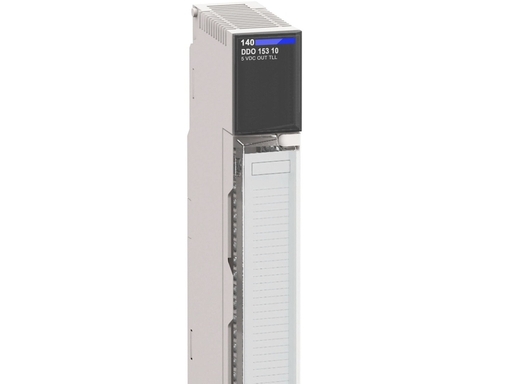

140DDO35310

Modicon Quantum – 24 V DC Discrete Output Module

32 Points, Sink, Standard

DESCRIPTION

VOLTAGE RATINGS

• Nominal Output Voltage: 24 V DC

• Operating Range: 19.2 V DC to 30 V DC

• Absolute Maximum: 50 V (1 s decaying pulse)

• Voltage Drop @ 0.5 A: < 0.4 V

CURRENT RATINGS

• Per Channel (max): 0.5 A

• Per Group (max): 4 A

• Module Total (max): 16 A

• Surge Current (per point, 0.5 ms): 5 A

• Leakage Current (OFF, 30 V): ≤ 0.4 mA

TIMING

• Response Time OFF → ON: ≤ 1 ms

• Response Time ON → OFF: ≤ 1 ms

ISOLATION

• Channel ↔ Backplane: 1780 Vrms DC, 1 min

• Between Groups: 500 Vrms DC, 1 min

PROTECTION & FUSING

• Per Group: 5 A internal fuse

• Per Channel (recommended external): 3 A

• Protection: Electronic short‑circuit & overcurrent per channel

POWER CONSUMPTION

• Backplane Current (5 V DC): 330 mA

• Power Dissipation: 5 W typical

LED INDICATORS

• OUT0–OUT31 (green): ON = channel active

• ACTIVE (green): ON = module powered & communicating

• FAULT (red): ON = fuse blown, field power loss, overcurrent

ENVIRONMENTAL

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: −40 °C to +85 °C

• Relative Humidity: 5 % to 95 %, non‑condensing

• Altitude: Up to 5000 m (no derating)

• ESD Immunity: Contact ±4 kV, air ±8 kV

• Protection Class: IP20 (front)

MECHANICAL

• Dimensions (H × W × D): 35 × 122 × 52 mm

• Weight: Approx. 0.45 kg

• Terminals: Screw terminals, 0.5–2.5 mm² (AWG 24–14)

ADDRESSING

• Size: 2 output words

• Range: %Q0 … %Q31

CERTIFICATIONS

• CE (LVD, EMC)

• UL 508

• CSA C22.2 No. 142

• FM Class I, Division 2

• RoHS compliant

DIFFERENCE: 140DDO35301 vs 140DDO35310

• 140DDO35301: Source (positive logic)

• 140DDO35310: Sink (negative logic)
