(Schneider Modicon Quantum Series - Ethernet Remote I/O Slave Adapter)

1、 Basic Information

Manufacturer: Schneider Electric

Product Series: Modicon Quantum (Quantum Series PLC)

Model: 140CRA31200

Product Type: Ethernet RIO Drop Adapter (Ethernet Remote I/O Slave Adapter)

Functional positioning: As a communication interface for remote I/O stations (RIO Drop), it enables high-speed data exchange between Quantum master station and distributed I/O modules through Ethernet.

Compatible with main station: 140CRP31200 (Quantum Ethernet RIO main station adapter).

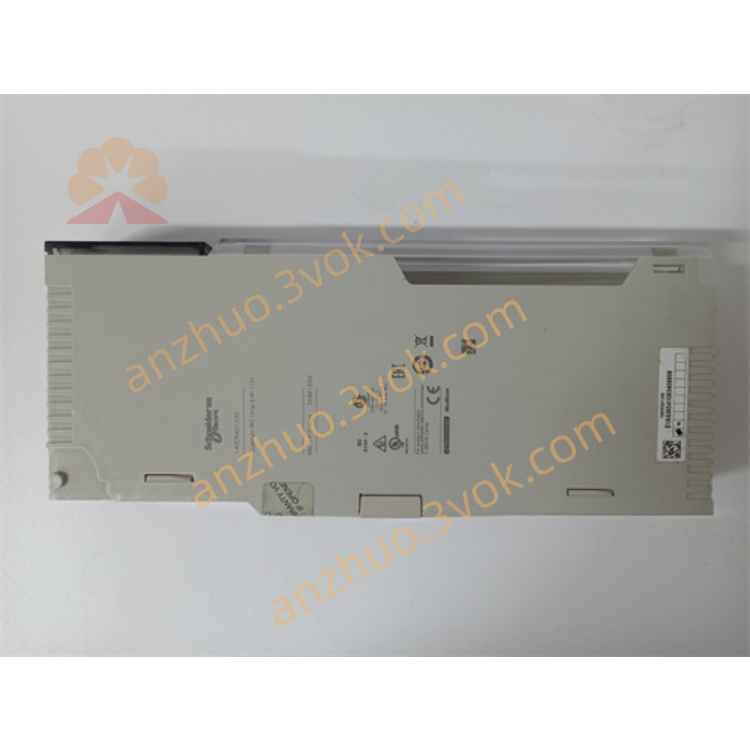

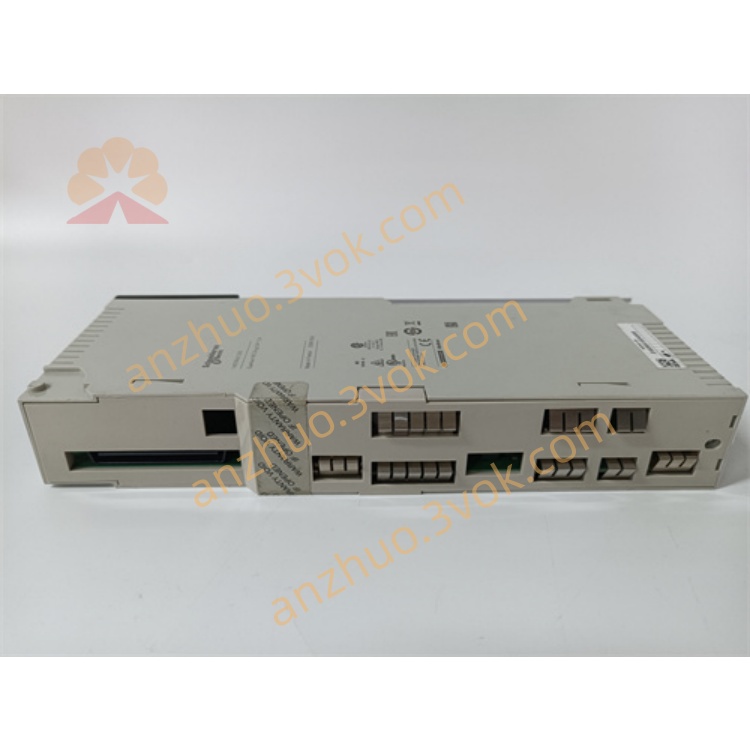

2、 Appearance and Structure

Color: Industrial Grey

Material: industrial flame-retardant plastic, anti-aging, oil stain resistant, and electromagnetic interference resistant

Dimensions (width x height x depth): approximately 167mm x 50mm x 33mm

Weight: Approximately 0.55kg

Installation method: Standard Quantum rack installation/DIN rail installation

Protection level: IP20 (prevents solid foreign objects with a diameter>12mm from entering, not waterproof)

Port configuration: 3 integrated Ethernet ports (supporting daisy chain/ring network topology).

Status indicator light:

RUN (green): The module is running normally

NET STATION (dual color): Network communication status

MOD STATION (dual color): module health status

I/O Status (red): I/O module status

3、 Core technical specifications

Communication protocols: EtherNet/IP, Modbus TCP

Communication speed: 10/100 Mbps (adaptive)

Network topology: supports daisy chain, ring network, and star network

Working voltage: 24V DC (range 20~28.8V)

Power consumption: ≤ 5W

Working temperature: 0 ° C~+60 ° C

Storage temperature: -40 ° C~+85 ° C

Relative humidity: 5%~93% (without condensation)

Anti vibration: 10~57Hz, 1.5mm peak value

Impact resistance: 15g (11ms pulse)

Firmware version: Official initial version V1.09; Latest Enhanced Version V2.40 (February 2019)

Certification: CE, UL 508, C-Tick, Class 1 Div 2 (Hazardous Area Certification)

4、 Core functions

Remote I/O communication: As a drop station, it connects the Quantum master station with remote I/O modules to achieve high-speed and deterministic data exchange.

Protocol compatibility: Supports both EtherNet/IP (Industrial Ethernet) and Modbus TCP (Universal Industrial Protocol), seamlessly integrating multiple brands of devices.

Network Expansion: Three Ethernet ports support daisy chain cascading, reducing the number of switches and lowering cabling costs; Support ring network redundancy to enhance network reliability.

Diagnosis and maintenance: LED indicator lights display real-time module, network, and I/O status; Support remote diagnosis, firmware upgrade and configuration, simplify maintenance.

System integration: Adapt to the full range of Quantum I/O modules (discrete, analog, and special function modules) to build a flexible distributed control system.

5、 Typical application scenarios

Process industry: chemical, water treatment, oil and gas, energy (power plants/stations)

Factory Automation: Automotive Manufacturing, Electronic Assembly, Food Packaging, Logistics Sorting

Infrastructure: Rail transit, building automation, large-scale HVAC systems

High reliability system: occasions requiring redundant communication, remote monitoring, and distributed control

6、 Installation and configuration points

Installation environment: Installed in standard industrial cabinets, away from strong electromagnetic interference sources (frequency converters, high-power motors).

Wiring specifications: Use shielded Ethernet cables (CAT5e and above), firmly connect ports to avoid looseness.

Configuration software: Use Schneider Unity Pro software for network configuration, I/O mapping, and parameter settings.

Firmware upgrade: It is recommended to use the latest firmware version (V2.40) to support enhanced features such as M580 redundant system.

7、 Order Information

Model: 140CRA31200

EAN code: 3595861135284

Alias/Alternative: No direct substitute model, exclusively for Quantum ERIO system
