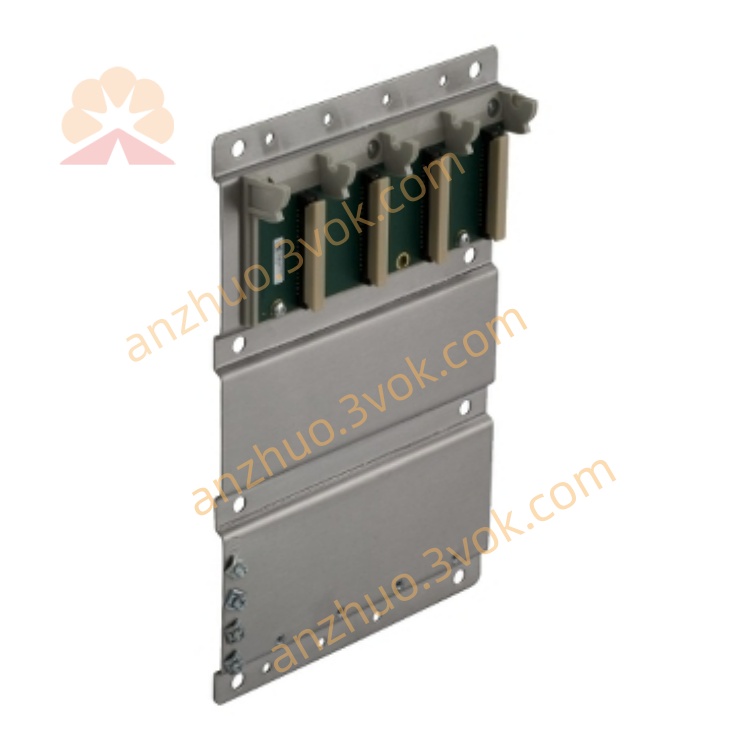

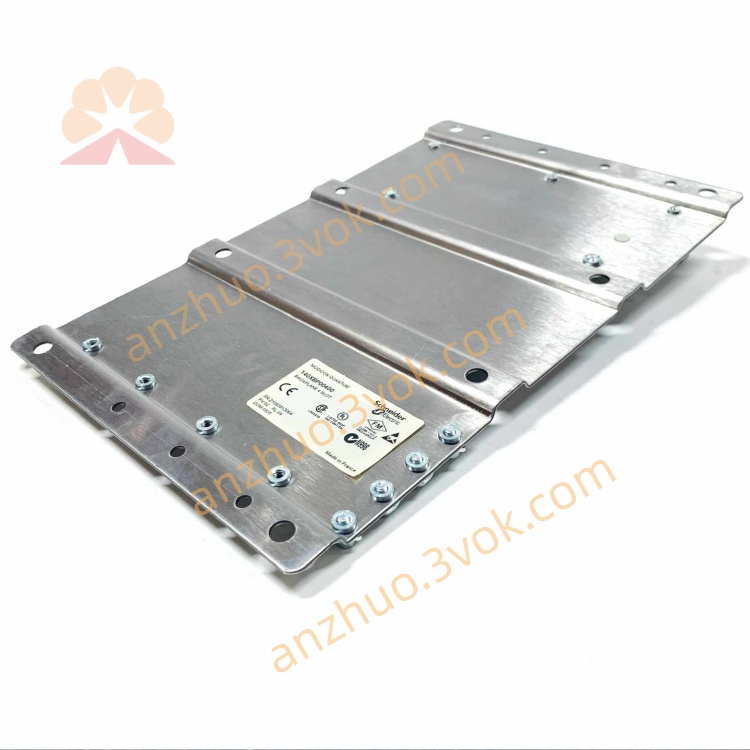

140XBP00400 Product Detailed Specification

Model: 140XBP00400

Brand: Schneider Electric

Product Series: Modicon Quantum Series

Product Type: 4-slot Backplane Rack

Applicable Platform: Modicon Quantum Automation Platform

Core Positioning: The core hardware platform for the Quantum PLC system, used for installing CPUs, power supplies, I/O modules, and communication modules to build small-scale local/remote control stations. It features a compact design, high compatibility, and strong stability.

I. Core Overview

140XBP00400 is a 4-slot standard backplane rack specifically designed by Schneider Electric for the Modicon Quantum series PLC. As the physical and electrical connection core of the system, it provides installation bases and bus communication channels for CPUs, power supplies, I/O modules, and communication modules. It uses industrial-grade flame-retardant materials and reinforced PCB backboards, supports hot-swappable modules, is compatible with all Quantum standard modules, and is suitable for building small-scale local control stations, remote I/O stations, and distributed control nodes. It is widely used in various fields of industrial automation.

II. Key Parameters

1. Physical Specifications

Dimensions (Width × Depth × Height): 184mm × 104mm × 290mm

Net Weight: Approximately 0.45kg (0.99lb)

Number of Slots: 4 standard module slots

Installation Method: Standard DIN rail installation or panel fixed installation

Material: Industrial-grade flame-retardant ABS housing + reinforced fiberglass PCB backboard

Protection Grade: IP30 (dust-proof, intrusion-proof)

2. Environmental Parameters

Operating Temperature: 0℃ ~ +60℃

Storage Temperature: -40℃ ~ +85℃

Relative Humidity: 5% ~ 95% (no condensation)

Shock Resistance: Complies with IEC 60068-2-6 standard (10~150Hz, 0.15mm amplitude)

Anti-interference: Complies with IEC 61000-6-2 industrial environment EMC standard

3. Electrical and Bus Specifications

Backplane Bus: Quantum-specific high-speed parallel bus, supporting data interaction speed up to 80Mbps

Power Supply: Powered by power module (such as 140CPS series) through the backplane, no additional wiring required

Module Compatibility: Compatible with all Quantum CPU, I/O, communication, and power modules

Hot Swap Support: Supports online hot swapping of I/O modules, without affecting system operation

Isolation Characteristics: Electrical isolation between the backplane and the housing, anti-static interference (ESD) up to ±8kV

III. Core Functions

Module Carrying and Fixing: Provides 4 standard slots, reliably fixing Quantum series CPUs, power supplies, I/O, and communication modules, suitable for different functional combinations.

High-speed Bus Communication: Built-in Quantum high-speed backplane bus, enabling high-speed data interaction, instruction transmission, and status feedback between CPUs and various modules, ensuring system real-time performance.

System Power Supply Distribution: Distributes 24VDC/5V voltage from the power module to each slot module through the backplane, simplifying system wiring and improving power supply stability.

Hot Swap Support: Supports online replacement of I/O modules, no downtime required, shortens maintenance time, and improves system availability. Electrical Isolation and Anti-interference: The backplane is electrically isolated from the enclosure, combined with industrial-grade EMC design, effectively resisting static electricity, surges, and electromagnetic interference, ensuring stable operation in harsh environments.

Flexible Expansion Networking: It can serve as a local control station backplane, or a remote I/O station, or a distributed control node backplane. Through communication modules, it can build a multi-level distributed control system.

Four. Product Features

Compact and Efficient Design: Compact size with 4 slots, saving installation space, suitable for small control cabinets and narrow installation environments in the field.

Full Series Compatibility: Native compatibility with Quantum's full series of CPUs (such as 140CPU43412A, 140CPU67160), I/O modules, communication modules, and power modules. The system setup is flexible, and upgrade and expansion are convenient.

High Reliability: Industrial-grade materials, reinforced PCB, wide temperature design, strong anti-interference capability, adapting to high temperatures, dust, vibration, and strong electromagnetic interference in harsh industrial environments, with MTBF ≥ 500,000 hours.

Easy Installation and Maintenance: Supports DIN rail / panel installation, installation is simple; module snap-fit design, plug-and-play is convenient; supports hot swapping, quick replacement of faulty modules, reducing maintenance difficulty.

Compliance Certification: Complies with global industrial standards such as CE, UL, CSA, and RoHS, meeting compliance requirements for various industries.

High Cost-effectiveness: The 4-slot design balances system scale and cost, suitable for small control projects, reducing hardware investment and improving system economy.

Five. Typical Applications

Small Process Control: Chemicals, water treatment, HVAC, etc., small process industrial control stations.

Remote I/O Sites: Remote signal acquisition and control nodes for large production lines and assembly lines.

Distributed Control Nodes: Local control units for intelligent factories, warehousing logistics, packaging machinery, etc., distributed control systems.

Equipment Matching Control: PLC control stations for large mechanical equipment, special equipment, and test equipment.

Small and Medium-sized Automation Projects: Automation control scenarios requiring 4 or fewer module combinations.

Six. Usage and Maintenance Installation

Choose an installation location that is ventilated, dry, and far away from strong electromagnetic interference.

Use DIN rail installation (recommended) or panel screws for fixation to ensure a secure installation.

Keep the back panel level and avoid tilting to prevent poor module contact.

Module installation

Install the power module first (recommended in the first slot on the left), then install the CPU module, I/O module, and communication module.

Align the module with the slot and push it in evenly. Once you hear the latch "click" sound, it is securely fixed.

Ensure good contact between the module and the back panel without any looseness.

Wiring

Connect the power module to a 24VDC power supply according to the specifications. Ensure the wiring is secure and avoid short circuits or reverse connections.

For the I/O module, connect the on-site signals and for the communication module, connect the network cable/fiber optic cable according to the corresponding module manual specifications. Maintenance

Regularly (every 3 months), check if the module clips are loose and if the connection terminals are securely fastened.

Keep the installation environment clean to avoid dust accumulation that affects heat dissipation and contact performance.

Avoid the back panel getting damp or getting water in, to prevent short-circuit faults.

When replacing the module, ensure that the new module model is the same as the original module. I/O modules that support hot swapping can be replaced online, while CPU / power modules need to be shut down for replacement.

VII. Packaging and Warranty

Packaging: Anti-static bag + cushioned cardboard box, for collision prevention and anti-static protection.

Standard list: 140XBP00400 back panel rack, quick installation manual, certificate of conformity.

Warranty: Standard industrial warranty for 18 months, providing technical support and maintenance services (warranty can be extended at an additional cost).
