140CFJ00400

Modicon Quantum CableFast Terminal Block General Information Manufacturer: Schneider Electric Model: 140CFJ00400 Product Type: 4 Points Analog Output Terminal Block Applicable System: Modicon Quantum 140 Series PLC

Description




140CFJ00400

Modicon Quantum CableFast Terminal Block

General Information

Manufacturer: Schneider Electric
Model: 140CFJ00400
Product Type: 4 Points Analog Output Terminal Block
Applicable System: Modicon Quantum 140 Series PLC

Product Description

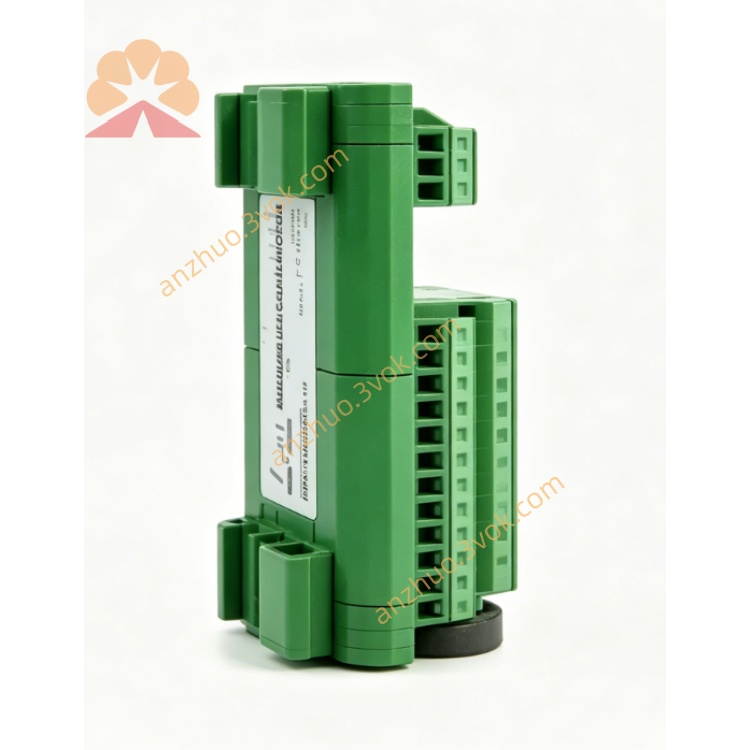

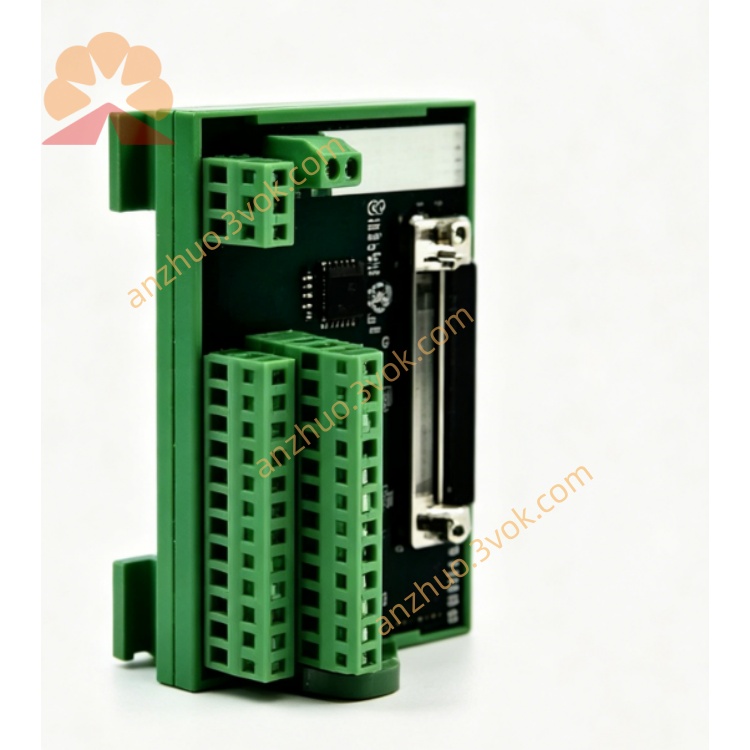

140CFJ00400 is a DIN rail mounted CableFast terminal block dedicated for analog output signals. It connects to Quantum analog output modules through D-Sub 50 connecting cable, realizing fast field wiring for 4-channel analog output signals. With reasonable internal layout and good shielding performance, it ensures stable and accurate transmission of control signals to field actuators.

Main Technical Specifications

  1. Channel Quantity: 4 analog output channels

  2. Connection Interface: D-Sub 50 pin connector

  3. Field Connection: Captive screw terminal

  4. Supported Signal: Standard voltage and current analog output signals

  5. Installation Way: Standard 35mm DIN rail mounting

  6. Operating Temperature: 0℃ ~ +60℃

  7. Storage Temperature: -40℃ ~ +85℃

  8. Protection Class: IP20

  9. Suitable Wire Range: 0.2-4mm²

  10. Structure Type: Non-fused design

Core Features

  1. Mini 4-channel compact structure, save cabinet inner space

  2. Optimized circuit design, low signal loss and high control precision

  3. Independent signal terminals and shielding terminals, strong anti-interference capacity

  4. Anti-loose screw terminals, stable connection under long-term vibration environment

  5. Simple installation and easy wiring, convenient for later maintenance

  6. Standard CableFast interface, quick connection with PLC modules

Application Scope

Matched with Modicon Quantum 4-channel analog output modules, widely used in chemical, water treatment, power industry etc. It is used to connect regulating valves, frequency converters and other field analog control equipment.

Compatibility

Compatible with 140 series 4-point analog output modules of Quantum PLC, not applicable to digital I/O modules and temperature input modules.
