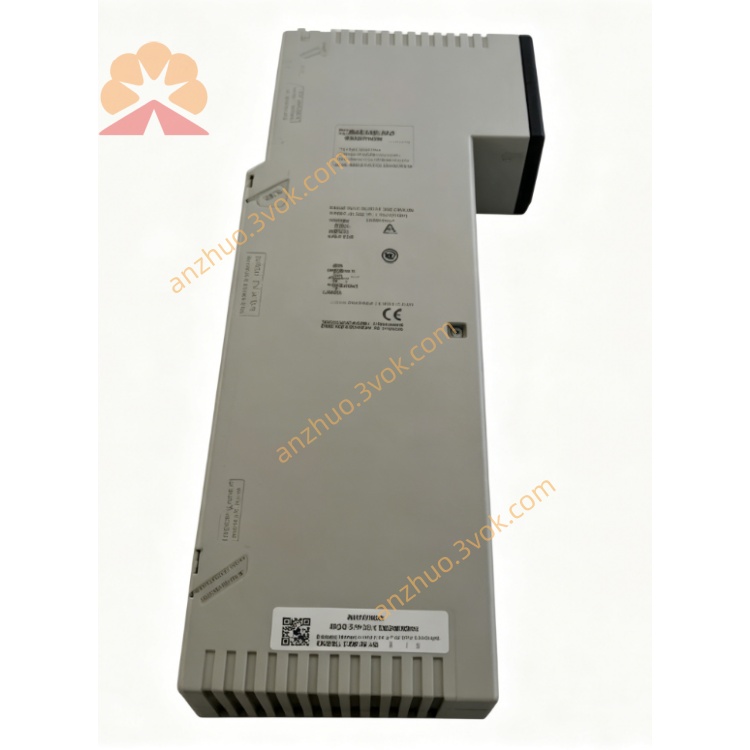

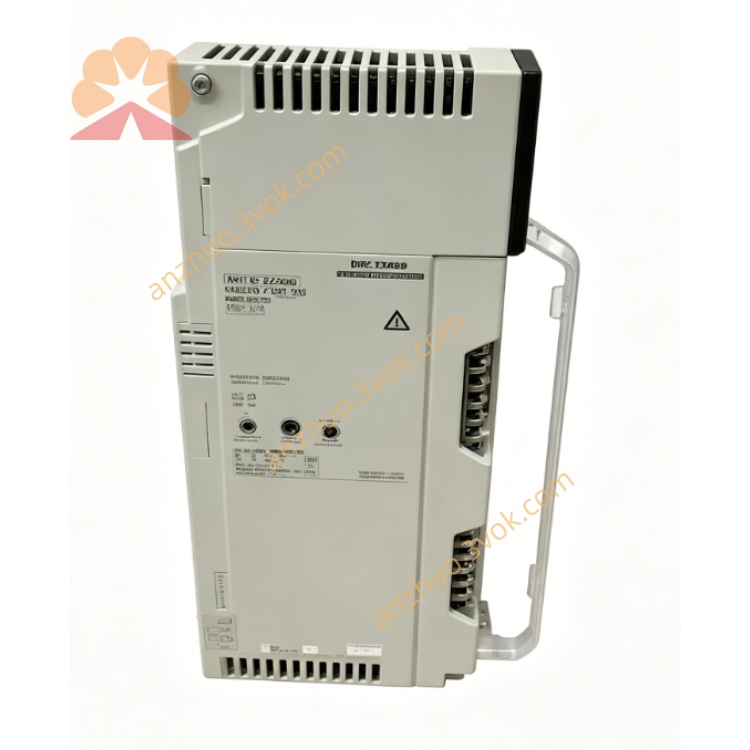

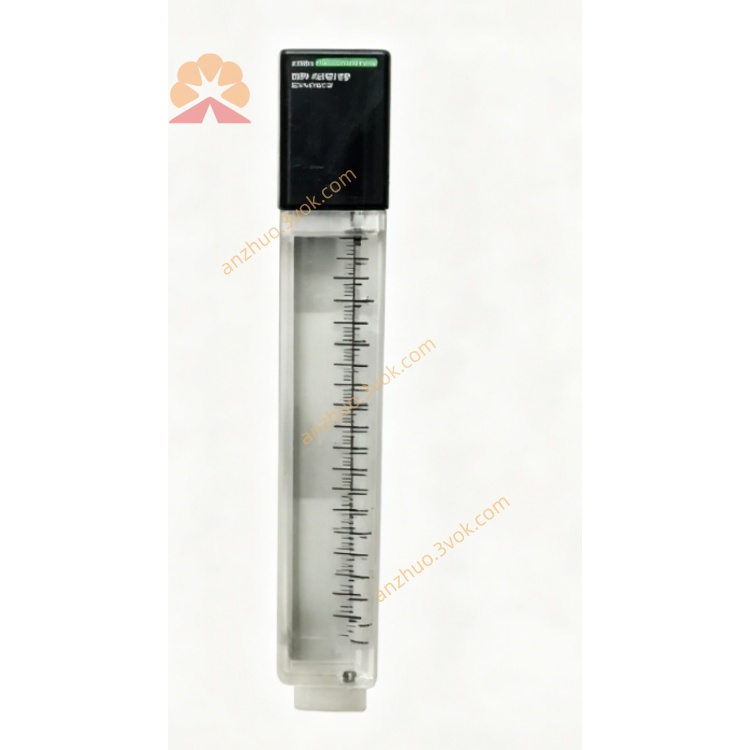

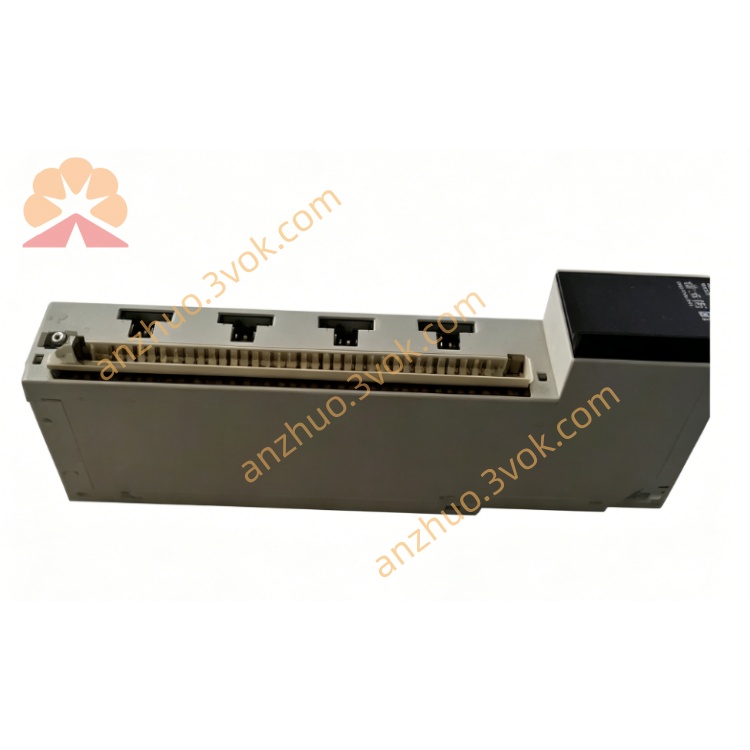

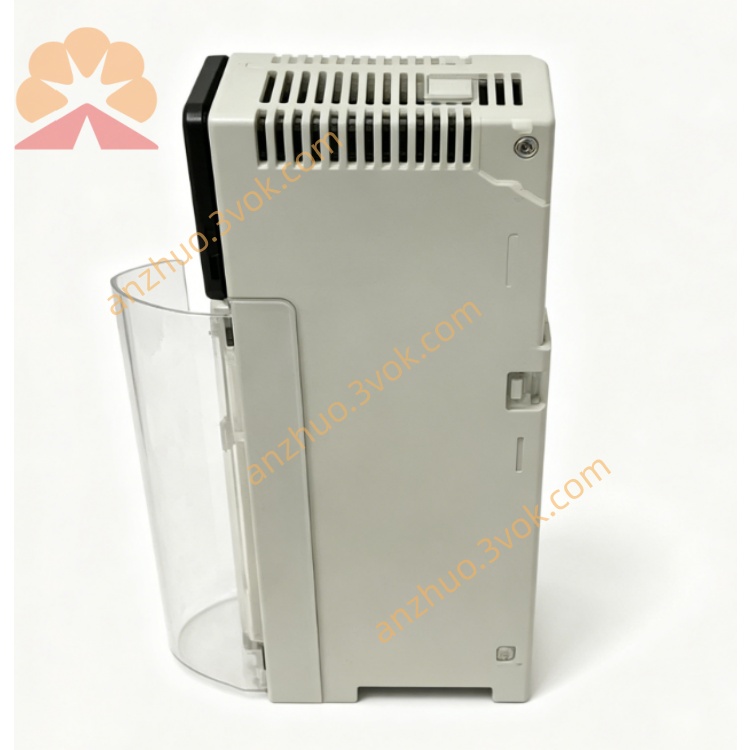

140AVI03000

Modicon Quantum Analog Voltage/Current Input Module

General Information

Product Description

Main Technical Specifications

1. Input Channels: 8 isolated differential analog input channels

2. Selectable Signal Types

   Voltage: 0-5V, 0-10V, ±5V, ±10V

   Current: 0-20mA, 4-20mA, ±20mA

3. Resolution: 16 bits

4. Basic Accuracy: ±0.05% full scale at 25℃

5. Input Impedance: Above 20kΩ for voltage, 250Ω for current

6. Maximum Conversion Time: 10ms per channel

7. Isolation Voltage: 1780V AC one-minute withstand voltage

8. Module Power Consumption: 2.2W

9. Backplane Bus Current: 280mA

10. Built-in low-pass filter for signal stability

Core Functions

1. Support multiple universal voltage and current signal ranges

2. Differential input design, excellent common mode rejection performance

3. Detect channel open circuit and short circuit fault automatically

4. LED indicators display module running status and channel failure alarm

5. All signal ranges can be configured freely via programming software

6. Built-in overvoltage and overcurrent protection circuit

Environmental Parameters

1. Operating Temperature: 0℃ ~ +60℃

2. Storage Temperature: -40℃ ~ +85℃

3. Relative Humidity: 5% ~ 95%, non-condensing

4. Maximum Working Altitude: 5000 meters

Industrial Certification

Application Scope

Compatibility
