140AMM09000

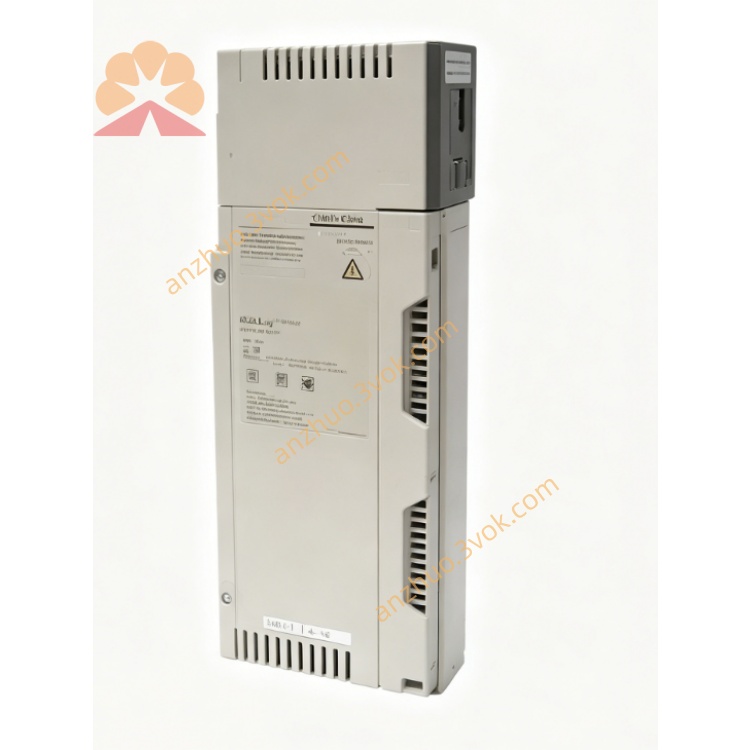

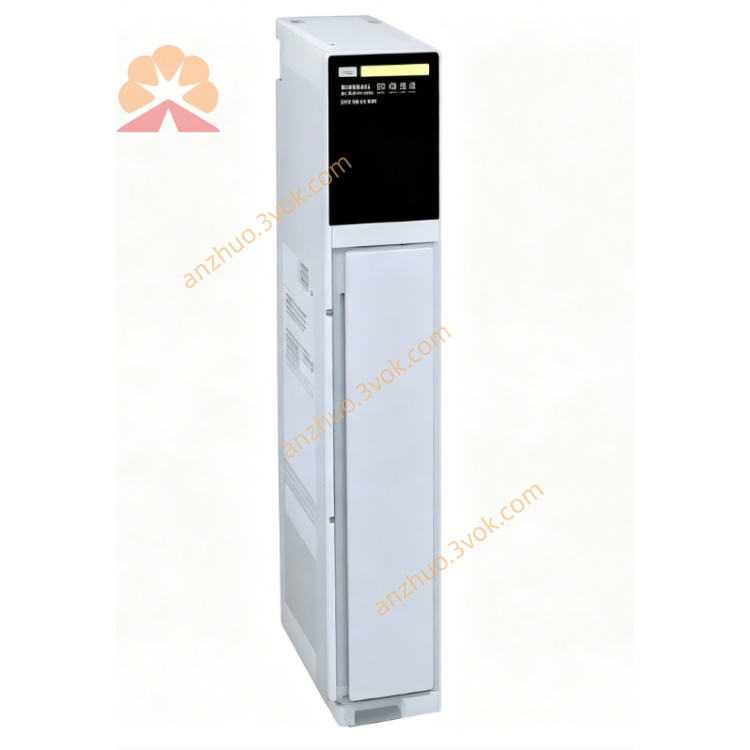

Modicon Quantum Mixed Analog I/O Module

English Datasheet (Condensed, same style as your 140AIO/140ACO series)

1. General Information

• Manufacturer: Schneider Electric

• Model: 140AMM09000

• Series: Modicon Quantum 140 PLC

• Type: Mixed analog input + output module (4-in / 2-out)

• Conformal Coating: No (standard version; 140AMM09000C = coated)

• Application: Process control, analog signal acquisition & control in water treatment, HVAC, chemical, food & beverage, industrial machinery.

• Mounting: Single slot on Quantum backplane

• Weight: ~0.3 kg

2. I/O Configuration

• Analog Inputs: 4 channels (isolated)

• Analog Outputs: 2 channels (isolated)

• Total: 6 mixed analog channels

3. Analog Input Ranges (Software Selectable)

• ±20 mA (bipolar current)

• 0–20 mA (unipolar current)

• 4–20 mA (unipolar offset current)

• ±10 VDC (bipolar voltage)

• ±5 VDC (bipolar voltage)

• 0–10 VDC (unipolar voltage)

• 0–5 VDC (unipolar voltage)

• 1–5 VDC (unipolar offset voltage)

• Voltage: 16 bits (0–10 V, ±10 V)

• Current: 14–15 bits (depending on range)

• ±0.03% FS absolute (typical)

• Voltage: ≥1 MΩ

• Current: 250 Ω

4. Analog Output Ranges

• 4–20 mA (fixed, default)

• Load: 0–500 Ω @ 20 mA

• Loop voltage: 7–30 VDC (external supply)

5. Electrical Ratings

• Backplane Current: 350 mA @ 5 VDC

• Power Dissipation: ~4.5 W max

• Isolation:

  • Channel-to-backplane: 1780 VAC, 1 min

  • Channel-to-channel: Isolated

6. Environmental

• Operating Temp: 0°C to +60°C

• Storage Temp: −40°C to +85°C

• Humidity: 5–95% non‑condensing

• Altitude: Up to 5000 m

7. Key Features

1. 4-in / 2-out mixed analog, high density single slot

2. Wide software-selectable input ranges (no jumpers)

3. High resolution & accuracy (16-bit voltage, ±0.03% FS typ)

4. Strong noise rejection (>80 dB CMRR)

5. Open-circuit detection (4–20 mA loops)

6. LED status indicators: Run, Fault, Channel status

7. Robust isolation for heavy industrial environments

8. Compatibility

• Rack: Modicon Quantum 140‑series backplane

• Not compatible with X80, M340, or other Schneider PLC lines

9. Ordering

• 140AMM09000: Standard (non-coated)

• 140AMM09000C: Conformal coated (harsh/corrosive environments)
