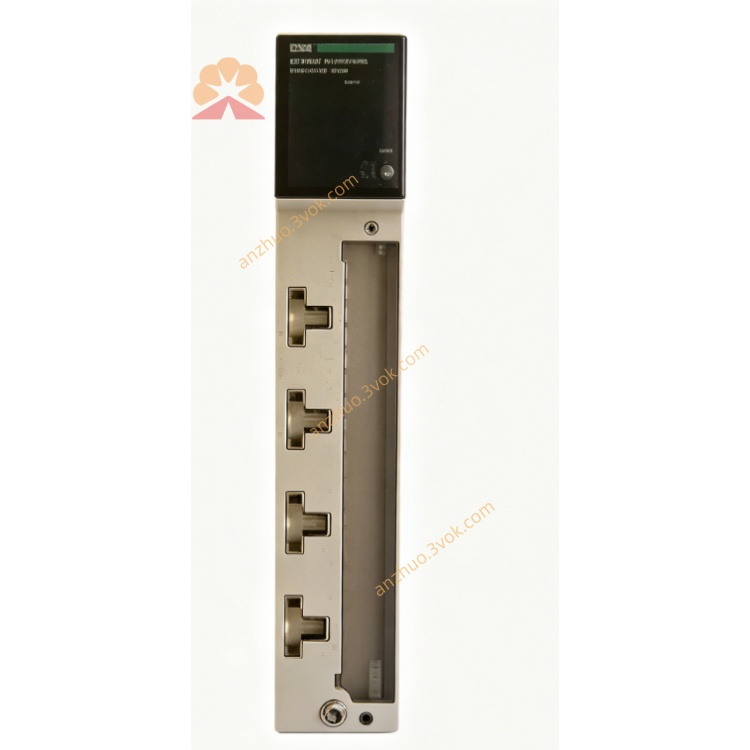

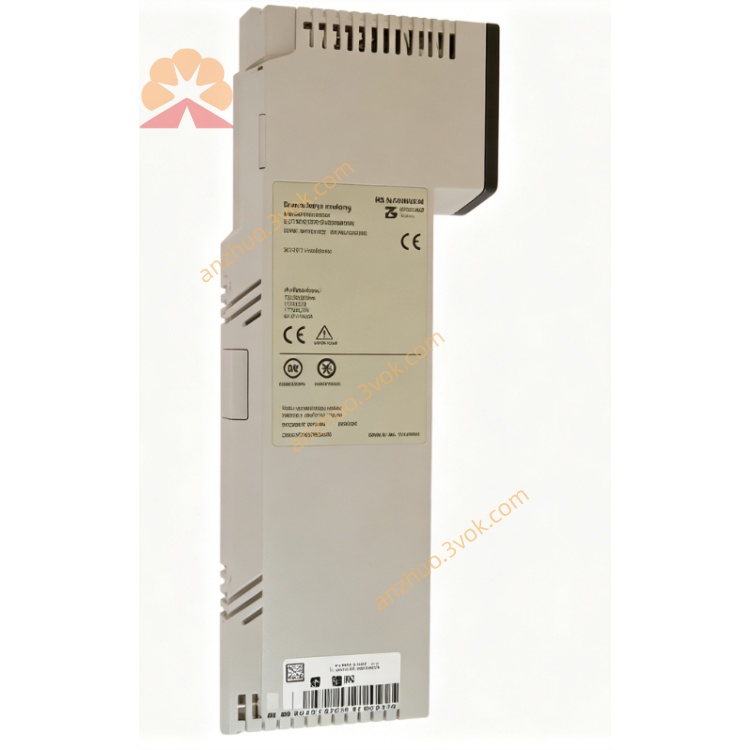

140ACO13000C

Modicon Quantum 8‑Channel Isolated Analog Output Module

Official English Manual (Condensed)

1. General Information

• Manufacturer: Schneider Electric

• Model: 140ACO13000C

• Series: Modicon Quantum 140 PLC

• Type: 8‑channel isolated analog current output module

• Conformal Coating: Yes (suffix C = coated for harsh environments)

• Application: Precision control of valves, VFDs, transmitters, and process instruments in industrial automation.

2. Specifications

2.1 Output Channels & Ranges

• Channels: 8 isolated current outputs

• Ranges (software selectable):

  • 4–20 mA → 0…16000 counts / 0…4095 counts

  • 0–20 mA → 0…20000 counts

  • 0–25 mA → 0…25000 counts

2.2 Performance

• Resolution: 16 bits

• Accuracy: ±0.2% full scale @ 25°C

• Linearity: ±4 µA typical (0–20/25 mA); ±12 µA (4–20 mA, 0…4095)

• Temperature Drift: ±0.004% FS/°C typical; ±0.007% FS/°C max

• Isolation: 1780 V AC for 1 minute (channels ↔ backplane bus)

• Update Time: 5 ms

• Settling Time:

  • 3.2 ms to ±0.1% FS

  • 1.6 ms to 5% FS

2.3 Electrical

• External Loop Supply: 6–30 V DC

• Max Load: 750 Ω @ 20 mA, 24 V

• Voltage Drop: <30 V @ 25 mA

• Backplane Current: 550 mA

• Power Dissipation: 5 W max

2.4 Environmental

• Operating Temp: 0°C to +60°C

• Storage Temp: −40°C to +85°C

• Humidity: 5–95% non‑condensing

• Altitude: Up to 5000 m

2.5 Approvals

• CE, UL 508, CSA C22.2, FM Class 1 Div 2

3. Features

1. 8‑channel high density: Saves slot count compared to 4‑channel modules.

2. Multi‑range software selection: Ranges configurable via Unity Pro / EcoStruxure Control Expert.

3. Open‑circuit detection: Diagnoses broken 4–20 mA loops (4–20 mA range only).

4. LED status indicators:

   • 8 × Channel ON LEDs (green)

   • 8 × Channel FAULT LEDs (red)

   • BUS ACTIVE / EXT FAULT LEDs

5. Conformal coating (C): Protects against moisture, dust, and corrosive gases for harsh environments.

6. High isolation: 1780 V AC isolation improves noise immunity in heavy‑duty plants.

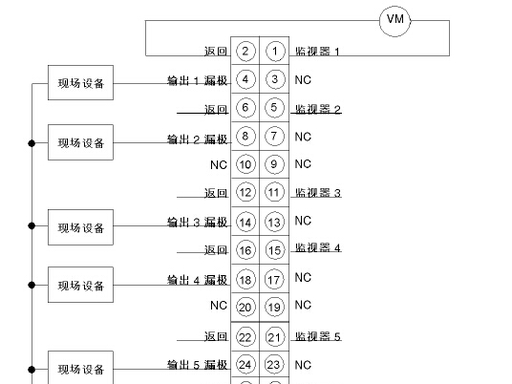

4. Wiring Overview

• Terminals: Removable screw terminal block.

• RETURN: Common return for each channel group.

• N/C: Not connected.

• VM: Voltmeter tap (≤1 m cable length).

• Shielding: Use twisted shielded pairs; shield ground at cabinet only.

5. Configuration

• Software: Unity Pro XL / EcoStruxure Control Expert.

• Parameters:

  • Output range selection

  • Scaling (engineering units)

  • Filtering

  • Fault response (hold / freeze / preset)

6. Compatibility

• Platform: Modicon Quantum 140‑series backplane (single slot).

• Compatibility note: Not compatible with Modicon X80 or M340 series.

7. Ordering Information

• 140ACO13000: Standard (non‑coated)

• 140ACO13000C: Conformal coated (for harsh environments)
