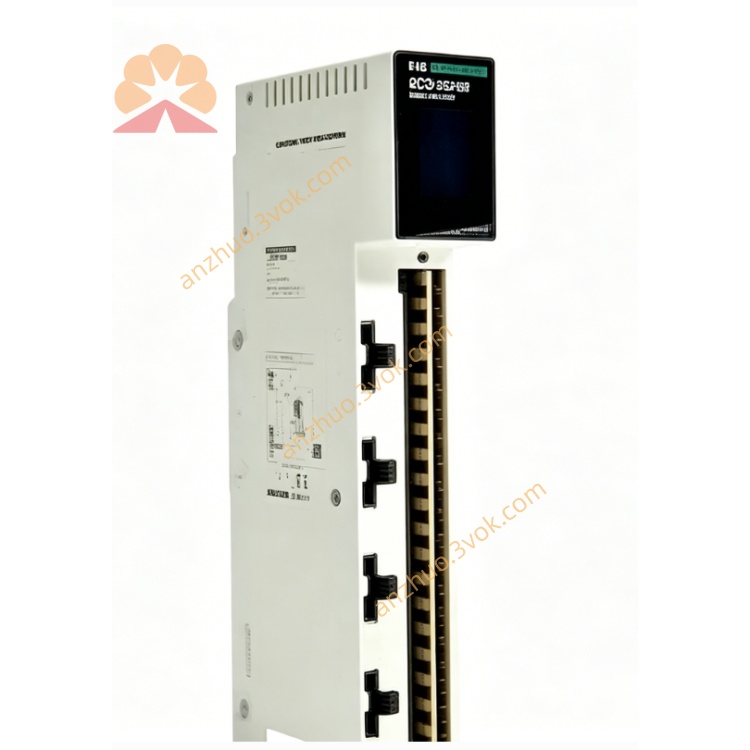

140ACO02000

Modicon Quantum Analog Output Module

General Information

Product Description

Main Technical Specifications

1. Number of Channels: 4 isolated analog output channels

2. Resolution: 12 bits

3. Output Signal Range: 4 ~ 20 mA

4. Maximum Update Time: 3 ms

5. Settling Time: 900 μs to reach ±0.1% full scale value

6. Basic Accuracy: ±0.2% full scale at 25℃

7. Temperature Drift: Max ±0.007% FS/℃

8. Isolation Voltage: 500 V AC one-minute withstand voltage

9. External Loop Power Supply: 12 VDC ~ 30 VDC

10. Module Power Consumption: 5.3 W

11. Backplane Bus Current: 480 mA

Main Functions

1. Independent electrical isolation design for each output channel

2. Open circuit detection function for 4-20mA output loop

3. Built-in surge and overcurrent protection

4. LED indicators display module running status and channel fault alarm

5. Support software configuration and remote parameter setting

Environmental Parameters

1. Operating Temperature: 0℃ ~ +60℃

2. Storage Temperature: -40℃ ~ +85℃

3. Relative Humidity: 5% ~ 95%, non-condensing

4. Maximum Working Altitude: 5000 meters
