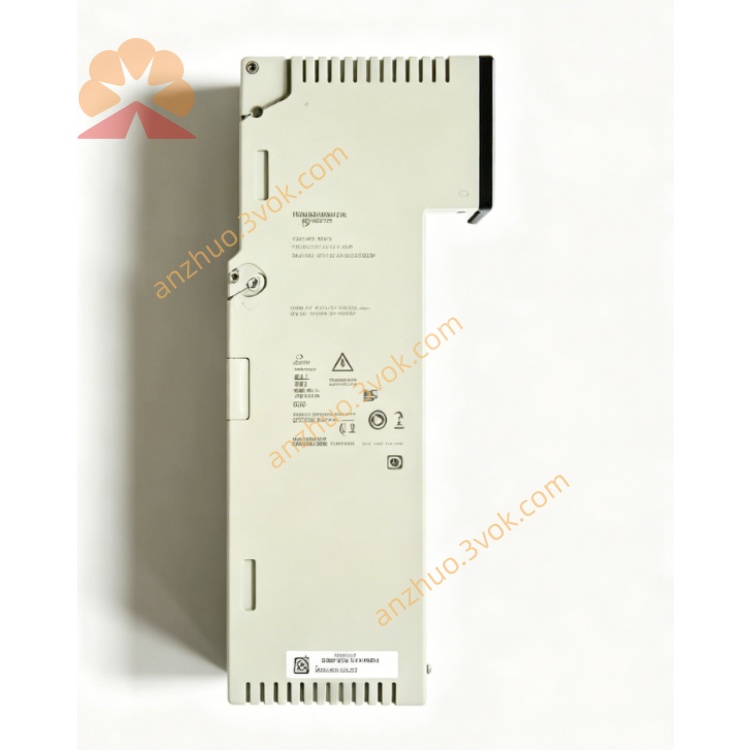

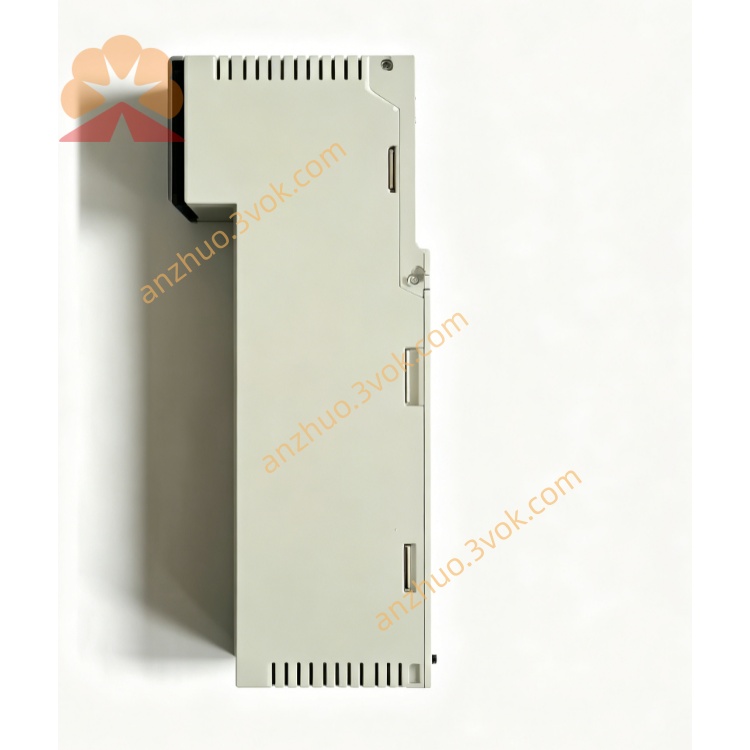

140AC013000
Modicon Quantum Analog Output Module
General Information
Manufacturer: Schneider Electric
Model: 140AC013000
Product Type: Isolated Analog Output Module
Applicable System: Modicon Quantum PLC Series
Weight: 0.91kg
Product Description
140AC013000 is an 8-channel isolated analog current output module used for Modicon Quantum automation control system. It can output standard industrial current signals, support multiple signal ranges selection, with high measurement accuracy and strong anti-interference capability. Each channel is electrically isolated from internal bus, equipped with open circuit diagnosis and short circuit protection function, widely used in industrial process regulation, actuator control and analog signal transmission occasions.
Main Technical Specifications
Channel Quantity: 8 independent analog output channels
Resolution: 12 bits
Signal Output Range (software configurable)
Response Time: 5ms maximum update time
Settling Time: 3.2ms reach ±0.1% full scale value
Basic Accuracy: ±0.2% full scale at 25℃
Temperature Drift: Typical 0.004% FS/℃, maximum 0.007% FS/℃
Isolation Voltage: 1780V AC one-minute withstand voltage between channel and backplane bus
External Power Supply: 6VDC ~ 30VDC
Module Power Consumption: 5W
Backplane Bus Current Consumption: 550mA
Protection & Diagnosis Function
Each channel supports short circuit protection
Open circuit fault detection function under 4-20mA mode
Module running status and fault status LED indication
Environmental Parameters
Operating Temperature: 0℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Relative Humidity: 5%~95%, non-condensing
Working Altitude: Below 5000 meters
Certification Standard
Comply with CE, UL, CSA industrial safety certification standards
Typical Applications
Industrial field valve control, frequency converter given signal, instrument remote control signal output, petrochemical, water treatment, electric power, metallurgy and other automatic production control systems
Compatibility
Only suitable for Modicon Quantum 140 series PLC rack installation, not applicable to other series of Schneider PLC products.
