NI-9205

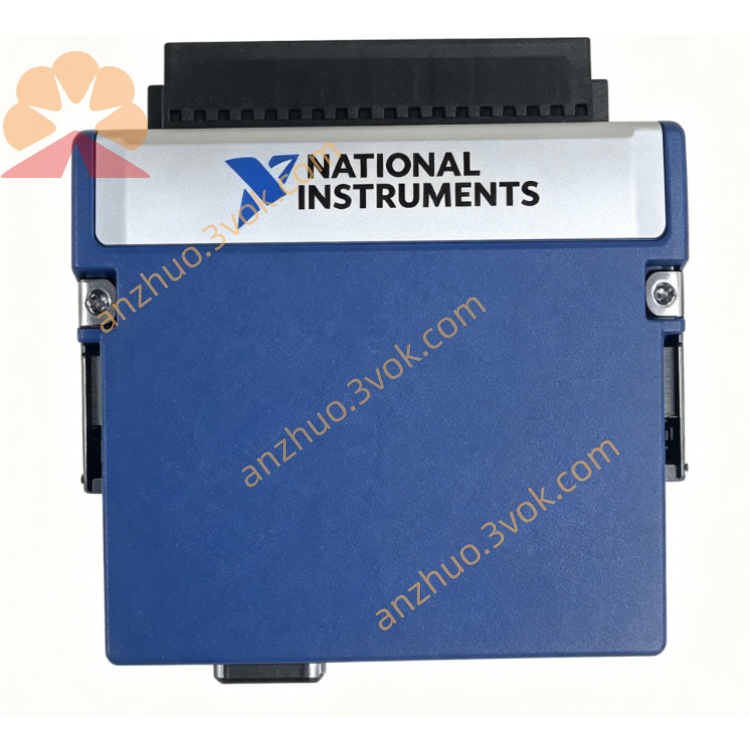

National Instruments C Series Analog Input Module

General Description

Key Specifications

• Channels: 32 single-ended / 16 differential (software configurable)

• Resolution: 16-bit

• Aggregate Sampling Rate: 250 kS/s

• Programmable Input Ranges: ±10 V, ±5 V, ±1 V, ±0.2 V

• Input Impedance: > 1 GΩ

• Bandwidth: 370 kHz

• Settling Time: 4 µs (±8 LSB), 8 µs (±2 LSB)

• CMRR: 100 dB (DC–60 Hz)

• Overvoltage Protection: ±30 V per channel

• Isolation: Channel-to-earth isolation

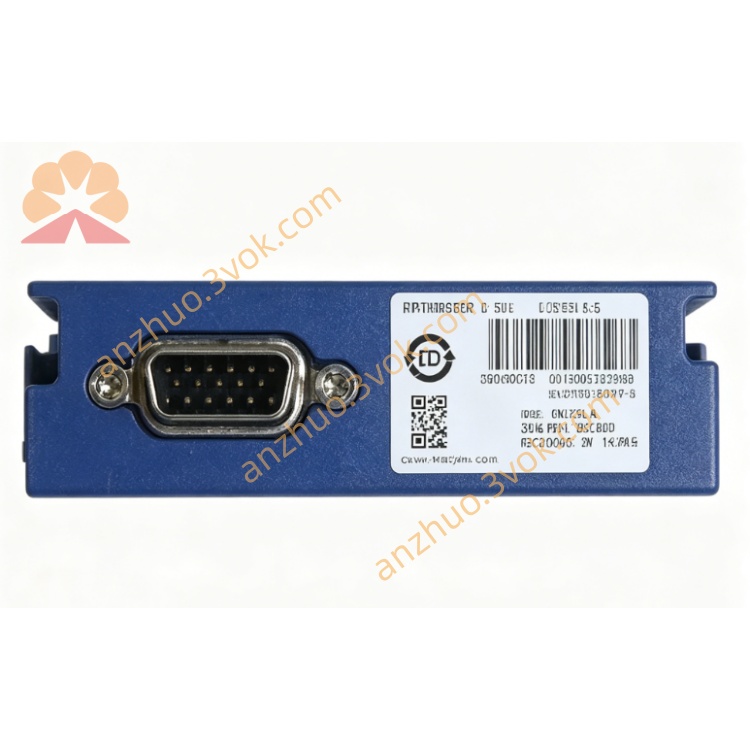

• Connection Options: Spring terminal, D-SUB connector versions

• Operating Temperature: -40 °C to +70 °C

• Driver Compatibility: NI-DAQmx, compatible with LabVIEW, Python, C/C++

Main Features

• High channel density saves chassis slot space

• Software-selectable single-ended or differential input mode

• Programmable voltage ranges for small and large signal measurement

• High input impedance avoids loading sensor outputs

• Built-in overvoltage protection for rugged industrial use

• Channel-to-earth isolation reduces ground loops and noise interference

• Wide operating temperature for harsh field and factory environments

Applications

• Multi-channel sensor data acquisition

• Industrial process monitoring and voltage measurement

• Structural vibration and low-frequency signal logging

• Automotive and aerospace component testing

• Educational and research laboratory measurement systems
