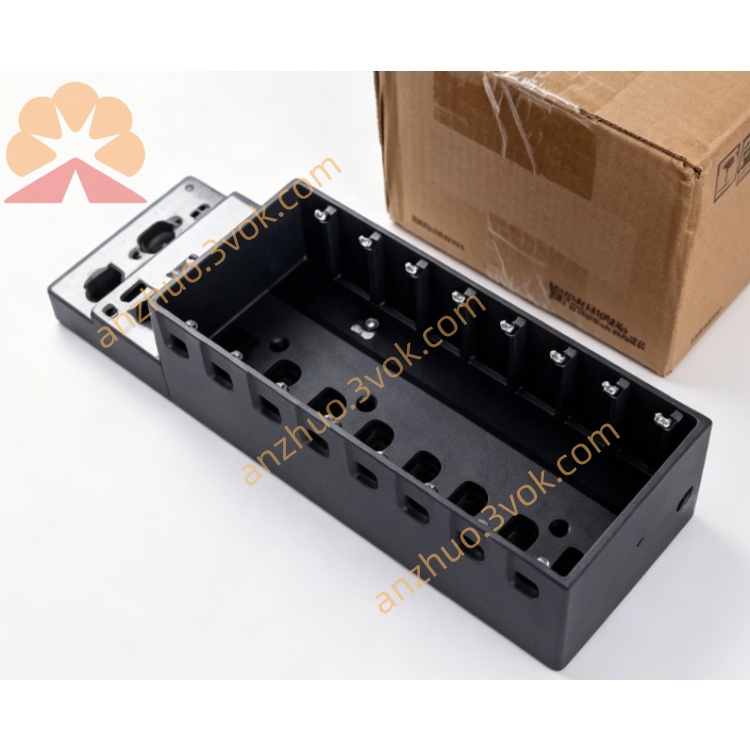

cRIO‑9067

National Instruments CompactRIO Real‑Time Controller (8‑slot, Zynq)

General Description

Part Number

Key Specifications

• SoC: Xilinx Zynq‑7020 (ARM Cortex‑A9 dual‑core + FPGA)

• CPU: 667 MHz dual‑core ARM Cortex‑A9

• DRAM: 512 MB DDR3

• Storage: 1 GB NAND flash (non‑volatile)

• OS: NI Linux Real‑Time (32‑bit)

• I/O Slots: 8 × C Series

• Ethernet: 2 × 10/100/1000 Mbps Gigabit RJ‑45

• USB: 1 × USB 2.0 Host, 1 × USB 2.0 Device

• Serial: 1 × RS‑232

• Power: 9–35 VDC

• Operating Temp: ‑20 °C to +55 °C

• Mechanical: Fanless, rugged industrial design

Main Features

• Integrated Zynq FPGA: True parallel I/O, hardware‑timed control, custom logic

• Dual‑core real‑time processor: Deterministic control + Linux ecosystem access

• 8‑slot chassis integrated: No separate cRIO chassis needed

• Dual Gigabit Ethernet: For networked I/O, TSN, or redundant links

• Fanless & rugged: Suitable for factory, vehicle, and outdoor deployments

• LabVIEW compatible: Real‑Time + FPGA programming; NI‑DAQmx supported

Applications

• High‑speed industrial automation & machine control

• Distributed data acquisition & condition monitoring

• Embedded control for test stands & research systems

• Automotive/vehicle data logging & control

• Energy, process, and manufacturing monitoring

Comparison Note

• Faster dual‑core ARM + integrated FPGA

• Linux Real‑Time instead of VxWorks

• 8 integrated slots (no separate chassis)

• Dual Gigabit Ethernet
