MVME162-010A

MVME162‑010 6U VME Single‑Board Computer (SBC) Motorola / Emerson / Artesyn Plain Text Specification & User Manual Part Number: MVME162‑010 Manufacturer: Motorola Computer Group, later Emerson / Artesyn Form Factor: 6U single‑height VMEbus, VMEbus Rev C, P1/P2 Processor: MC68040 @ 25 MHz (with FPU) Memory: 8 MB parity‑protected DRAM (non‑expandable) Key Attributes: No SCSI, No Ethernet, standard temperature 0 °C ~ +55 °C, MVME712 compatible Firmware: MVME162Bug debug monitor factory installed MVME162 Series Suffix Quick Reference: ‑001 = 1MB DRAM, 68LC040, no SCSI, no Ethernet ‑002 = 4MB DRAM, 68040, narrow SCSI, no Ethernet ‑003 = 4MB DRAM, 68040, narrow SCSI, Ethernet ‑043 = 4MB DRAM, 68040, narrow SCSI, Ethernet, rugged ‑010 = 8MB DRAM, 68040, no SCSI, no Ethernet, standard temp ✅

Description

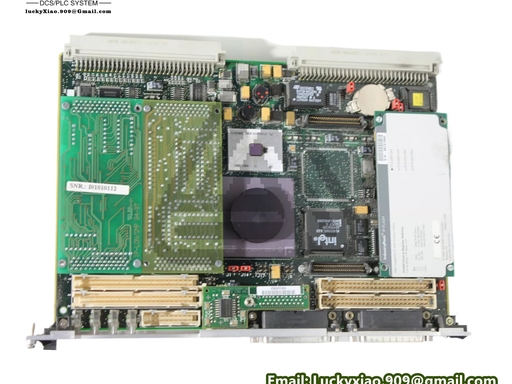

MVME162‑010

6U VME Single‑Board Computer (SBC)

Motorola / Emerson / Artesyn

Plain Text Specification & User Manual

Part Number: MVME162‑010
Manufacturer: Motorola Computer Group, later Emerson / Artesyn
Form Factor: 6U single‑height VMEbus, VMEbus Rev C, P1/P2
Processor: MC68040 @ 25 MHz (with FPU)
Memory: 8 MB parity‑protected DRAM (non‑expandable)
Key Attributes: No SCSI, No Ethernet, standard temperature 0 °C ~ +55 °C, MVME712 compatible
Firmware: MVME162Bug debug monitor factory installed
MVME162 Series Suffix Quick Reference:
‑001 = 1MB DRAM, 68LC040, no SCSI, no Ethernet
‑002 = 4MB DRAM, 68040, narrow SCSI, no Ethernet
‑003 = 4MB DRAM, 68040, narrow SCSI, Ethernet
‑043 = 4MB DRAM, 68040, narrow SCSI, Ethernet, rugged
‑010 = 8MB DRAM, 68040, no SCSI, no Ethernet, standard temp ✅

1. General Description

The MVME162‑010 is a high‑memory 6U VME single‑board computer based on the Motorola MC68040 32‑bit microprocessor with integrated FPU, designed for industrial embedded control, data acquisition, and VMEbus systems requiring large on‑board memory but no SCSI or Ethernet.
It integrates 8 MB parity DRAM, battery‑backed SRAM and RTC, two serial ports, four IndustryPack (IP) expansion sites, and a VMEbus master/slave interface. The board works with MVME712 transition modules to bring I/O to standard connectors.
Onboard resources include 512 KB battery‑backed SRAM, battery‑backed TOD clock, one 32‑pin PLCC EPROM socket, and factory‑installed MVME162Bug firmware.
Peripherals: two EIA‑232‑D serial ports, four IndustryPack sites, VMEbus interface. No SCSI, No Ethernet.

2. Features

Processor & Memory

  • MC68040 32‑bit microprocessor @ 25 MHz

  • On‑chip: 8 KB unified cache, MMU + FPU integrated

  • 8 MB parity‑protected DRAM (non‑expandable)

  • 512 KB battery‑backed SRAM (non‑volatile data storage)

  • Battery‑backed TOD clock with calendar

  • One 32‑pin PLCC EPROM socket (up to 512 KB)

  • MVME162Bug firmware/debug monitor factory installed

Onboard I/O Interfaces

  • Two EIA‑232‑D asynchronous serial ports (console / user)

  • No onboard SCSI controller

  • No onboard Ethernet controller

  • Four IndustryPack (IP) single‑width expansion sites

  • VMEbus: A32/D32 master/slave/system controller

System Functions

  • Six 32‑bit programmable tick timers

  • Hardware watchdog timer with system reset capability

  • Eight front‑panel LEDs: FAIL, STAT, RUN, SCON, LAN, FUSE, SCSI, VME

  • Two front‑panel pushbutton switches: RESET, ABORT

  • Remote RESET/ABORT/STATUS control functions

Environmental Specifications (‑010 Standard)

  • Operating temperature: 0 °C to +55 °C

  • Storage temperature: −55 °C to +85 °C

  • Relative humidity: 5%–95%, non‑condensing

  • Standard industrial grade components

3. Electrical Specifications

  • Power supply: +5 VDC, ±12 VDC (VMEbus standard)

  • +5 V current: 4.3 A typical, 5.3 A maximum

  • +12 V current: 100 mA maximum

  • −12 V current: 100 mA maximum

  • Logic levels: TTL compatible

  • Power dissipation: Approximately 9.5 W typical

  • Cooling airflow: 4 CFM minimum for full temperature range

4. Mechanical Specifications

  • Form factor: 6U single‑height VMEbus module

  • Dimensions: 233.4 mm (height) × 160 mm (depth)

  • Weight: Approximately 640 grams

5. Supported Operating Systems

  • VxWorks (68k, fully supported)

  • LynxOS

  • OS‑9

  • pSOS+

  • VRTX‑32

  • NetBSD/mvme68k

  • OpenBSD/mvme68k

  • Custom embedded real‑time operating systems

6. Compatibility

  • Pin‑compatible with MVME162 series (‑001/‑002/‑003/‑010/‑043)

  • Software‑compatible with MVME162 family (68040/68LC040)

  • MVME712 series transition module compatible

  • Not compatible with MVME1600/PowerPC series (different architecture)

7. Ordering Information

  • Part Number: MVME162‑010

  • Description: 6U VME SBC, MC68040 @25 MHz, 8 MB parity DRAM, no SCSI, no Ethernet, standard temperature 0 °C~+55 °C, MVME712 compatible

要不要我把 MVME162 全系列（001/002/003/010/043）做成一份可直接复制的英文规格对比表，方便你快速选型？
MVME162-010A
下面给你 MVME162‑010A 英文原厂规格（纯文本、与 001/002/003/010 格式统一、可直接进 BOM）。

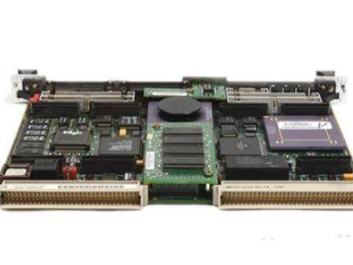

MVME162‑010A

6U VME Single‑Board Computer (SBC)

Motorola / Emerson / Artesyn

Plain Text Specification

Part Number: MVME162‑010A
Manufacturer: Motorola Computer Group / Emerson / Artesyn
Form Factor: 6U single‑height VMEbus, VMEbus Rev C, P1/P2
Processor: MC68040 @ 25 MHz (with FPU)
Memory: 8 MB parity‑protected DRAM (non‑expandable)
Key Attributes: No SCSI, No Ethernet, standard temperature 0 °C ~ +55 °C, MVME712 compatible, “A” = industrial upgraded / revision A
Firmware: MVME162Bug factory installed
MVME162 Series Suffix:
‑001 = 1MB, 68LC040, no SCSI, no Ethernet
‑002 = 4MB, 68040, SCSI, no Ethernet
‑003 = 4MB, 68040, SCSI, Ethernet
‑010 = 8MB, 68040, no SCSI, no Ethernet
‑010A = 8MB, 68040, no SCSI, no Ethernet, Rev A / industrial upgrade ✅

1. General Description

The MVME162‑010A is a revision A industrial upgrade of the MVME162‑010, a high‑memory 6U VME single‑board computer based on the Motorola MC68040 32‑bit microprocessor with integrated FPU. It is intended for industrial embedded control, data acquisition, and VMEbus systems requiring large on‑board memory, no SCSI, no Ethernet, and higher reliability screening.
It integrates 8 MB parity DRAM, battery‑backed SRAM and RTC, two serial ports, four IndustryPack (IP) expansion sites, and a VMEbus master/slave interface. The board works with MVME712 transition modules to bring I/O to standard connectors.
Onboard resources include 512 KB battery‑backed SRAM, battery‑backed TOD clock, one 32‑pin PLCC EPROM socket, and factory‑installed MVME162Bug firmware.
Peripherals: two EIA‑232‑D serial ports, four IndustryPack sites, VMEbus interface. No SCSI, No Ethernet.

2. Features

Processor & Memory

  • MC68040 32‑bit microprocessor @ 25 MHz

  • On‑chip: 8 KB unified cache, MMU + FPU integrated

  • 8 MB parity‑protected DRAM (non‑expandable)

  • 512 KB battery‑backed SRAM (non‑volatile)

  • Battery‑backed TOD clock with calendar

  • One 32‑pin PLCC EPROM socket (up to 512 KB)

  • MVME162Bug firmware/debug monitor factory installed

Onboard I/O Interfaces

  • Two EIA‑232‑D asynchronous serial ports (console/user)

  • No onboard SCSI controller

  • No onboard Ethernet controller

  • Four IndustryPack (IP) single‑width expansion sites

  • VMEbus: A32/D32 master/slave/system controller

System Functions

  • Six 32‑bit programmable tick timers

  • Hardware watchdog timer with system reset

  • Eight front‑panel LEDs: FAIL, STAT, RUN, SCON, LAN, FUSE, SCSI, VME

  • Two front‑panel pushbuttons: RESET, ABORT

  • Remote RESET/ABORT/STATUS control

Environmental Specifications (‑010A Standard)

  • Operating temperature: 0 °C to +55 °C

  • Storage temperature: −55 °C to +85 °C

  • Relative humidity: 5%–95%, non‑condensing

  • Rev A / industrial screening upgrade

3. Electrical Specifications

  • Power supply: +5 VDC, ±12 VDC (VMEbus standard)

  • +5 V current: 4.3 A typical, 5.3 A maximum

  • +12 V current: 100 mA maximum

  • −12 V current: 100 mA maximum

  • Logic levels: TTL compatible

  • Power dissipation: ~9.5 W typical

  • Cooling airflow: 4 CFM minimum

4. Mechanical Specifications

  • Form factor: 6U single‑height VMEbus module

  • Dimensions: 233.4 mm (H) × 160 mm (D)

  • Weight: ~640 g


5. Supported Operating Systems

  • VxWorks (68k, fully supported)

  • LynxOS, OS‑9, pSOS+, VRTX‑32

  • NetBSD/mvme68k, OpenBSD/mvme68k

  • Custom embedded real‑time OS

6. Compatibility

  • Pin‑compatible with MVME162 series (‑001/‑002/‑003/‑010/‑010A/‑043)

  • Software‑compatible with MVME162 family (68040/68LC040)

  • MVME712 series transition module compatible

  • Not compatible with MVME1600/PowerPC series

7. Ordering Information

  • Part Number: MVME162‑010A

  • Description: 6U VME SBC, MC68040 @25 MHz, 8 MB parity DRAM, no SCSI, no Ethernet, standard temp 0 °C~+55 °C, Rev A industrial upgrade, MVME712 compatible
