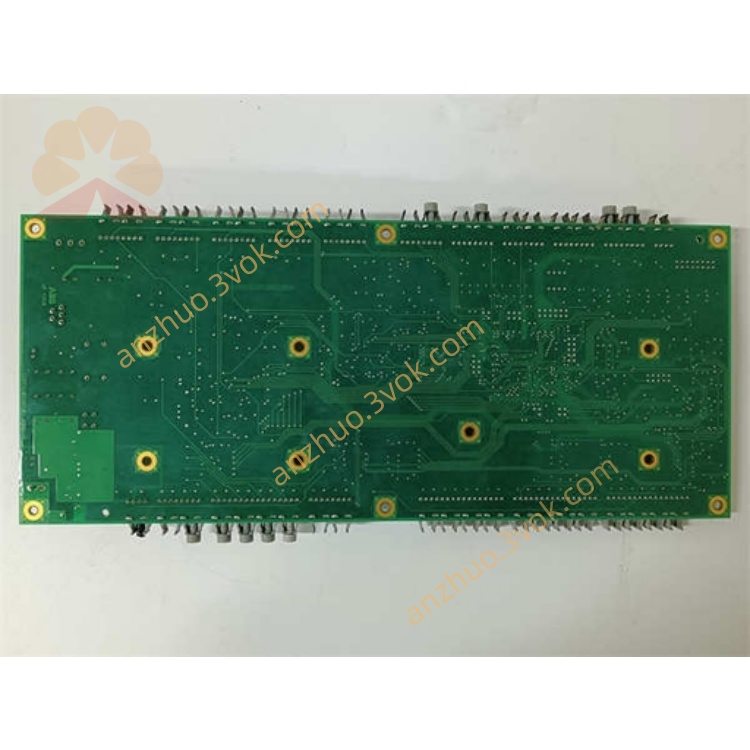

ABB UFC718AE101 (HIEE300936R0101 / HIEE410516P201)

Model: UFC718AE101; Order Number: HIEE300936R0101 (Complete Machine); Part Number: HIEE410516P201 (PCB / Backplane)

Type: ABB Advant/Ovation System Drive Power Supply / Interface Module, belonging to an older DCS core board card, commonly used in the power, metallurgy, and papermaking industries.

I. Basic Information

Brand: ABB (Swiss origin)

Series: UFC Series (Universal Field Controller)

Function positioning: Power supply + signal conditioning + interface board, providing power for on-site equipment and processing analog/digital signals, connecting DCS with on-site sensors/actuators.

II. Technical Parameters (Core)

1. Power Supply

Input: 24 V DC (18–30 V)

Power Consumption: Approximately 15 W

2. Signal Processing

Analog Input AI: 4–8 channels (4–20 mA / 0–10 V, programmable)

Analog Output AO: 2–4 channels (4–20 mA)

Digital Input DI: 8 channels (24 V DC)

Digital Output DO: 8 channels (relays / transistors, 24 V DC)

Accuracy: Analog quantity ±0.1% FS

3. Communication

Interfaces: RS-485, Profibus-DP (some versions)

Protocols: Modbus RTU, Profibus-DP V0/V1

4. Environmental and Mechanical

Operating Temperature: -40 °C ~ +85 °C

Protection Grade: IP20 (in cabinet)

Dimensions (Width × Height × Depth): Approximately 130 × 70 × 32 mm

Weight: Approximately 0.3–0.5 kg

III. Model Description

UFC718AE101: Complete model (UFC = Universal Field Controller, 718 = Series, AE = Function Variant, 101 = Hardware Version)

HIEE300936R0101: Complete machine order number (includes motherboard + power supply + interface)

HIEE410516P201: PCB / Backplane Number (for repair and replacement)

IV. Typical Applications

Power: Thermal power plants / Hydropower plants DCS system I/O control

Metallurgy: Rolling mills, blast furnaces, continuous casting machines signal acquisition

Papermaking: Paper machine tension, speed, pressure control

Oil and Gas: Pump stations, compressor stations monitoring
