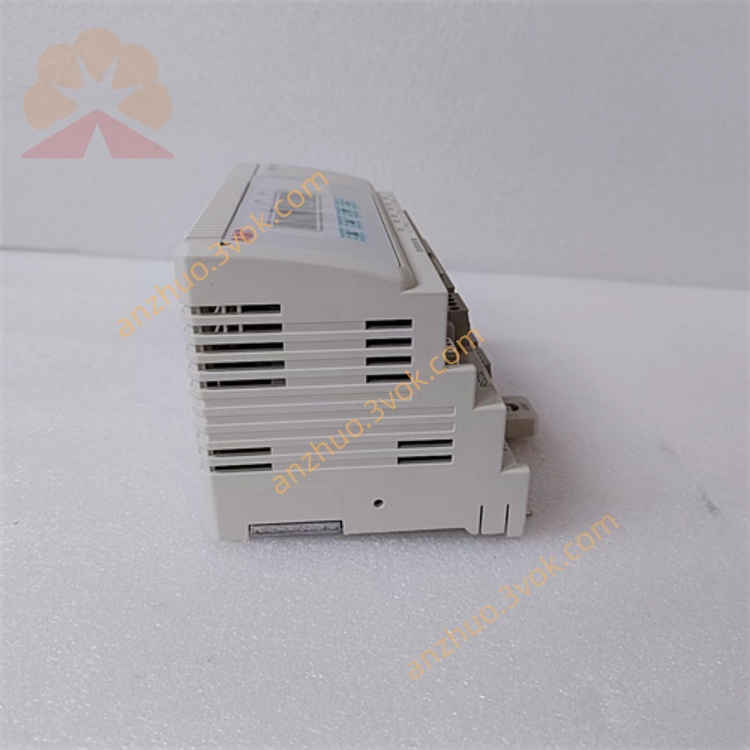

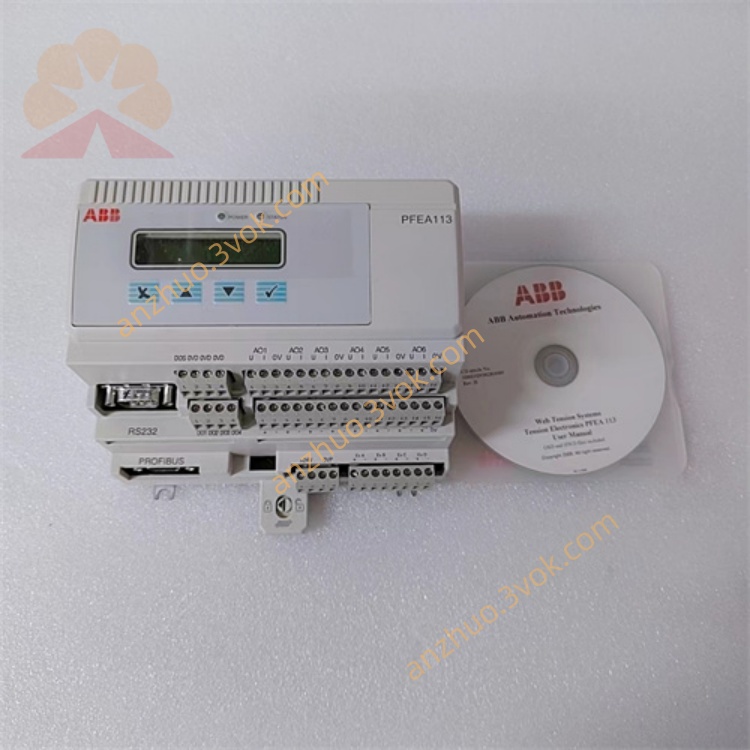

ABB PFEA113-20 (3BSE028144R0020)

Model: PFEA113-20

Order Number: 3BSE028144R0020

Type: DIN rail installation, High-performance sheet material tension controller

I. Core Technical Parameters (Chinese Version)

1. Power Supply

AC: 100~240 V AC, 45~65 Hz

DC: 24 V DC (18~36 V)

Maximum Power Consumption: 12 W

2. Sensor Channels (4 Channels)

Compatible: PFCL/PFTL/PFRL ABB Pressure Sensors

Excitation: 330Hz AC Excitation, 0.5A RMS

Measurement Accuracy: ±0.1% Full Scale

Response Time: <10 ms

Resolution: 16-bit High Precision ADC

3. Switching / Analog I/O

Analog Input AI: 2 channels (0~10V / 4~20mA)

Analog Output AO: 6 channels (0~10V / 4~20mA configurable)

Digital Input DI: 1 channel (remote zero adjustment, gain switching)

Digital Output DO: 4 channels Relay Alarm Output

4. Communication Protocols

Standard: PROFIBUS-DP

Optional: Modbus RTU (RS485), Profinet, EtherCAT

5. Mechanical and Environmental

Installation: Standard DIN Rail (IP20 Cabinet Installation)

Operating Temperature: -10℃ ~ +55℃

Storage: -40℃~70℃

Size: 225×160×80 mm

Weight: Approximately 2.0 kg

Certifications: CE, UL, RoHS

II. Core Product Functions

4 channels of tension measurement, support summation/difference calculation, compatible with multi-rollers and multiple workstations sheet materials

Built-in PID Closed-loop Tension Control, stable control of high-speed sheet materials

Angle compensation, digital filtering, dynamic gain switching

Full Self-Diagnosis: Sensor Break, Short Circuit, Overload, Communication Fault Alarm

LCD Chinese Display, Local Button Calibration, Parameter Reading and Writing

Parameter Backup and Restoration, Quick Reuse Configuration upon Module Replacement

III. Installation & Debugging Simplified Steps

Fixed with DIN Rail for the cabinet, separate strong and weak current wiring, away from the frequency converter interference

Connect in sequence: Power Supply → 4 Tension Sensors → Analog Input/Output (AI/AO) → Digital Input/Output (DI/DO) Relays → PROFIBUS Bus

Self-check upon startup, set tension unit (N/kg/lbs), sensor range sensitivity

Zero calibration (empty load) → Range calibration (standard weights)

Configure AO Output corresponding to tension and speed signals; set upper and lower limit alarms

Set PROFIBUS Station Address, connect to the upper computer for monitoring
