ABB DSQC679 3HAC028357-001 (English Version)

Basic Identification

Model: DSQC679

Part Number: 3HAC028357-001

Brand: ABB Robotics

Product Type: FlexPendant Teach Pendant Unit

Applicable System: ABB IRC5 Robot Controller

General Description

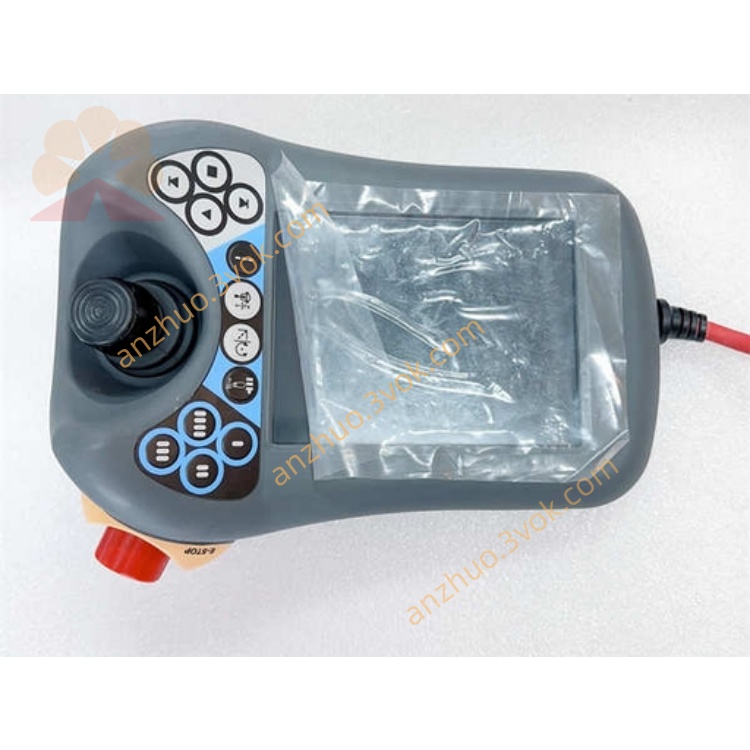

DSQC679 is the standard FlexPendant teach pendant for ABB IRC5 industrial robot systems. It is used for robot manual jogging, program teaching, parameter setting, program start/stop, fault diagnosis and on-site operation monitoring. Equipped with touch screen, emergency stop button, enabling device and operating keys, it is the core human-machine operation unit for ABB robot debugging and production operation.

Technical Specifications

Display: Color touch screen

Operation: Enabling three-position switch, emergency stop button, shortcut keys

Communication: Integrated bus communication with IRC5 controller

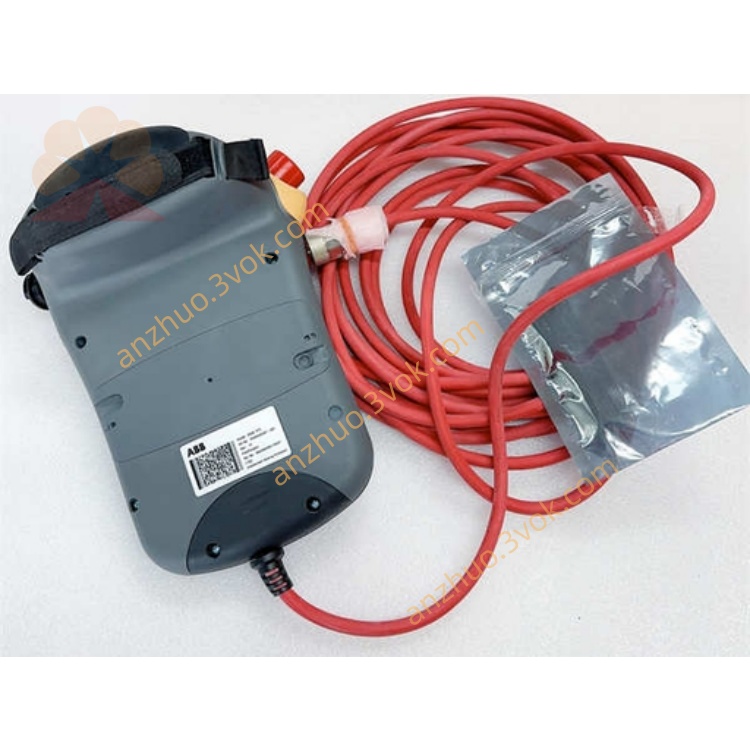

Cable: Dedicated connecting cable interface

Operating Temperature: 0 °C ~ +45 °C

Storage Temperature: -20 °C ~ +70 °C

Humidity: 5% ~ 95% RH, non-condensing

Protection Grade: Industrial handheld dustproof and anti-drop design

Key Features

Professional handheld teach pendant for ABB IRC5 robot.

Integrated E-stop and enabling switch for operation safety.

Touch screen + physical keys, easy programming and jog control.

Real-time robot status display, alarm and fault inquiry.

Industrial grade durable design for workshop harsh environment.

Application

ABB IRC5 series industrial robot teaching, programming, manual operation and maintenance control.
