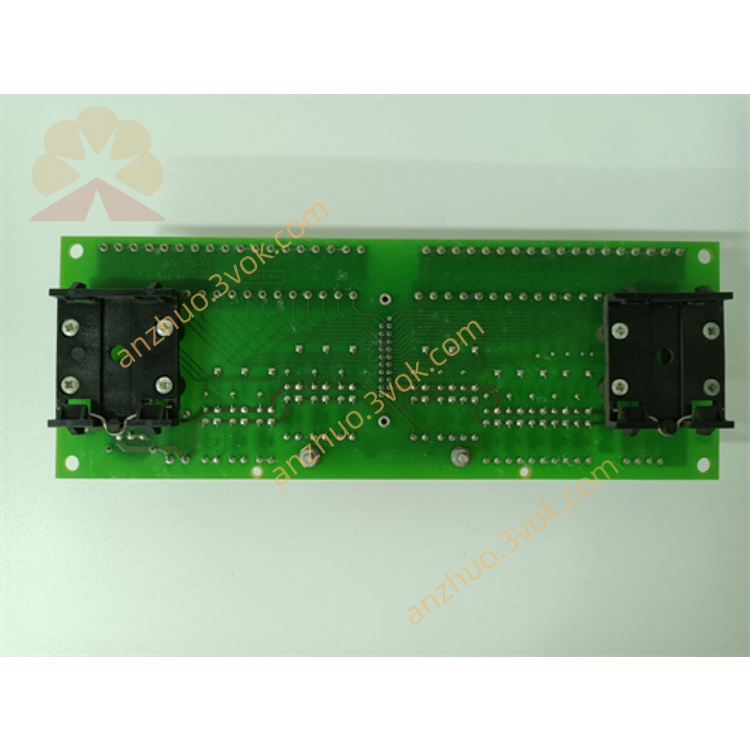

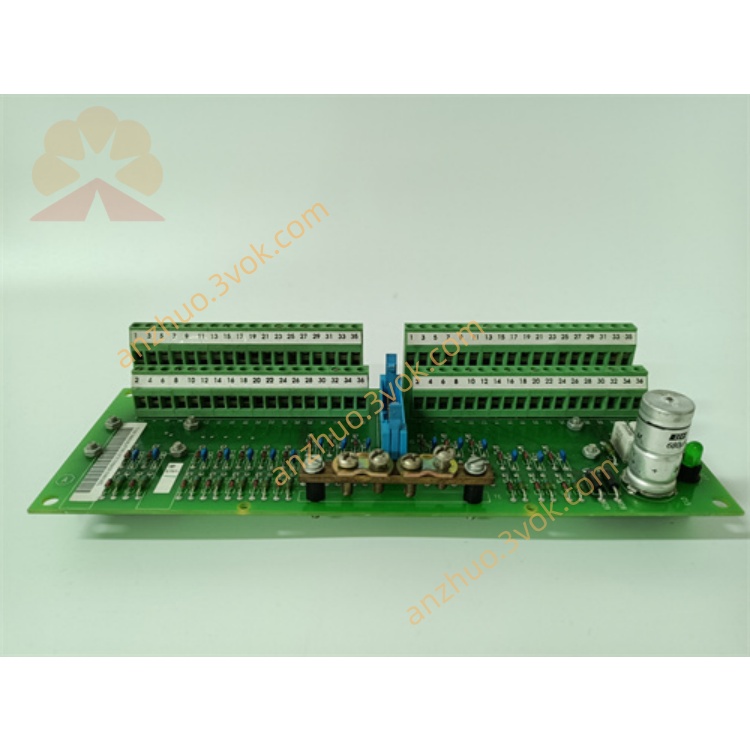

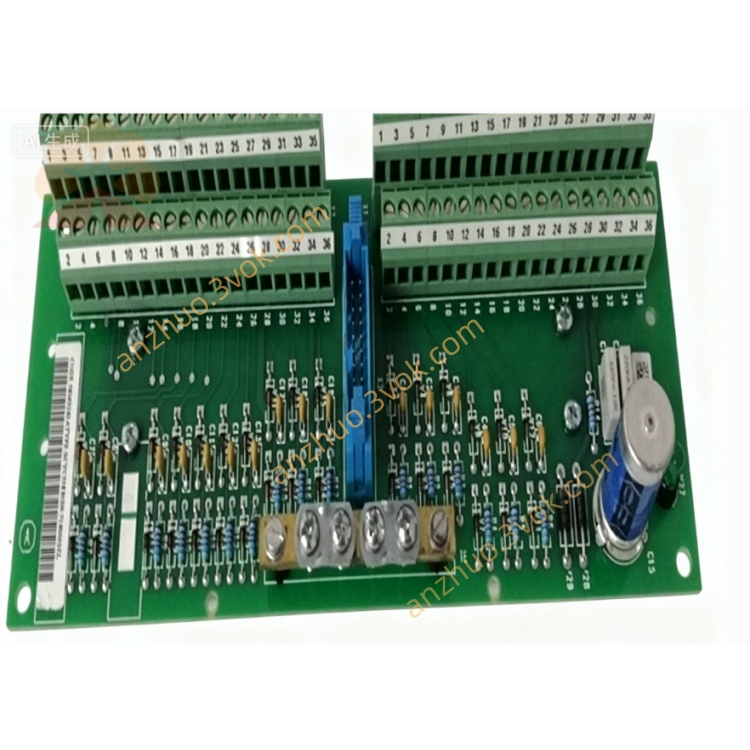

ABB SCYC55830 (English Version)

Basic Identification

• Model: SCYC55830

• Alternative Part No: 58063282A

• Brand: ABB

• Product Type: Trigger Pulse Board / High-speed Digital I/O Interface Board

• Applicable System: ABB System 800xA, Advant OCS, Excitation & Rectifier Control System

General Description

Technical Specifications

Electrical Parameters

• Supply Voltage: 24 VDC ±10%

• Working Current: ≤ 100 mA

• Power Consumption: ≤ 200 mA

I/O & Pulse Performance

• Channel Type: Opto-isolated digital input / trigger pulse output

• Isolation Voltage: 1000 V optical isolation

• Pulse Output Frequency: 1 Hz ~ 2 kHz configurable

• Input Response Time: < 1 μs high-speed pulse capture

Communication

• Onboard Bus: ABB dedicated backplane bus

• Supported Protocol: RS‑485, Modbus RTU

Environmental Specifications

• Operating Temperature: −20 °C ~ +70 °C

• Storage Temperature: −40 °C ~ +85 °C

• Relative Humidity: 5% ~ 95%, non-condensing

• Protection Class: IP20

Mechanical

• Mounting: Standard ABB rack / DIN rail

• Support Function: Hot swappable, online replacement

Key Features

1. High precision trigger pulse output for thyristor rectifier control.

2. High voltage optical isolation, strong anti-interference capability.

3. Ultra-fast response for pulse capture and interlock logic.

4. Industrial wide temperature design, suitable for power and heavy industry environments.

5. Supports hot swap and system redundant configuration.

Application Scope
