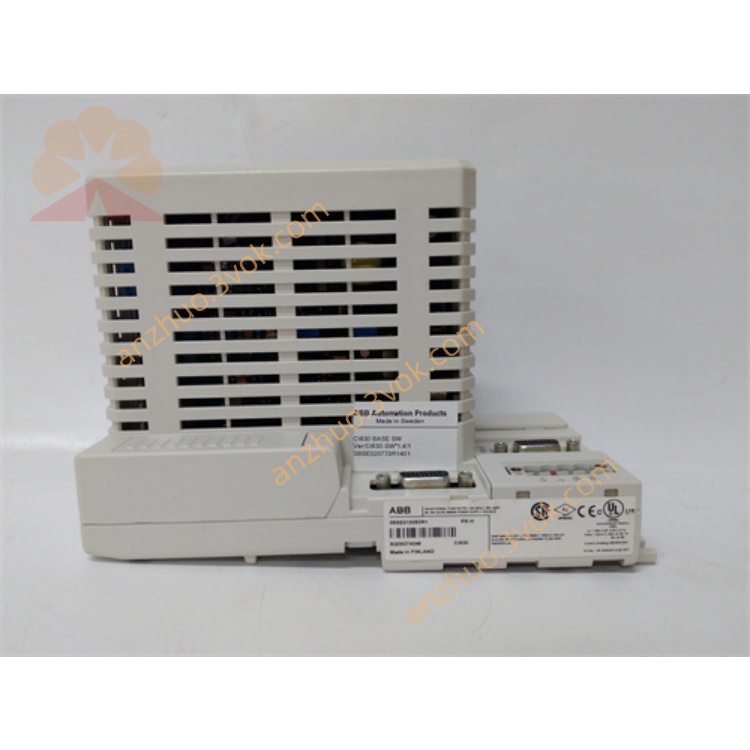

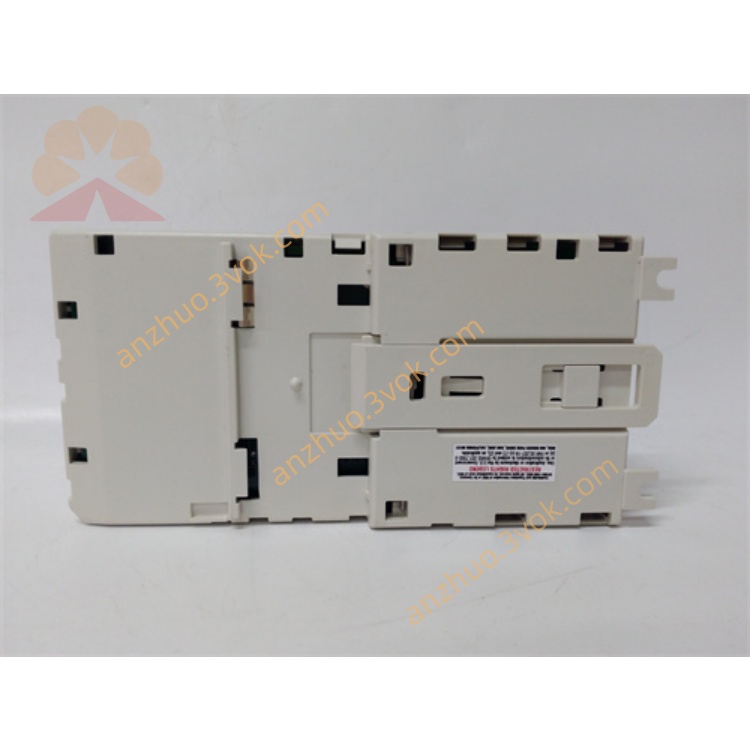

ABB CI830 3BSE013252R1

Basic Information

Model: CI830

Part Number: 3BSE013252R1

Manufacturer: ABB

Product Category: Remote I/O Communication Interface Module

Applicable System: ABB Advant OCS / AC800M / 800xA DCS

General Introduction

CI830 is a dedicated fieldbus communication interface module for connecting the controller with S100 Remote I/O stations.

It realizes high-speed data communication between AC800M controller and distributed S100 I/O, widely used in power, chemical, metallurgy, water treatment process control systems.

Technical Specifications

Communication: S100 Remote I/O Bus dedicated protocol

Interface: Dedicated bus terminal port

Supply Voltage: 24 VDC

Operating Temperature: 0 °C ~ +55 °C

Storage Temperature: −40 °C ~ +70 °C

Humidity: 5%～95% RH, non-condensing

Protection Level: IP20

Installation: Standard ABB rack mounting

Support Function: Hot swap, online diagnosis, redundant communication matching

Main Features

Special interface for S100 remote I/O system

High-speed stable transmission of analog and digital I/O signals

Support hot swappable, online replacement without stopping the system

Complete fault diagnosis, bus alarm and status indication

Good electromagnetic compatibility, suitable for harsh industrial environments

Compatibility

Controller: ABB AC800M series

Matching I/O: S100 series I/O modules (DSAI/DSDO/DSDI etc.)

Platform: 800xA, Advant OCS
