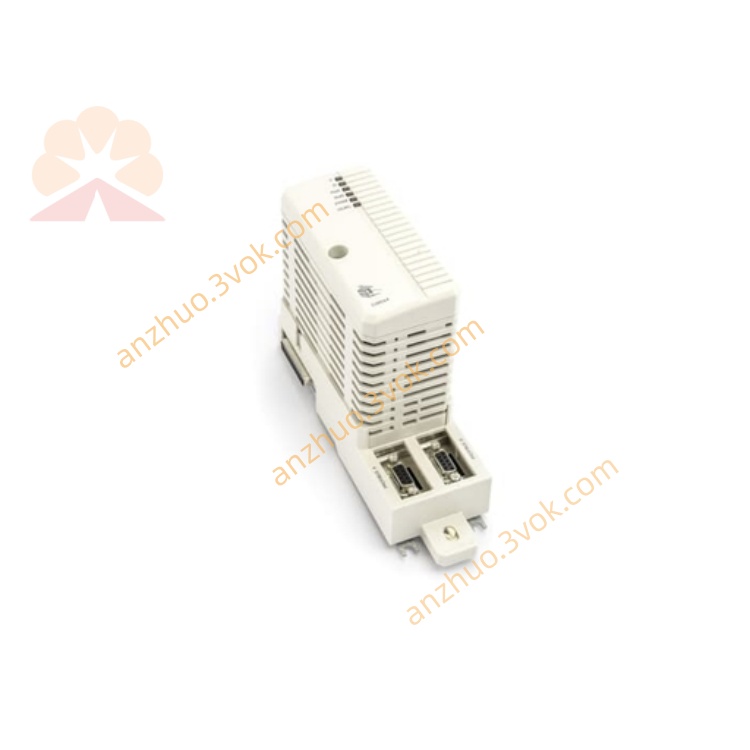

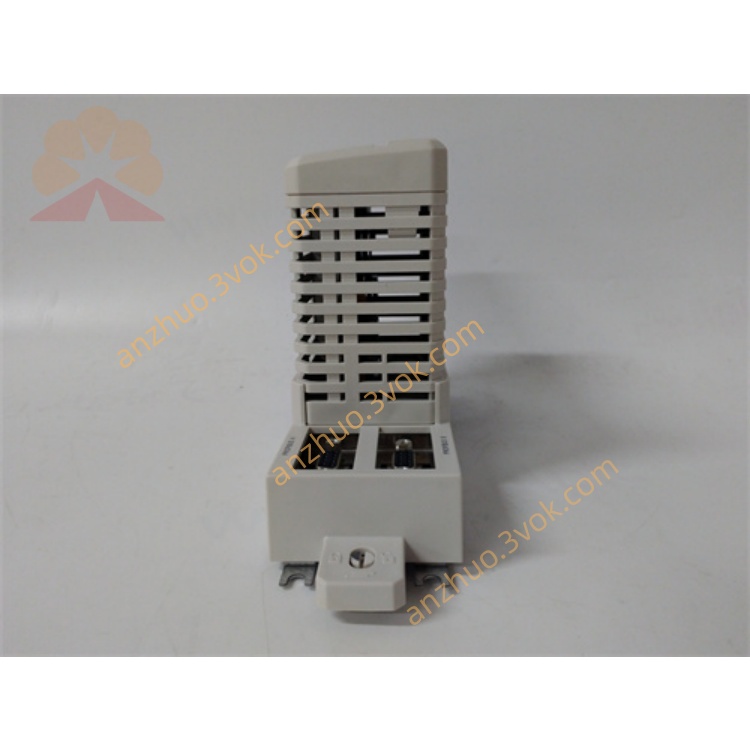

ABB CI854AK01 (3BSE030220R1) – PROFIBUS‑DP/V1 Communication Interface

Brand: ABB

Model: CI854AK01

Material No.: 3BSE030220R1

Type: PROFIBUS‑DP/V1 Communication Interface Module (for AC 800M, redundant)

1. General Description

CI854AK01 is a high‑performance PROFIBUS‑DP/V1 master interface for the ABB AC 800M controller (part of 800xA). It connects the controller to PROFIBUS‑DP networks with redundant PROFIBUS lines for high availability, supporting both DP‑V0 and DP‑V1 (including HART pass‑through).

Kit includes:

CI854 module

TP854 baseplate

2. Key Specifications

Communication

Protocol: PROFIBUS‑DP‑V0/V1 (master)

Ports: 2 × D‑sub 9‑pin (redundant PROFIBUS, RS‑485)

Baud rate: 9.6 kbit/s – 12 Mbit/s

Slaves: Up to 128 PROFIBUS DP slaves

Features: Redundancy, HCIR, HART pass‑through

Electrical

Supply: 24 VDC (±10%)

Current: ~250 mA

Power: ~6 W

Environmental

Operating temp: 0 °C to +55 °C

Storage temp: −40 °C to +70 °C

Humidity: 5–95 %RH, non‑condensing

Protection: IP20

Certifications: CE, UL, cUL

Mechanical

Dimensions (H×W×D): 185 × 59 × 127.5 mm

Weight: 0.59–0.7 kg

3. Main Features

Redundant PROFIBUS: Dual ports for line redundancy, no single point of failure.

DP‑V1 & HART: Supports DP‑V1 acyclic services and transparent HART communication.

Hot swap: Replaceable online without system shutdown.

Firmware upgrade: Via Control Builder M/Automation Builder.

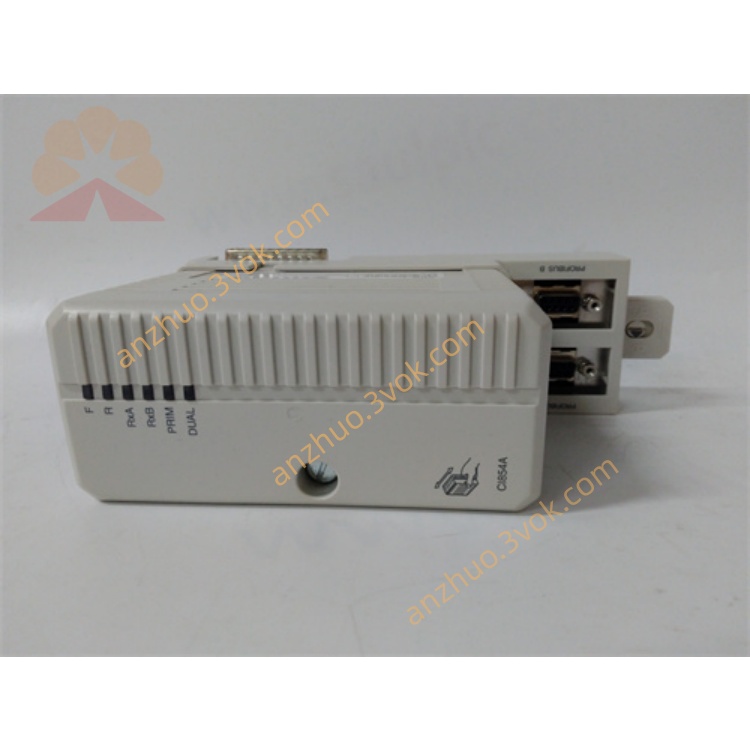

Diagnostics: LEDs for RUN, COM, ERR; detailed bus/device diagnostics.

4. Compatibility

Controller: AC 800M (all models)

System: 800xA, Compact Product Suite

Slaves: S800 I/O, S900 I/O, third‑party PROFIBUS DP devices

5. Installation & Wiring

Mount on AC 800M controller rack (DIN rail).

Connect 24 VDC to baseplate power terminal.

Connect PROFIBUS cables to D‑sub 9 ports; use standard PROFIBUS cable.

Terminate both ends of each PROFIBUS line (120 Ω).

Set PROFIBUS address/baud rate via engineering software.

6. Configuration

Use ABB Control Builder M or Automation Builder.

Configure as PROFIBUS DP master; enable redundancy.

Map I/O data, set baud rate, and configure slave parameters.

Enable HCIR and HART pass‑through as required.

7. Ordering Information

Order no.: 3BSE030220R1

Description: CI854AK01 PROFIBUS‑DP/V1 Interface (redundant), AC 800M
