1. General Description

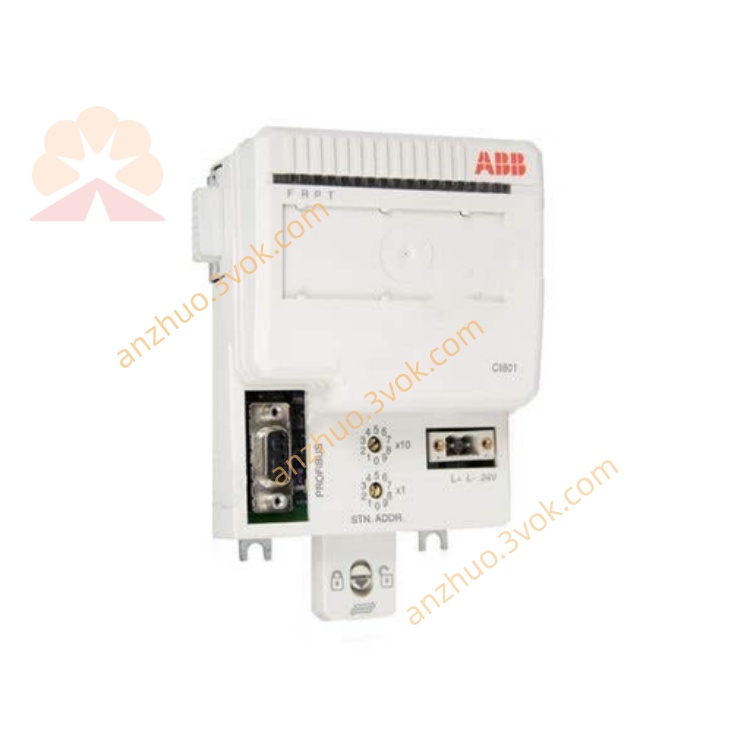

The CI801 is a high‑performance, configurable fieldbus communication interface (FCI) that connects the ABB S800 I/O system to a PROFIBUS DP‑V1 network. It acts as a PROFIBUS slave, enabling data exchange between S800 I/O modules and PROFIBUS DP masters (e.g., ABB AC 800M controllers, third‑party PLCs/DCS).

Key functions:

Signal processing and data acquisition from S800 I/O modules

Supervision and diagnostic data collection

Hot Configuration In Run (HCIR) – online I/O module configuration without stopping the system

HART pass‑through – transparent communication with HART‑compatible field devices

I/O module configuration and parameterization

Included in delivery:

1 × CI801 module

1 × power supply connector

1 × TB807 modulebus terminator

2. Technical Specifications

2.1 Communication

Protocol: PROFIBUS DP‑V1 (slave)

Baud rate: Up to 12 Mbit/s (12,000 kbit/s)

Connector: 1 × D‑sub 9‑pin (PROFIBUS)

Modulebus: S800 internal modulebus (backplane)

2.2 Electrical

Supply voltage: 24 VDC (nominal)

Current consumption: 140 mA (typical)

2.3 Environmental

Operating temperature: 0 °C to +55 °C

Storage temperature: −40 °C to +70 °C

Relative humidity: 5 % to 95 %, non‑condensing

Pollution degree: Degree 2 (IEC 60664‑1)

Corrosion protection: ISA‑S71.04 G3

Protection class: IP20 (EN 60529)

2.4 Mechanical

Dimensions (H × W × D): 136 × 85.8 × 58.5 mm

Weight: 0.34 kg

3. Compatibility

System: ABB 800xA, Compact Product Suite (S800 I/O)

Controller: AC 800M (as PROFIBUS DP master)

I/O modules: Most S800 I/O modules; excludes: DI830, DI831, DI885, AI880, DI880, DO880 (basic firmware)

4. Installation & Wiring

Mounting: Snap onto S800 I/O rack (DIN rail or panel mount)

Power: Connect 24 VDC to the power connector

PROFIBUS: Connect D‑sub 9‑pin to PROFIBUS DP network; use standard PROFIBUS cable

Termination: Ensure PROFIBUS line termination is correct (activated at both ends of the bus)

Modulebus: The CI801 connects automatically to the S800 backplane when inserted into the rack

5. Configuration

Use ABB Control Builder M (for AC 800M) or 800xA Engineering software

Configure as a PROFIBUS DP slave

Set PROFIBUS address, baud rate, and I/O data mapping

Enable HCIR and HART pass‑through as required

6. Operation & Maintenance

LED indicators:

RUN: Module power and operation status

COM: PROFIBUS communication activity

ERR: Fault indication (e.g., communication error, module fault)

Hot swap: Module can be replaced online without system shutdown

Firmware update: Supported via PROFIBUS or S800 modulebus

7. Safety & Standards

Certifications: CE, UL, cUL

Compliance: EN 61000‑6‑2 (EMC), EN 61158 (PROFIBUS)

8. Ordering Information

Order no.: 3BSE022366R1

Description: CI801 PROFIBUS DP‑V1 Communication Interface, S800 I/O
