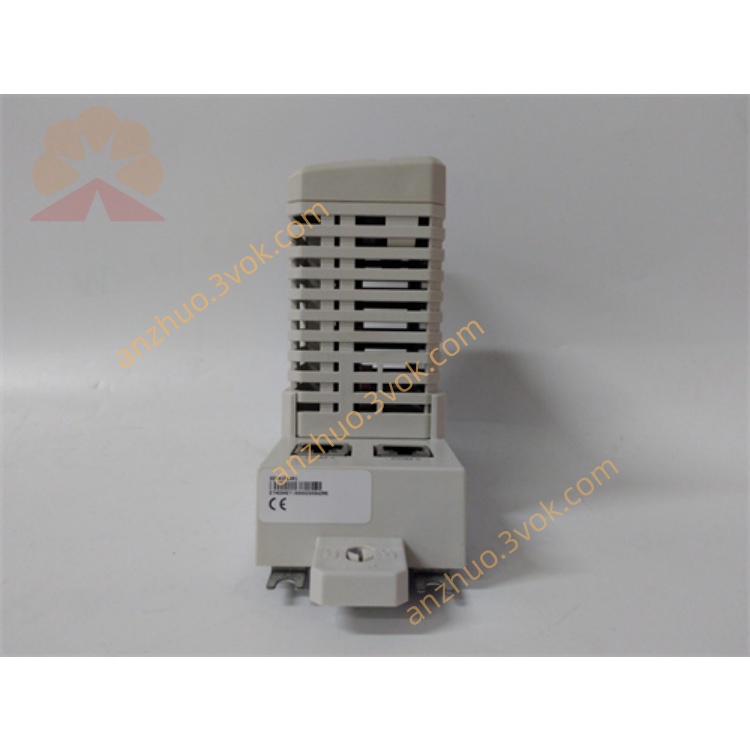

ABB CI857K01 (3BSE018144R1) Product Information

Model: CI857K01

Material No.: 3BSE018144R1

Brand: ABB

Type: INSUM Ethernet Communication Interface Module (for AC 800M System)

# Core Parameters

Communication Protocol: INSUM (based on TCP/IP)

Network Port: Dual RJ45, 10/100 Mbps adaptive

Function: Connect AC 800M controller and ABB INSUM intelligent motor control units (e.g., M10x, M200)

Power Supply: 24 VDC, typical 150 mA

Operating Temperature: 0°C ~ +55°C

Dimensions (Width × Height × Depth): Approx. 60 × 99 × 106 mm; Weight: Approx. 0.63 kg

Kit Includes: CI857 Module + TP857 Base

# Main Features

Specially designed for Ethernet communication between AC 800M and ABB intelligent motor controllers (INSUM series)

Supports redundant network configuration to improve system reliability

Supports hot swapping; online replacement does not affect system operation

Built-in processor and flash memory, supporting online firmware upgrade

Suitable for scenarios with massive motor control such as power plants, metallurgy and water treatment
