Core Parameters

Communication Protocol: Modbus TCP (Master/Slave compatible)

Network Port: Dual RJ45

Ch1: 10/100 Mbps, Full Duplex

Ch2: 10 Mbps, Half Duplex

Connection Capacity: Up to 8 Masters and 70 Slaves (total for two channels)

Power Supply: 24 VDC, Typical 160 mA

Operating Temperature: 0°C ~ +55°C

Ingress Protection Rating: IP20

Dimensions (W × H × D): Approx. 60 × 99 × 106 mm; Weight: Approx. 300 g

Main Features

Applied for communication between AC 800M controller and third-party Ethernet devices (PLC, instruments, DCS)

Supports redundant configuration and hot swapping to improve system reliability

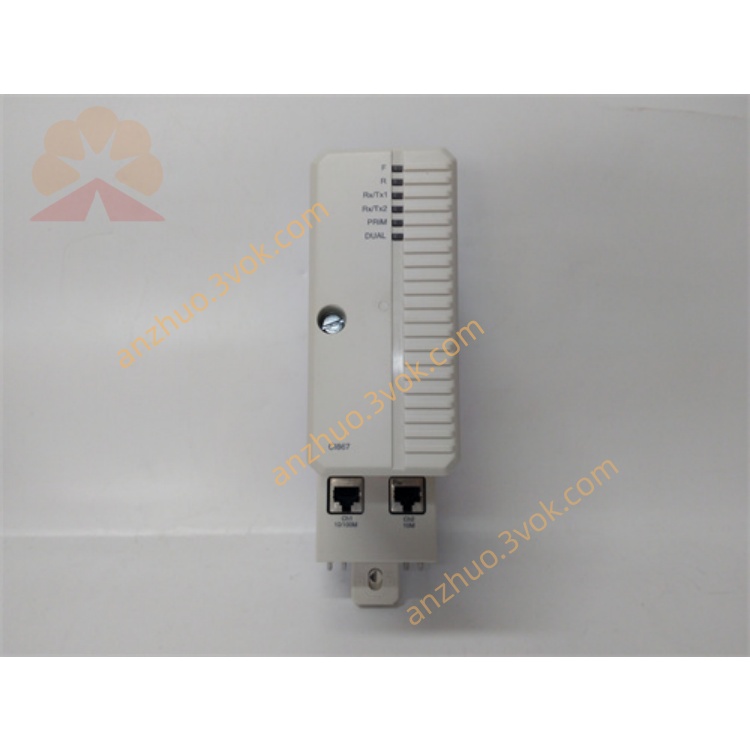

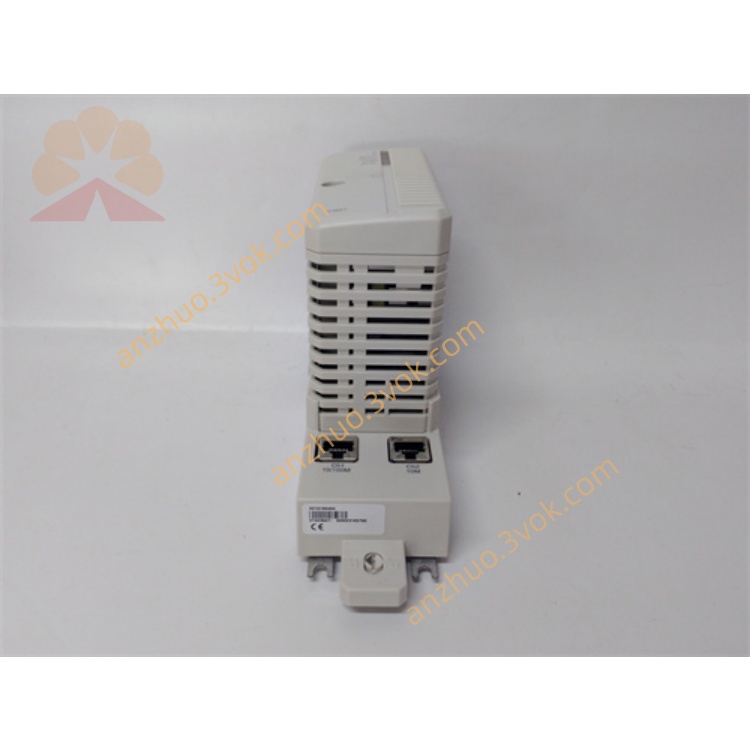

Kit Includes: CI867 Communication Module + TP867 Base
