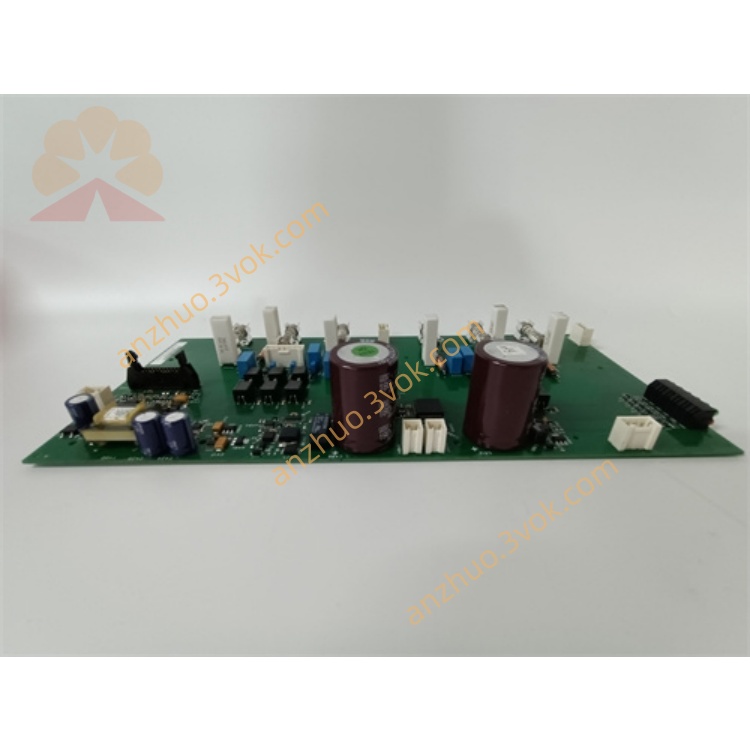

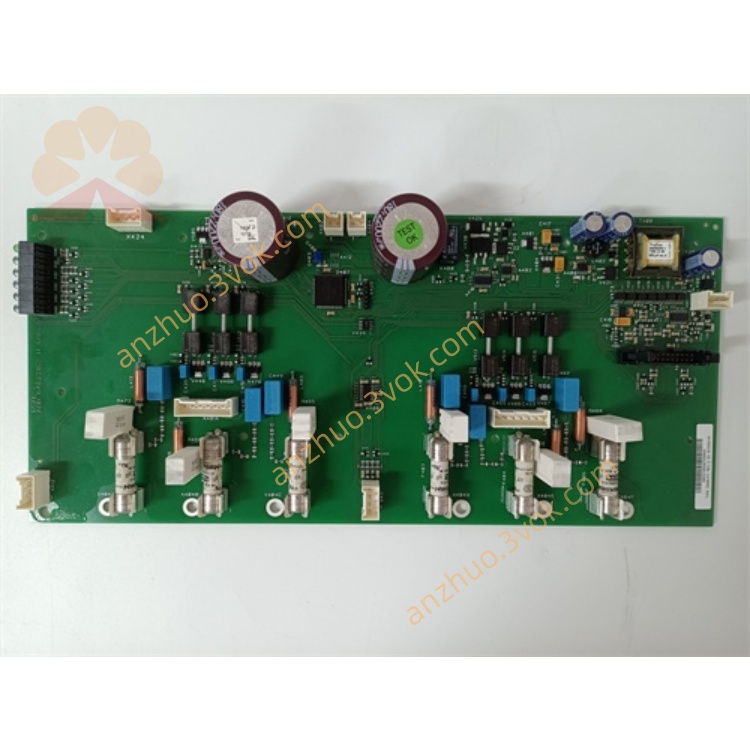

DSAB-01C
DSAB-01C / 64630199 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Thyristor Trigger & Pulse Driver Board (Power Electronic Series)
Part Number Combination: DSAB-01C (Module Assembly), 64630199 (Official Factory Part Number)
Application: High-power rectifier unit, inverter equipment, wind power converter, industrial power regulating system, thyristor pulse triggering and power decoupling control
Description
DSAB-01C / 64630199 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Thyristor Trigger & Pulse Driver Board (Power Electronic Series)
Part Number Combination: DSAB-01C (Module Assembly), 64630199 (Official Factory Part Number)
Application: High-power rectifier unit, inverter equipment, wind power converter, industrial power regulating system, thyristor pulse triggering and power decoupling control
1. DSAB-01C Technical Parameters
Functional Type: High-speed Thyristor Trigger & Drive Control Board
Supply Voltage: 12~24 VDC Industrial Auxiliary Power
Max Input Current: ≤ 4.00 A @24VDC
Total Power Dissipation: ≤ 96.00 W
Trigger Frequency: Up to 1 MHz High-speed Trigger Pulse
Input Resistance: 1 kΩ Standard Sampling Resistance
Signal Interface: Pulse Trigger Interface & RS485 Communication Port
Isolation Voltage: 1500 Vrms Galvanic Isolation
Working Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. Internal Circuit & Function Description
Core Function: Thyristor pulse triggering, power device decoupling, high-frequency signal driving and power loop protection
Signal Processing: High-speed pulse shaping, trigger signal amplification, sampling signal filtering and waveform optimization
Power Decoupling: Built-in high-performance diode decoupling circuit to avoid short-circuit impact between parallel power units
Anti-interference: Industrial EMI&EMC high-frequency suppression circuit, resistant to strong electromagnetic interference in power cabinet
Protection Mode: Overcurrent, overvoltage, pulse surge and reverse polarity protection
Structure: Compact industrial drive board, high-temperature resistant PCB, conformal coating anti-corrosion treatment
3. Usage Instructions
Installation: Fixed bolt mounting inside power cabinet; keep vertical installation and reserved heat dissipation space.
Wiring: Use high-temperature resistant insulated wires; separate strong current power lines and weak current signal lines strictly.
Debugging: Test pulse output amplitude and trigger synchronization; calibrate trigger delay time via upper computer.
Operation: Observe trigger status indicator; monitor pulse frequency and power device operating state in real time.
Maintenance: Regularly clean dust on power circuit; check bolt fastening and line aging every six months.
4. Important Precautions
Do not install in humid, condensed water, dusty and corrosive gas environments.
Keep away from high-power inductive loads to avoid pulse signal distortion.
Cut off high voltage and auxiliary power before disassembly, wiring and maintenance.
Prohibit over-frequency triggering and over-voltage input to prevent internal drive chip burnout.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure air circulation for heat dissipation to prevent high-temperature thermal drift of trigger pulse.
Unauthorized disassembly and modification of power circuit are strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Bolt Fixed Mount
