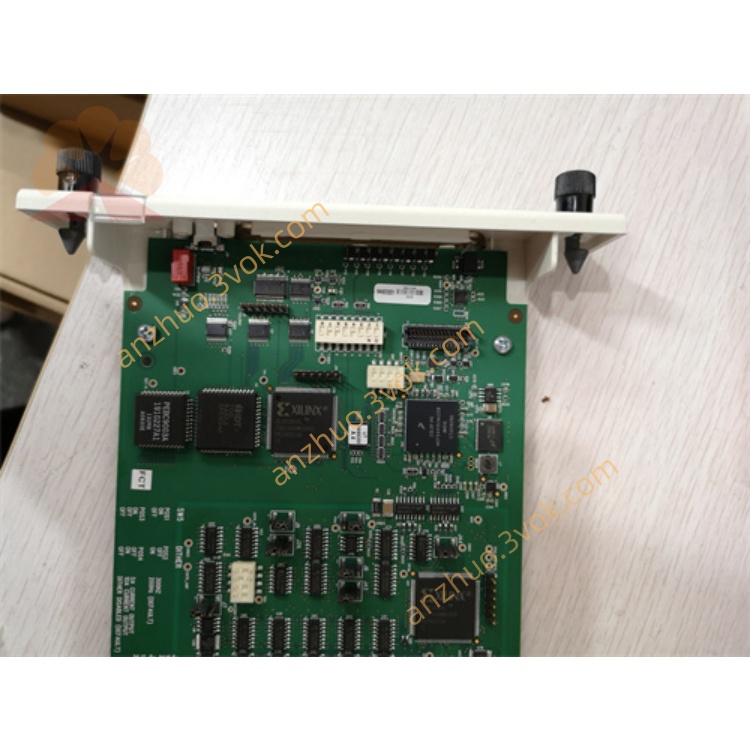

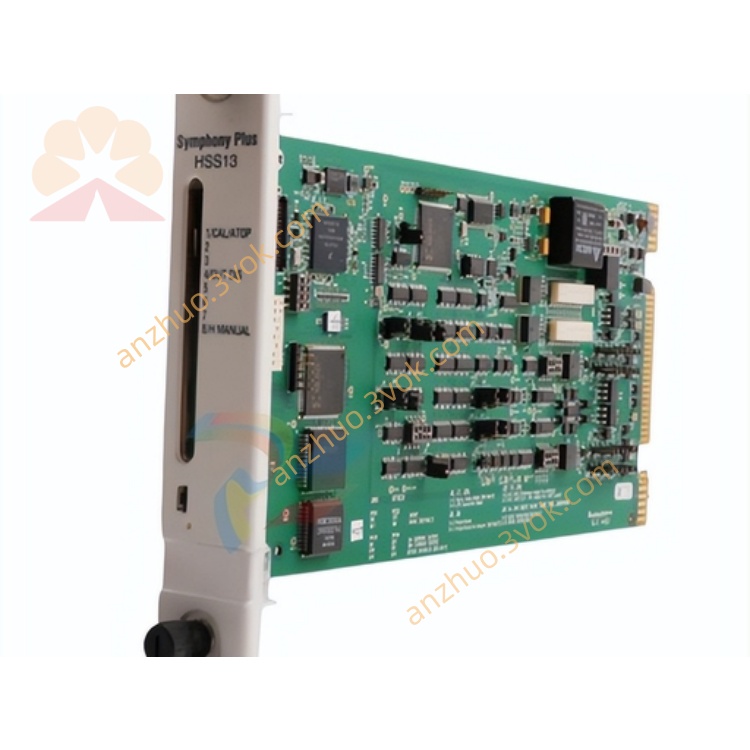

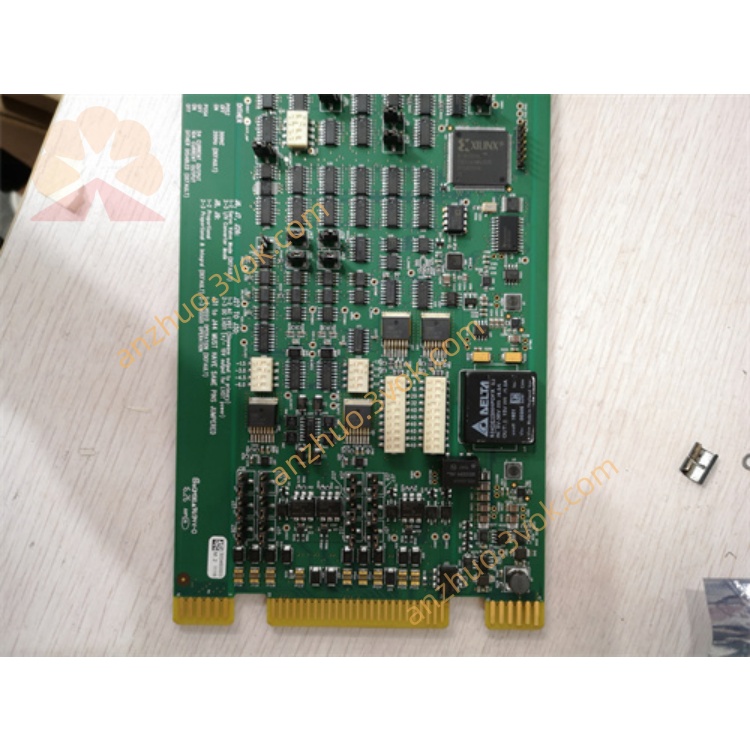

SPHSS13
SPHSS13 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Hydraulic Servo Control Module (Symphony Plus Series)
Part Number Combination: SPHSS13 (Module Assembly)
Application: Steam turbine control system, hydraulic actuator regulation, power plant servo position control, redundant LVDT signal acquisition
Description
SPHSS13 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Hydraulic Servo Control Module (Symphony Plus Series)
Part Number Combination: SPHSS13 (Module Assembly)
Application: Steam turbine control system, hydraulic actuator regulation, power plant servo position control, redundant LVDT signal acquisition
1. SPHSS13 Technical Parameters
Control Mode: PI Control & P-Only Control Switchable Algorithm
Sensor Interface: Redundant AC/DC LVDT Position Sensor
Coil Configuration: Dual Redundant Servo Coil Driving Channel
Input Power: 24 VDC Auxiliary Power Supply
Signal Resolution: High-precision 16-bit Position Acquisition
Response Speed: High-speed Dynamic Servo Response ≤ 5ms
Communication Bus: Symphony Harmony Rack Backplane Bus
Isolation Voltage: 2000 Vrms Galvanic Isolation
Working Temperature: -25℃ ~ +70℃
Storage Temperature: -40℃ ~ +85℃
Ambient Humidity: 5%~95% RH (Non-condensing)
Protection Grade: IP20
2. Internal Circuit & Function Description
Core Function: Hydraulic valve position closed-loop control, servo coil current regulation
Signal Processing: LVDT signal filtering, amplification and high-precision conversion
Redundancy Design: Dual redundant sensor and dual coil anti-failure structure
Anti-interference: Industrial EMI&EMC anti-vibration and anti-high-frequency interference circuit
Protection Mode: Overcurrent, overvoltage, short circuit and signal disconnection protection
Structure: Standard harmony rack card, conformal coating anti-corrosion treatment
3. Usage Instructions
Installation: Standard harmony rack slot mounting; keep horizontal installation inside control cabinet.
Wiring: Use shielded twisted-pair cables for LVDT sensor lines; separate servo power lines and signal lines.
Debugging: Calibrate zero position and stroke range before operation; set PI control parameters.
Operation: Monitor position feedback data; ensure hydraulic actuator operates smoothly without jitter.
Maintenance: Regularly clean surface dust; check sensor line tightness every six months.
4. Important Precautions
Do not install in humid, condensed water, dusty and corrosive gas environments.
Keep away from strong magnetic interference to avoid LVDT signal drift.
Cut off all power supply before wiring, disassembly and maintenance.
Prohibit over-range driving current to prevent servo coil burnout.
Avoid severe vibration and mechanical impact during transportation and installation.
Ensure cabinet ventilation to prevent temperature drift of position accuracy.
Unauthorized disassembly of internal components is strictly prohibited.
5. General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Harmony Rack Slot Mount
