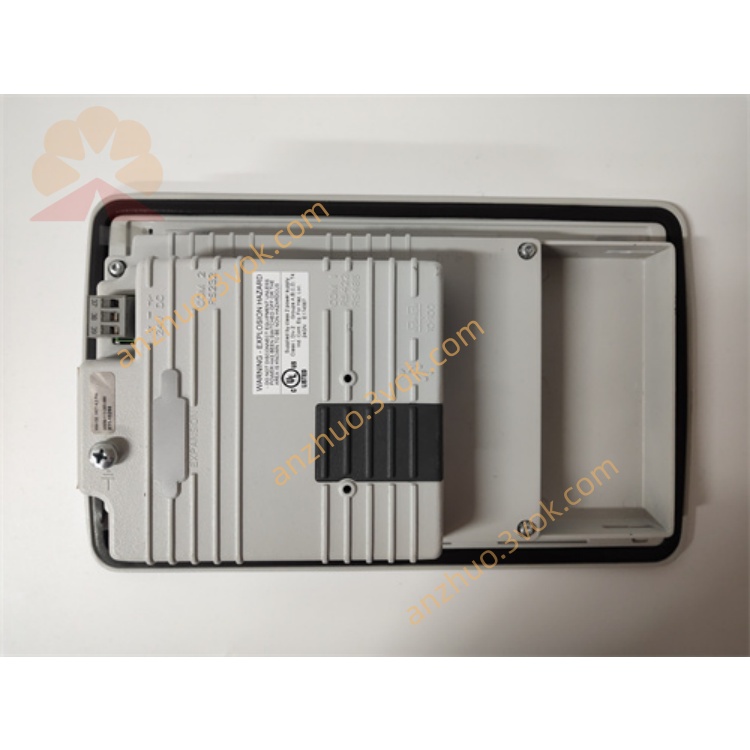

PP826 3BSE042244R1
PP826 / 3BSE042244R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Industrial TFT Touch Screen Panel (Panel 800 Series)
Part Number Combination: PP826 (HMI Assembly), 3BSE042244R1 (Official Part Number)
Application: Industrial automation control system, power plant monitoring, process industry human-machine interaction
Description
PP826 / 3BSE042244R1 English Technical Parameters & Usage Instructions & Precautions
Basic Information
Manufacturer: ABB
Product Type: Industrial TFT Touch Screen Panel (Panel 800 Series)
Part Number Combination: PP826 (HMI Assembly), 3BSE042244R1 (Official Part Number)
Application: Industrial automation control system, power plant monitoring, process industry human-machine interaction
1. PP826 HMI Operator Panel
Display Type: 4.3 inch TFT-LCD Color Screen
Resolution: 480 × 272 Pixels, True Color
Backlight Type: LED Backlight, Service Life ≥70000 Hours (25℃)
Touch Screen: Resistive Touch Panel, Industrial Grade
CPU Processor: 800MHz Industrial Embedded Processor
Memory: 256MB RAM, 2GB Built-in Flash Memory
Operating System: Windows Embedded CE 6.0
Communication Interface: Ethernet, RS232, RS485, USB 2.0 Port
Communication Protocol: Modbus TCP, Modbus RTU, Profibus
Working Voltage: 24 VDC (18~32 VDC)
Rated Current: 0.35 A (Normal), Max 0.80 A
Operating Temperature: -20℃ ~ +60℃ (Vertical Installation)
Protection Grade: Front IP65, Rear IP20
2. 3BSE042244R1 Control Board
Function: Built-in main control circuit, signal processing, data storage and communication management
Anti-interference: Industrial EMI & EMC anti-interference suppression design
Insulation Strength: 2000 Vrms Isolation Protection
Structure: Compact integrated circuit layout, anti-shock reinforcement
3. Usage Instructions
Installation: Adopt panel embedded installation; keep vertical installation, avoid tilted and upside-down mounting.
Wiring: Use shielded cables for signal lines; separate strong current and weak current wiring to avoid interference.
Debugging: Complete program download and configuration via ABB Panel Builder software.
Operation: Operate with finger or soft industrial stylus; prohibit sharp hard objects touching the screen.
Maintenance: Clean the panel surface with dry soft cloth regularly; do not use corrosive liquid.
4. Important Precautions
Do not install in environments with heavy dust, moisture, corrosive gas or strong electromagnetic interference.
Maintain stable 24VDC power supply; overvoltage and surge current are strictly forbidden.
Cut off the power supply before wiring, disassembly and daily maintenance.
Avoid severe mechanical collision and strong vibration during transportation and installation.
Keep rear ventilation smooth to prevent overheating and component aging.
Non-professional personnel are not allowed to disassemble the internal circuit board.
General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Panel Mount
