PP845 3BSE042235R1
Basic Information
Manufacturer: ABB
Product Type: Industrial HMI Touch Screen Panel
Part Number Combination: PP845 (HMI Assembly), 3BSE042235R1 (Official Part Number)
Application: Industrial automation control room, power plant monitoring, process industry human-machine interaction
Description
Basic Information
Manufacturer: ABB
Product Type: Industrial HMI Touch Screen Panel
Part Number Combination: PP845 (HMI Assembly), 3BSE042235R1 (Official Part Number)
Application: Industrial automation control room, power plant monitoring, process industry human-machine interaction
1. PP845 HMI Operator Panel
Display Type: 10.4 inch TFT-LCD Color Screen
Resolution: 800 × 600 Pixels, 64K Colors
Backlight Type: CCFL Backlight, Service Life ≥50000 Hours (25℃)
Touch Screen: Resistive Touch Panel, Industrial Grade
CPU Processor: 1GHz Cortex-A9 High-performance Processor
Memory: 512MB RAM, 4GB Built-in Flash Memory
Operating System: Windows Embedded CE 7.0

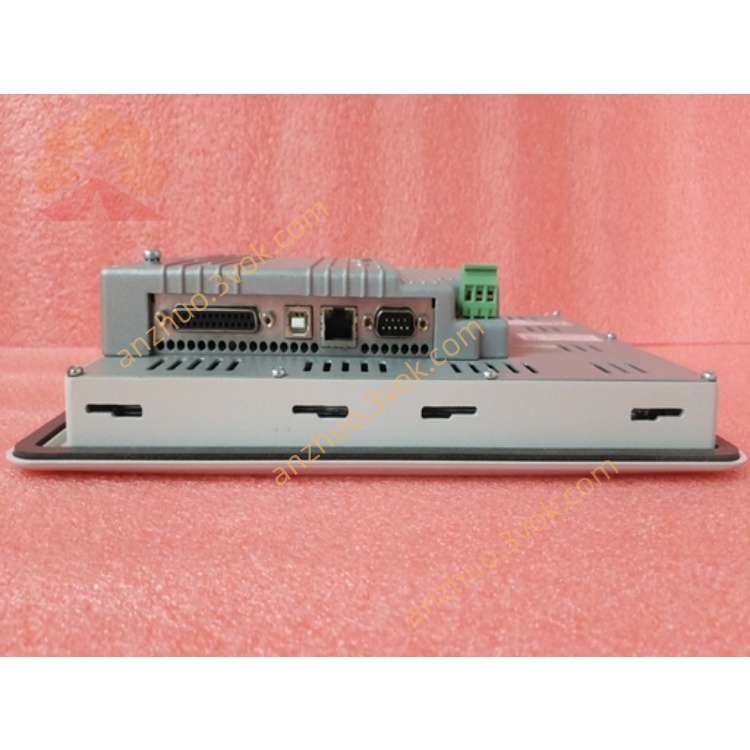

Communication Interface: Ethernet, RS232, RS485, USB Port
Communication Protocol: Modbus TCP, Modbus RTU, Profibus
Working Voltage: 24 VDC (20~30 VDC)
Rated Current: 0.5 A (Normal), Max 1.0 A
Operating Temperature: 0℃ ~ +50℃ (Vertical Installation)
Protection Grade: Front IP65, Rear IP20
2. 3BSE042235R1 Control Board
Function: Built-in Main Control Circuit, Data Storage and Logic Processing
Anti-interference: Industrial EMI Suppression Design
Insulation Strength: 2000 Vrms Isolation Protection
Structure: Integrated Onboard Circuit Layout
3. Usage Instructions
Installation: Adopt panel embedded installation, keep vertical installation, avoid horizontal and inverted installation.
Wiring: Use insulated shielded cable for signal wiring; separate strong current and weak current lines.
Debugging: Complete program configuration through ABB Panel Builder software before power-on operation.
Operation: Use finger or industrial dedicated touch pen; do not use sharp hard objects to touch the screen.
Maintenance: Regularly clean the panel surface with soft dry cloth; strictly prohibit corrosive liquid wiping.
4. Important Precautions
Do not install in high humidity, corrosive gas, flammable and explosive harsh environment.
Strictly follow the rated 24VDC power supply; overvoltage is forbidden to prevent module burnout.
Cut off the power supply before disassembly and wiring to avoid electric shock and circuit damage.
Avoid strong vibration and mechanical impact during transportation and installation.
Keep ventilation unobstructed around the panel to prevent overheating aging of internal components.
Non-professional personnel are prohibited from disassembling the internal circuit board privately.
General Technical Characteristics
Certification: CE, UL, RoHS
Installation Method: Panel Mount
Weight: Approximately 2.1 kg
Warranty Period: 12 Months
Get a Quote
