WOODWARD 5403-616 is an Atlas III+ series high-performance digital turbine controller for gas and steam turbines, providing precise control, flexible I/O, multi-communication and high reliability for power and industrial applications.

Description

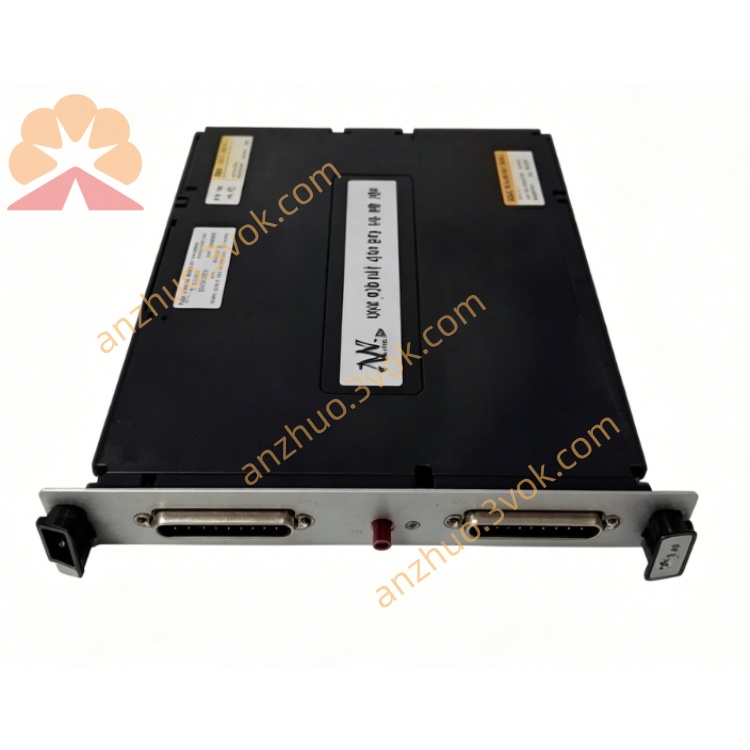

WOODWARD 5403-616

English Datasheet Specification

General Description

WOODWARD 5403-616 is a professional digital turbine controller, mainly applicable to speed regulation, load control and operational protection of various gas turbines and steam turbines. It adopts advanced microprocessor control technology, equipped with complete analog and digital input and output terminals, supports multiple mainstream industrial communication protocols, realizes accurate parameter collection, closed-loop regulation and remote data transmission. This controller has built-in perfect overspeed protection, fault alarm and self-diagnosis functions, features compact structure, strong anti-interference capability and wide ambient temperature adaptability, which can match various hydraulic actuators and field control systems, and is widely used in power generation, petrochemical, metallurgy and other industries to ensure safe, stable and efficient operation of turbine units.

Main Features

  1. High precision speed governing and stable load adjustment function

  2. Abundant configurable I/O ports, convenient for field signal connection

  3. Support remote parameter setting, real-time monitoring and data uploading

  4. Integrated multiple safety protection logic to realize reliable unit trip protection

  5. Complete fault detection and record function, easy for daily maintenance

  6. Industrial grade design, adaptable to harsh on-site working conditions

  7. Simple installation and debugging, strong compatibility with peripheral equipment

Technical Parameters

  • Model: 5403-616

  • Working Power Supply: 24VDC

  • Operating Temperature: -40℃ ~ +70℃

  • Analog Signal: 4-20mA standard industrial signal

  • Switch Signal: 24VDC isolated digital signal

  • Communication Mode: Standard industrial bus communication

  • Installation Type: Panel mounting

  • Applicable Objects: Gas turbine, steam turbine and related power driving equipment

Application Range

It is widely used in automatic control, operating condition monitoring and safety interlock protection of generator set turbines, industrial driving turbines, compressor matching turbines and other thermal power rotating equipment in electric power, petroleum, chemical industry and other fields.
