PRDRHP720SNZ-65

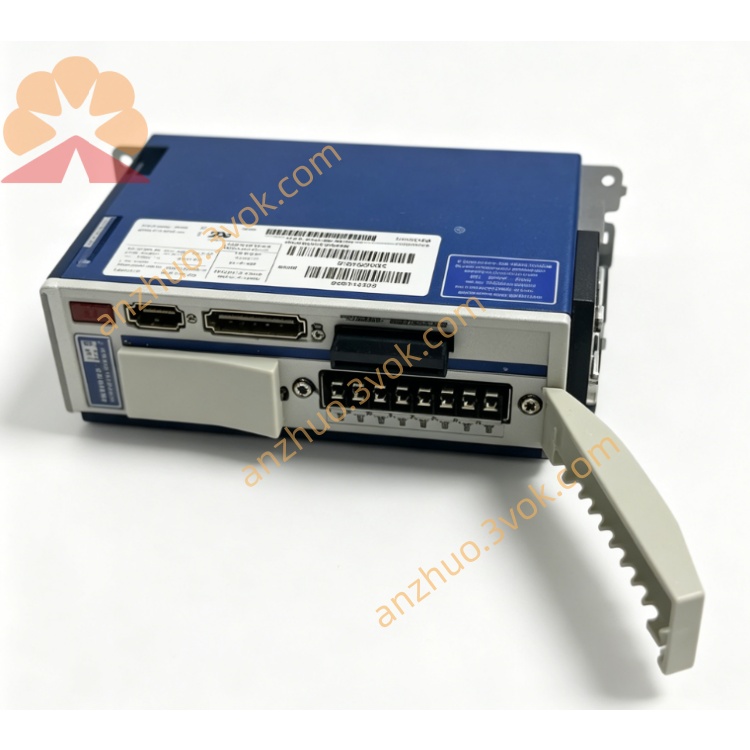

Kollmorgen SERVOSTAR CD High Power Digital Servo Drive

1. General Description

2. Model Definition

• PRD: Kollmorgen SERVOSTAR servo drive series

• RHP: High-performance high-power hardware platform

• 720: 70 A continuous current level

• S: Standard incremental encoder feedback

• N: Standard I/O configuration

• Z: Special hardware and firmware version

• 65: Custom factory configuration with enhanced environmental adaptability

3. Technical Specifications

Power Input

• Rated Voltage: 230 VAC single-phase / 400 VAC three-phase

• Frequency: 50 / 60 Hz

• Voltage Tolerance: ±10%

Output Performance

• Continuous Output Current: 70 Arms

• Peak Output Current: 200 Arms

• Matched Motor Power: 5.5 kW ~ 22 kW

• Output Frequency Range: 0 Hz ~ 400 Hz

Control and Feedback

• Control Modes: Torque / Speed / Position mode

• Standard Feedback: Incremental encoder

• Optional Feedback: Resolver

• Control Command: ±10 V analog signal, pulse and direction

• Communication Interface: RS-232 / RS-485

Protection Functions

• Over-current, over-voltage, under-voltage, over-temperature, short circuit and ground fault protection

• Built-in brake transistor, supports external regenerative braking resistor

• Complete industrial safety protection design

Environmental and Mechanical

• Protection Class: IP20

• Cooling Method: Forced air cooling with built-in fan

• Operating Temperature: 0 °C ~ +45 °C

• Storage Temperature: -20 °C ~ +70 °C

• Installation: Panel mounting and cabinet installation

4. Key Features

• High-current high-power output for heavy-duty servo applications

• Support both encoder and resolver feedback for harsh industrial environments

• Excellent dynamic response and stable speed regulation performance

• Multiple control modes to meet complex motion control requirements

• Strong anti-interference ability, suitable for heavy industrial sites

• Standard serial communication port for parameter setting and debugging

5. Compatible Motors

• Kollmorgen high-power AKM series servo motors

• Kollmorgen large Silverline H series servo motors

• Other 230/400 VAC industrial brushless servo motors within 22 kW

6. Application Fields

• CNC machining centers, lathes and milling machines

• Industrial robots and palletizing handling systems

• Automated assembly and production lines

• Printing, packaging, textile and plastic machinery

• All kinds of high-power high-precision motion control equipment
