PRD-PE205E0z-00

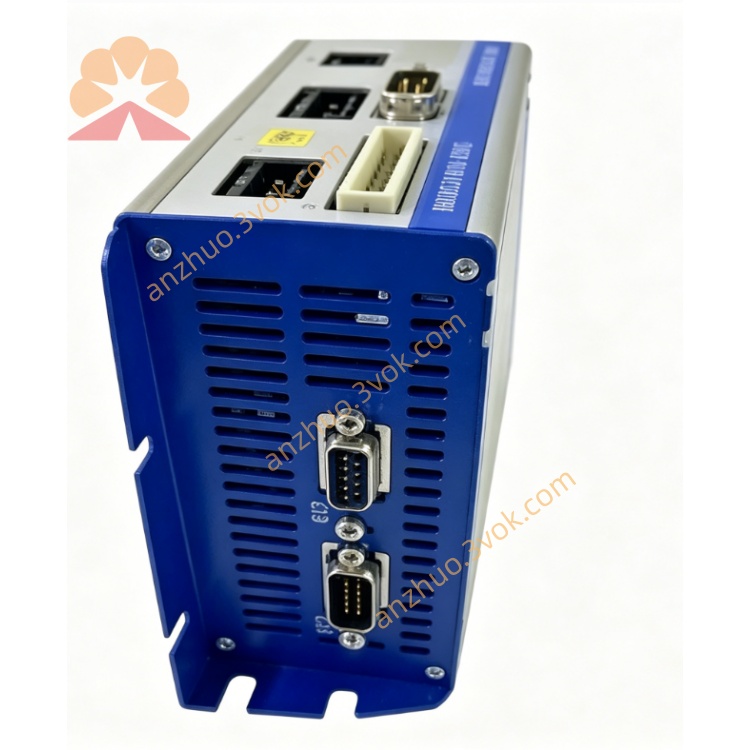

Kollmorgen SERVOSTAR PE Series Digital Servo Drive

1. General Description

2. Model Definition

• PRD: Kollmorgen SERVOSTAR PE servo drive series

• P: Compact Eurocard hardware platform

• E: 24 VDC dedicated power input

• 205: 24V system, 5 A continuous output current

• E: Enhanced feedback support

• 0z: Standard I/O and optimized firmware version

• 00: Standard factory configuration without customization

3. Technical Specifications

Power Input

• Rated Input Voltage: 24 VDC ±10%

• Undervoltage Protection: 20 VDC

• Overvoltage Protection: 30 VDC

Output Performance

• Continuous Output Current: 5 Arms

• Peak Output Current: 10 Arms

• Overload Capacity: 2 times short-time overload

• Matched Motor Power: Within 130 W

Control and Feedback

• Control Modes: Torque / Speed / Position mode

• Supported Feedback: Incremental encoder and resolver

• Control Command: ±10 V analog signal, pulse and direction

• Communication Interface: RS-232 / RS-485

Protection Functions

• Over-current, over-voltage, under-voltage, over-temperature and short circuit protection

• Supports external regenerative braking resistor

• Complete industrial protection design

Environmental and Mechanical

• Protection Class: IP20

• Cooling Method: Passive heat dissipation, fanless

• Operating Temperature: 0 °C ~ +45 °C

• Storage Temperature: -20 °C ~ +70 °C

• Installation: Standard cabinet mounting

4. Key Features

• Designed for 24 VDC system, suitable for battery and low-voltage industrial power supply

• Fanless passive cooling, compact size and easy installation

• Compatible with both encoder and resolver feedback

• Optimized firmware for stable low-speed operation

• Multiple control modes to meet various motion requirements

• High stability, low noise and strong anti-interference performance

5. Compatible Motors

• Kollmorgen AKM series 24 VDC low-power servo motors

• Kollmorgen Silverline S series low-voltage brushless servo motors

• Other 24 VDC brushless servo motors within 130 W

6. Application Fields

• Automated guided vehicles and small mobile robots

• Medical devices and laboratory automation equipment

• Electronic production and precision assembly machinery

• Small handling positioning and sorting automation

• All kinds of 24 VDC low-voltage industrial control systems
