PRD-P310250E-55

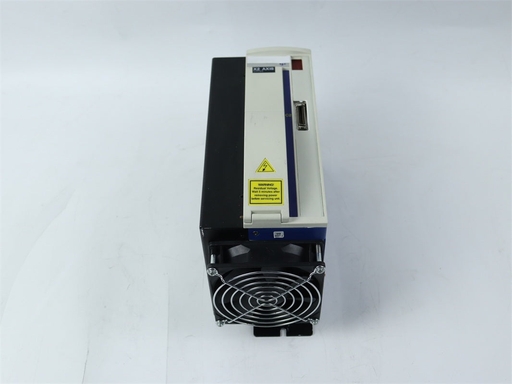

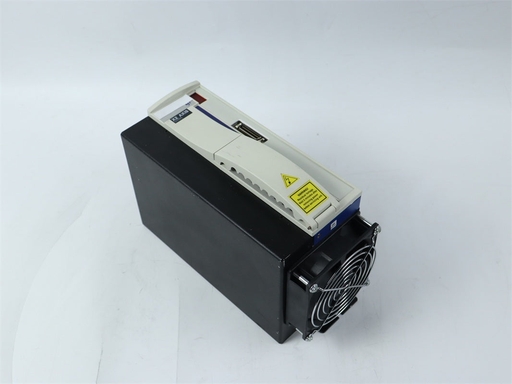

Kollmorgen SERVOSTAR SP Series 10A Compact Digital Servo Drive

1. General Description

2. Model Breakdown

• PRD: SERVOSTAR SP series (compact Eurocard)

• P: SP chassis (mid-size Eurocard)

• 30: 115/230 VAC universal voltage

• 10250: 10A continuous / 2500 m altitude rating

• E: Enhanced feedback (incremental encoder + resolver support)

• 55: Custom build, conformal coated PCB, extended I/O & environmental protection

3. Key Specifications

Power Input

• Voltage: 115 / 230 VAC, 1φ/3φ

• Frequency: 50/60 Hz

• Input current: 15 A (115 V) / 10 A (230 V)

• DC bus: 90 VDC (undervoltage) / 430 VDC (overvoltage)

Output

• Continuous: 10 Arms

• Peak: 20 Arms (2× overload, 500 ms)

• Rated power: 4.0 kVA

• Matched motor power: 3.0–4.0 kW (230 V)

Control & Feedback

• Modes: Torque / Speed / Position

• Feedback: Incremental encoder (standard) + resolver (E-option)

• Command: ±10 V analog, pulse/direction

• Communication: RS‑232/485 (no fieldbus)

Protection & Safety

• Overcurrent, overvoltage, undervoltage, overtemperature, short circuit, overload

• Regenerative braking (external resistor)

• Conformal coated PCB (55 build) for dust/humidity

Mechanical & Environmental

• Enclosure: IP20 (cabinet/Eurocard mount)

• Cooling: Forced air (integrated fan)

• Operating temp: 0 °C to +45 °C

• Storage temp: −20 °C to +70 °C

• Dimensions: 245 × 154 × 58 mm

• Weight: ~2.3 kg

4. Key Features

• 10A continuous / 20A peak for high-power, high-dynamic motors

• Universal 115/230 VAC 1φ/3φ input for global deployment

• E-option supports both encoder and resolver feedback

• 55 build with coated PCB and enhanced I/O for harsh environments

• Standard analog/pulse command + RS‑232/485 communication

• Compact Eurocard format for space‑saving cabinet layouts

5. Compatible Motors

• Kollmorgen AKM mid-power series (AKM4x / AKM5x, 3.0–4.0 kW)

• Kollmorgen Silverline H series (H‑6xxx / H‑8xxx)

• Other 115/230 VAC, 3.0–4.0 kW brushless servo motors (encoder/resolver)

6. Applications

• Medium CNC routers, milling machines, and machining centers

• Light‑to‑medium gantry systems, material handling, and conveyor systems

• Packaging, printing, and textile machinery

• General automation and OEM equipment

• Electronic assembly and test equipment

7. Notes

• Legacy product: SERVOSTAR SP is discontinued; replacement is AKD‑P010 (10 A class)

• Setup software: MOTIONLINK (legacy)
